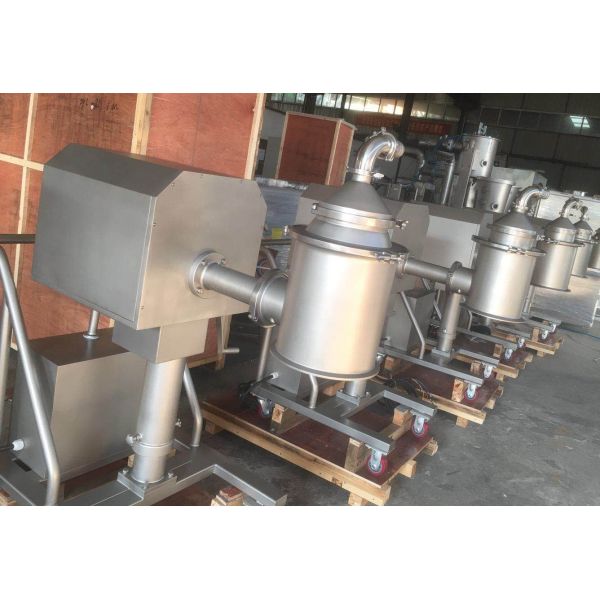

Rotor Mill Pharmaceutical Milling Equipment Straight Vertical Compact Structure
Rotor Mill Pharmaceutical Milling Equipment Straight Vertical Compact Structure
Rotor Mill Pharmaceutical Milling Equipment Straight Vertical Compact Structure
Rotor Mill Pharmaceutical Milling Equipment Straight Vertical Compact Structure
Specifications
Brand Name :
CQJG
Model Number :
ZLJ-125~ZLJ-250
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
20 SETS PER MONTH
Delivery Time :
30-60 DAYS
Packaging Details :
WOODEN CASES
Material :
SS304 or AISI316
Service :
engineer overseas services available
Description

Rotor Mill Pharmaceutical Milling Equipment Straight Vertical Compact Structure

Application:

Co-mill is specially designed for:

  • The homogenization of dry and wet products to a specified particle size.
  • Reduction of oversized particles to the desired size.
  • Milling of agglomerates back to the initial size.

Work principle:

The product is fed vertically down into the milling chamber through the feeding port. In the milling chamber the product is forced through the screen insert by a rotating impeller.

The rotor mill utilizes an under-drive providing a straight vertical product flow into and out of the milling chamber. The design makes the wet rotor mill ideally suitable for products with bad flow characteristics (e.g. wet products from high shear mixer granulator). The partial size of the homogenized product is dependent upon the shape and size of the holes of the screen insert. The product flow rate can be adjusted by varying the rotor speed.

Features:

  • Compact structure, wet mill and dry mill can be changed over quickly, running steady and easy operation.
  • Milling very fast with homogeneous finished products, there are various size of screens for option.
  • The milling height can be adjusted.
  • Easy movable with castors.

Parameters

Items Unit Model/specification
ZLJ-125 ZLJ-150 ZLJ-200 ZLJ-250 ZLJ-250+
Productive capacity Kg/h ＜200 200-500 500-1000 1000-2000 1500-3000
Motor power Kw 1.5 2.2 3 4 5.5
Speed Rpm 150-1450 150-1450 150-1450 150-1450 200-960
Overall dimension mm 1150*480*1300 1200*675*1300 1500*700*1350 1500*700*1350 1500*700*1350
Net weight Kg 150 220 270 300 350
