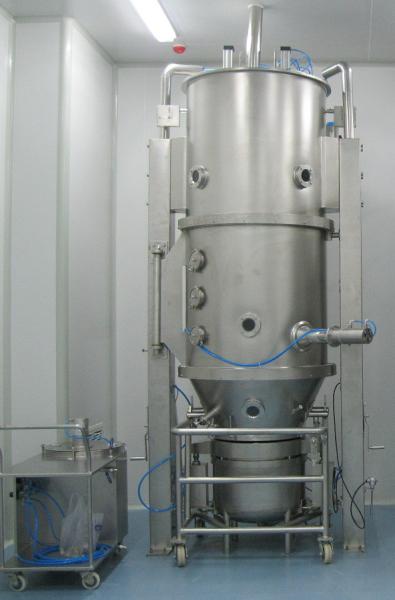

Auto Fluid Bed Processor Industrial Fluid Bed Dryers Pneumatically Operated
Auto Fluid Bed Processor Industrial Fluid Bed Dryers Pneumatically Operated
Auto Fluid Bed Processor Industrial Fluid Bed Dryers Pneumatically Operated
Auto Fluid Bed Processor Industrial Fluid Bed Dryers Pneumatically Operated
Specifications
Brand Name :
JINGGONG
Model Number :
FL-10~FL-500
Certification :
CE/ISO
Place of Origin :
CHONGQING, CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
10 SETS PER MONTH
Delivery Time :
60-90 DAYS
Packaging Details :
WOODEN CASES
Material :
AISI 316L or SUS304
Service :
overseas service available
Description

Auto Fluid Bed Processor Industrial Fluid Bed Dryers Pneumatically Operated

- Design confirming to cGMP
- Modular design.
- Uniform mixing, granulating &drying.
- Automatic pneumatic shaking system (telescopictype).
- Pneumatically operated inflatable silicon for sealing the product container from top & bottom and filter bag ring.
- Air Inlet filtration unit comprising of 10 micron coarse filter followed by 3 micron fine pre-filter & finally passed through 0.3micron -Hepa filter.
- Integrated filter bag housing chamber.
- On-line sampling device.
- Differential Pressure gauge/Pressure transmitter across filter bag/Hepa filter to monitor pressure drop.
- Infinitely variable control damper at exhaust for regulating air-flow.
- Solid flow monitor system.
- Fluidization air control through VFD/ Velocity sensor.
- Spray gun with height adjustment facility.
- Dehumidification system along with Hepa filter with digital pressure transmitter.
- Spray solution control system
- Spray mist control system.
- PLC based integrated process control system.
- Horizontal /Vertical Explosion relief opening.
- WlP system
- Exhaust filteration unit along with silencer.
- Ranges available from 5kgs to 500 kgs.

Parameters

Items Unit FL10 FL20 FL30 FL60 FL120 FL200 FL300 FL500
Material container volume L 50 75 100 240 420 670 1000 1500
Productive capacity Kg/batch 5-10 10-20 10-30 20-60 40-120 80-200 120-300 180-500
Saturated steam Pressure Mpa 0.4-0.6
Consumption Kg/h 70 100 100 140 240 420 480 520
Compressed air Pressure Mpa 0.4-0.6
Consumption M³/min 0.6 0.7 0.7 0.9 1.0 1.1 1.3 1.8
Induced draft fan power Kw 7.5 11 11 18.5 22 30 37 45
Overall dimension W mm 1800 2100 2300 2600 3000 3500 3800 4000
H 2530 3060 3060 3670 4370 4580 5160 5570
D ~700 ~800 ~800 ~1000 ~1100 ~1300 ~1500 ~1600
φ 550 750 800 1000 1200 1400 1600 1800
Φ1 180 225 225 250 300 390 390 500
