Specifications
Brand Name :
URBAN
Model Number :
UB2-250
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1
Price :
USD12000-22000 SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100
Delivery Time :
25-30days
Packaging Details :
wooden box packing
Application :
Chemical, Commodity, Medical, Textiles
Type :
Other, Wet Tissue Packing Machine
Automatic Grade :
Automatic
Packaging Type :
Bags, Film
Function :
Folding,Cutting,Sealing, Wrapping, Printing
Packing speed :
60-120 bag/min
Description

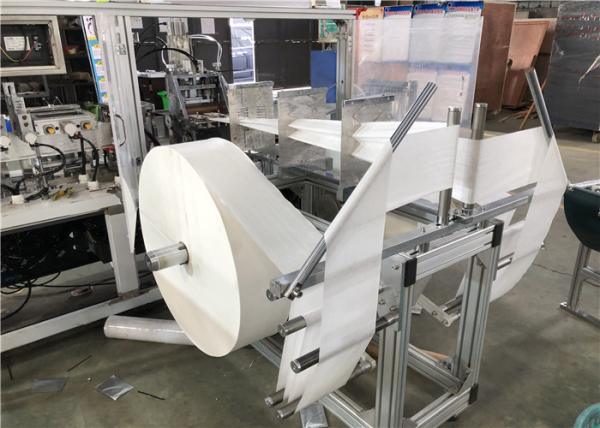

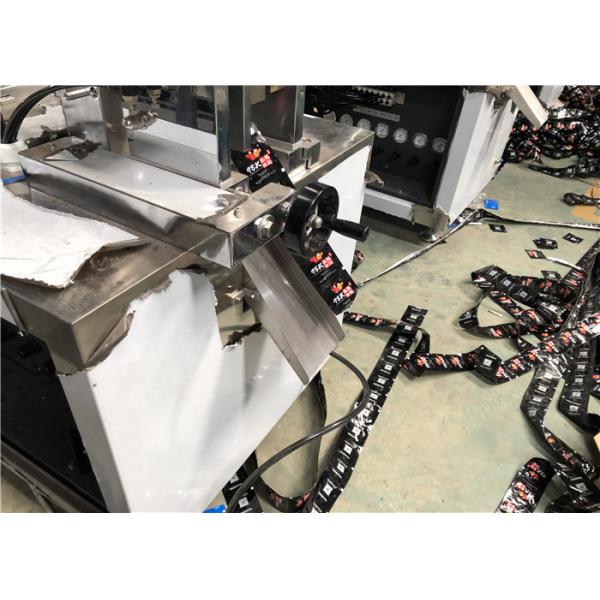

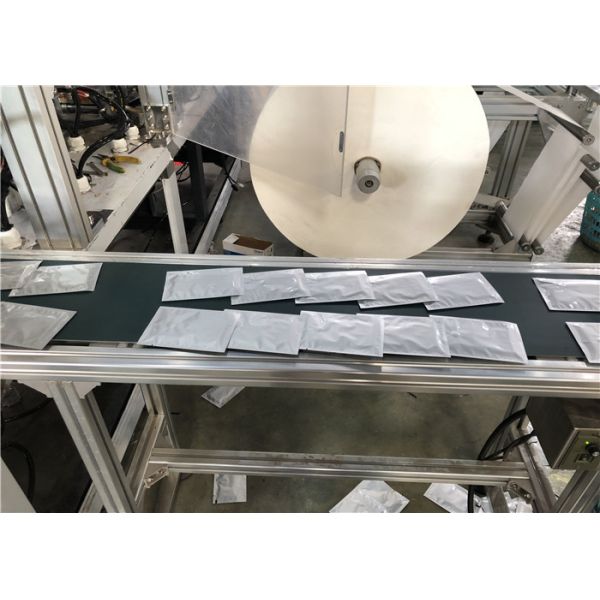

UBW-250 Automatic Wet towel wet tissue wet wipes napkin wrapping machine packing machine

Sample Style:

Lady wipes,

cleaning wipes,

Travel-use wet wipe,

Freshness wet wipe,

Make-up remove wipe,

Cleansing wipe,

Wet Tissue Used in hotel,

Wet tissue Used for Catering in Airplane,

Hand Wipes, Phone Wipes

CE ISO Pharmaceutical Blister Packaging Machines Single Wet Wipes Four Sides Sealing

Main Features:

1, The machine work steadily and continiously, It is suitable for four-side sealing products of all types wet wipes/tissue, alcohol swabs/pad and so on
2, Full automatic pouch forming, photo electricity correction, no blank edge and fault forming
3, The tissue can be folded in different types. max 8 folding vertical, and 4 folding horizontal, fold freely by unfold nonwoven width, length.
4, Adopts Japan imported spray pump, make it accurate adding with tolerance of 0.01ml/time. Multical kinds of liquid are available. it can add per liquid per bag or add all the liquid in the same bag
5, Double times sealing better to ensure the liquid adding volume and avoid leaking.
6, The machine is easy to operate, PLC touch panel, could adjust the packing temperature and speed according to the packing material,product's thickness and length. servo motor. controlled by light, electric and air power, failures can be self- diagnosised and displays clearly.the language of operate system can be made in your local language as Spanish, French,Korean,Russian,Japanese, Arabic and so on.
7, The full machine is covered with Stainless steel in good appearance, also easy to clear and durable. Low operation and maintenance cost.

Main Technical Data:

Item/Model Model:UBW-250 Model:UBW-350
Packing material PET/AL/PE(CPP) , PET/AL/NY/PE ,PET/PE ,BOPP/PE/AL/PE, OPP/AL/PE ,Paper/PE/AL/PE, Paper/LDPE/AL/PE , ... Composite packaging film;
Raw Material(Tissue) 30-80g/m2 Non-woven, Air laid paper,Wet strength paper ,Spun lace Non-woven fabric etc.
Produce Speed 60-120 bags/minute 40-100 bags/minute
Product size(Outter Bag) L:50mm-125mm W:40mm -110mm L:50mm-175mm W:40mm -110mm
Inner Wipes Size L:40mm- 200mm W:30mm -200mm L:40mm- 240mm W:30mm -240mm
Folding Way Max 10 folding vertical, and 4 folding horizontal
Liquid Adding Range 0-10ml (the coefficient of viscosity should under the 20000(cp))
Power Supply Single phase-two wire 220V 50/60Hz
Air Consumption 300-500L/min(The pressure 0.6-1.0 Mpas , w-1.0/10 air compression machine
Machine Noise ≤64.9dB(A)
Machine Weight 1100Kg 1200Kg
Machine Dimensions L2800 × W2600 × H1750mm L2800 × W2800 × H1750mm

CE ISO Pharmaceutical Blister Packaging Machines Single Wet Wipes Four Sides Sealing
