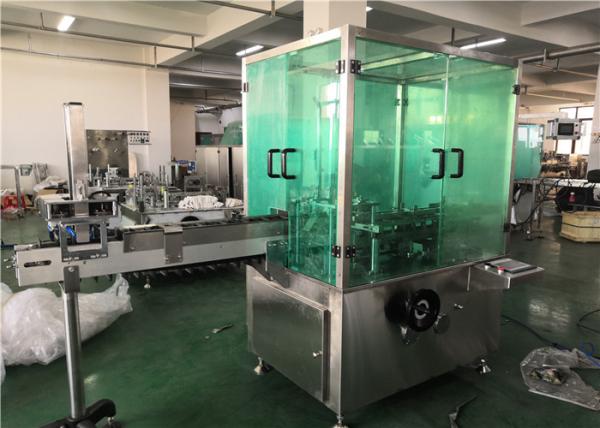

Hydraulic Vertical Automatic Cartoning Machine Used For Blister Bottle And Facial Tissue
Hydraulic Vertical Automatic Cartoning Machine Used For Blister Bottle And Facial Tissue
Hydraulic Vertical Automatic Cartoning Machine Used For Blister Bottle And Facial Tissue
Hydraulic Vertical Automatic Cartoning Machine Used For Blister Bottle And Facial Tissue
Hydraulic Vertical Automatic Cartoning Machine Used For Blister Bottle And Facial Tissue
Hydraulic Vertical Automatic Cartoning Machine Used For Blister Bottle And Facial Tissue
Hydraulic Vertical Automatic Cartoning Machine Used For Blister Bottle And Facial Tissue
Hydraulic Vertical Automatic Cartoning Machine Used For Blister Bottle And Facial Tissue
Specifications
Brand Name :
URBAN
Model Number :
DZH120B
Certification :
GMP ISO9001 CE
Place of Origin :
ZHEJIANG-CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability :
100set/Year
Delivery Time :
30 work days
Packaging Details :
Free Fumigation in Wooden Cases
After sell service :
Engineers available to service machinery overseas
Application :
Pharmaceutical,Food,Commodity,Medical,Chemical, Machinery
Driven Type :
Electric
Machine noise :
≤80dB
Encasing speed :
30-120 Box/min
Motor power :
1.5kw
Packaging type :
Wooden box
Name :
Automatic cartoning machine
Description

Good Quality Hydraulic Vertical Carton Box Packing Machine for blister bottle facial tissue sweet perfume


DZH-120 is suitable for auto loading and packing bottles, vials into carton box and seal the carton automatically.This system can open cartons, insert the leaflet(optional) products into cartons, emboss (optional),tuck in glue sealing(optional) and discharge cartons automatically.
Automatic intermittent motion horizontal cartoning machine is very compact and reliable. It can connect with Blister Machine, Pillow Pack Machine, Cellophane wrapper, etc., to form a Production Packaging Line.

Model DZH120
Encasing speed 30-120 Boxes / min
Carton Box Length 50-160 mm
Width 20-120mm
Height 15-65 mm
Carton paper requirement 250-350g/m3
Leaflet Unfolded Size (90-250)*(90-170)mm
Folded Size (90-250)*(20-40)mm
Paper requirement 60-80g/m3
Motor Power 1.5KW
Power Type 220/380V 50Hz
Machine noise ≤80dB
Working pressure ≥0.6 Mpa
Air consumption 20 m3/h
Dimensions 4500×1350×1800 mm
Total Weight 1500Kg

This equipment is new model developping base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

This machine is suitable for blister package product, adjust automatic feeding structure conveniently, setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold(1-4folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.
