High Speed Pharmaceutical Liquid Filling Machines 100ML Eye Drop Filling Machine
High Speed Pharmaceutical Liquid Filling Machines 100ML Eye Drop Filling Machine
High Speed Pharmaceutical Liquid Filling Machines 100ML Eye Drop Filling Machine
High Speed Pharmaceutical Liquid Filling Machines 100ML Eye Drop Filling Machine
Specifications
Brand Name :
URBAN
Model Number :
DXYG
Certification :
CE ISO9001 GMP
Place of Origin :
ZHEJIANG-CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100set/Year
Delivery Time :
30 work days
Packaging Details :
Free Fumigation in Wooden Cases
Speed :
80~100bpm on 100ml
Filing nozzles :
12 heads
Power :
220V 50/60Hz 1.2kw
Compress air require :
30L/min, 6~8bar
Machine size mm :
Length 2500, width 1000, height 1800
Machine weight :
900kgs
Description

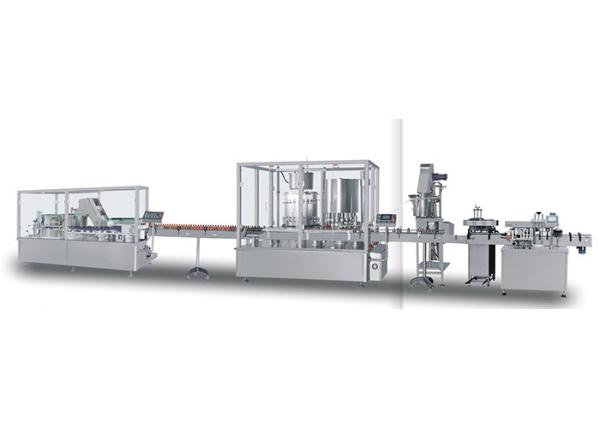

High speed automatic syrup oral eye drop ampoule and vial filling line for 100ml syrup

  1. Kind of bottle*
  1. Round hard plastic/glass bottle
  1. Bottle size*
  1. Min. Ø 40mm Max. Ø80mm
  1. Speed
  1. 30~100bpm
  1. Pure compressed air require
  1. 150L/min, 3~4bar
  1. Pure water require
  1. 1000L/hour, 2~3bar
  1. Filter
  1. PP material, precision 0.1um
  1. Power*
  1. 220V 50/60Hz 1.2kw
  1. Machine size mm
  1. Length 1400, width 1000, height 1300
  1. Conveyor length mm
  1. 2000
  1. Machine weight:
  1. 800kgs
  1. Kind of bottle
  1. Various kinds of plastic/glass bottle
  1. Bottle size*
  1. Min. Ø 20mm Max. Ø80mm
  1. Filing nozzles
  1. 12 heads
  1. Speed
  1. 80~100bpm on 100ml
  1. Alternative Filling volume*
  1. 15~60ml, 30~125ml, 50~250ml, 200~500ml
  1. Filling accuracy
  1. ±1%
  1. Power*
  1. 220V 50/60Hz 1.2kw
  1. Compress air require
  1. 30L/min, 6~8bar
  1. Machine size mm
  1. Length 2500, width 1000, height 1800
  1. Machine weight:
  1. 900kgs
  1. Kind of bottle
  1. Various kinds of plastic/glass bottle
  1. Kind of cap alternative
  1. Screw-on cap, alum. cap, press-on cap
  1. Bottle size*
  1. Min. Ø 20mm Max. Ø80mm
  1. Cap size*
  1. Ø20~50mm
  1. Nos. of Capping head
  1. 8
  1. Speed
  1. Max. 150bpm
  1. Power*
  1. 220V 50/60Hz 2.0kw
  1. Compress air require
  1. 5L/min, 4~6bar
  1. Machine size mm
  1. Length 3000, width 1200, height 1800
  1. Machine weight:
  1. 1000kgs

1. VSP In-feed Conveyor Table

Frame

• All Stainless Steel Construction to meet the GMP Standard

Specifications

• Conveyor Length: 2500mm

• Table size: 1100x1000x900mm

• Turning disk motor power: 1.0kw

• Variable Speed Control for motor

Capacity

• Production Capacity: 100-300 bottles per min.

• Production Capacity Speed can be adjusted.

Dimensions & Weight

• Machine dimension (L x W x H): 2500 x1400 x 1000mm

• Main Machine weight: 200kg

Power Source

• AC220V, 50Hz, 1Phase

2. XP-300 Automatic Bottle Rinser:

General Features:

XP-300 Automatic Bottle Rinser for the application of water and air rinsing to clean plastic or glass bottles before filling. The machine is composed by a short conveyor, bottle index wheel, water collect tank, bottle snap roller, water/air filter, water/air blowing system. The bottle loading/unloading through loading/ unloading turntable (alternative Ø620mm or Ø900mm), or directly from an production line.

Technical Features:

* Other sizes on request

3. YG50/1000-12 Automatic Volumetric Filling Machine:

General Features:

YG50/1000 Automatic Volumetric filling machine for the application of light liquid filling into plastic or glass bottles. The machine is composed by a conveyor, SS316L volumetric piston pump, top-bottom filling nozzles, liquid buffer tank and bottle indexing system. The bottle loading/unloading through loading/unloading turntable (alternative Ø620mm or Ø900mm), or directly from an production line.

Technical Features:

* Other sizes on request

4. XG/8 Rotary Capping Machine Attached Basic parts:

General Features:

XG/8 Automatic rotary capping machine for the application of plastic/glass bottles capping. The machine is composed by a conveyor, bottle index wheel, cap unscrambler, cap chute &placer, screwing capper. The bottle loading/unloading through conveyor manually, or automatic directly from an production line. It is built to meet accordance to GMP regulation.

Technical Features:

* Other sizes on request

5. GP900 Transfer Turntable

Frame

• All Stainless Steel Construction to meet the GMP Standard

Specifications

• Feeding disk speed less control system

• Diameter of disk: option 900mm

• Turning disk motor power: 200W

• Variable Speed Control for motor

Capacity

• Production Capacity: 60-120 bottles per min.

• Production Capacity Speed can be adjusted.

Dimensions & Weight

• Machine dimension (L x W x H): 990 x 990 x 1200mm

• Main Machine weight: 100kg

Power Source

• AC220V, 50Hz, 1 Phase

6. DJ Light Inspector dual station

Technical Parameter:

Dual working station: content and out-looking inspected by eye

Conveyor: 3m, speed is adjustable

Power supply: 220V 50Hz 1PH

Power consumed: 300w

Dimension: 3000mm x 410mm x 1600mm

High Speed Pharmaceutical Liquid Filling Machines 100ML Eye Drop Filling MachineHigh Speed Pharmaceutical Liquid Filling Machines 100ML Eye Drop Filling Machine
