Automatic Syrup Oral Eye Drop Ampoule and Vial Filling Line for 10ml eyedrop with great price

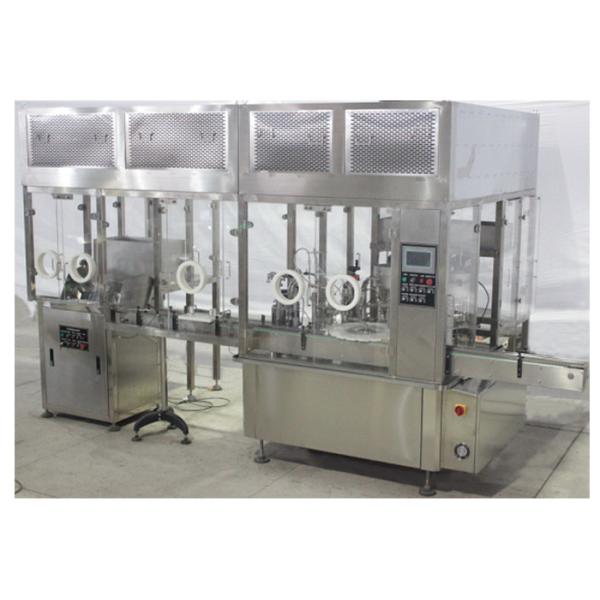

One full line for 10ml eyedrop

1. Capacity: 3600bph@10ml 3000bph@15ml
2. Bottle volume: 10ml, one size
3. Pump Valid filling range: 5~20ml
4. System consist of full eyedrops filling line
5. Filling grade: aseptic filling
6. Plug/cap used: one size for all bottle sizes

1.LP-120 automatic bottle Unscrambler

Description:

This machine is suitable to unscramble general round and flat plastic bottle, such as eyedrop bottle, syrup bottle etc. and other bottle type can be customized in this machine system. It is able to unscramble disorder bottle to stand right side onto the conveyor. All contact parts is made of SS304, accordance with GMP regulation.

Main technical parameter:

1. Applied to: round, flat and other irregular shape
2. Suit to bottle size: Φ20~50mm
3. Production capacity: 2400-6000bottles/h (according to bottle size)
4. Yield of arranging:≥99%
5. Power supply: 220v 50/60Hz
6. Power consumption: 0.5KW
7. Air consumption: 8M³/hr 0.4~0.6MPa
8. Net weight: approx. 300kg
9. Overall dimension: L*W*H= 900*900*1200mm

Characteristic:

• Instead of hand work, saving labor and sanitary.
• Advanced design, compact structure, and low power cost.
• High effective of bottle unscrambling, applicable in various small bottle type and size.
• Frequency conversion speed control, auto run/stop in kit line.
• The whole machine is designed according to the GMP regulation.

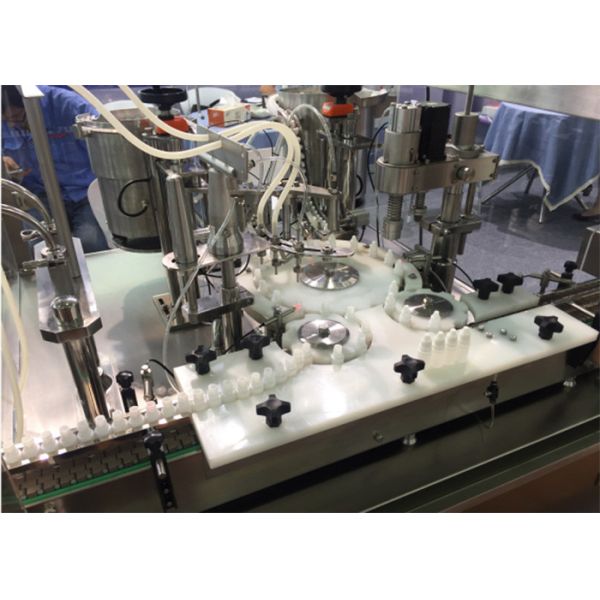

2.DXYG2/1/1 Eyedrop Filling Plugging &Capping Machine

General Features:

Eyedrop filling, plugging & capping machine for the application of round eyedrop bottle or similar ones, auto accomplish product filling (servo system), plug &cap place, cap screw-on. The machine is composed by a conveyor, ceramic piston pump (alternative SS pump or peristaltic pump) &fill nozzles, plug &cap sorter, Plug &cap placer, cap screw-on system. It is designed and made accordance to GMP regulation.

Technical Features:

* Other sizes on request

3.DJ light inspection

Description:

This machine is for inspection and visual measurement of the transparent bottle. It finds the wide application in pharmaceutical, food, chemistry, farm chemical industries. The machine is equipped with non-flash power supply lamp and semi-transparent lamp box. With bottle conveying belt, it is convenient for combining with other equipment as combination production line. The duplex operation or multi operation can be used according to the customers’ requirement.

Main technical parameter:

1. Production capacity: 50- 150 bottles/min
2. Power supply: 220V 50Hz
3. Total power rate: 0.2 Kw
4. Net weight: 100kg
5. Dimension: 1200×800×1600mm

4.SMT-A Adhesive Label Wrap-Around Machine

General Features:
Automatic labeling machine for the application of labels on round bottle. The machine is composed by a conveyor, one of label adaptor and one of label applicator. In case of wrap around label application a side conveyor is installed. There is also the possibility to install a hot stamping unit, print expiry date, batch code etc. The bottle loading/unloading can be done manually, through loading/unloading turntable (alternative Ø620mm or Ø900mm) or directly from an production line.

Technical Features:

* Other sizes on request
