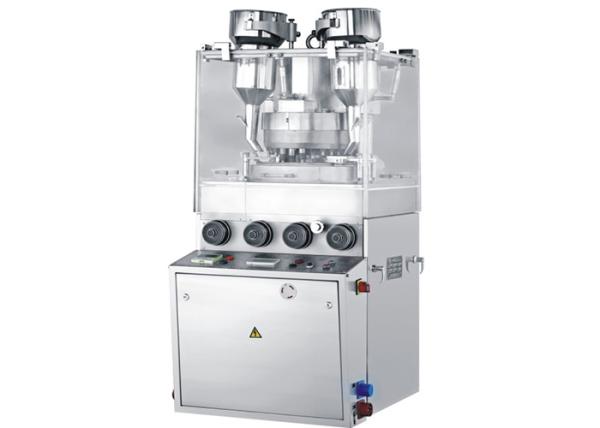

Automatic High-Speed Pill Pressing Rotary Tablet Press Machine Candy Tablet Compressing Machine

Main technical specifications

Application:

This model is to press the various kinds of granular materials into tablets, with the most outstanding advantage of being able to produce irregular tablets with wide different geometrical shapes, such as double layer tablets, ring like tablets and double side engraved tablets.

At total of 23 unit of punches and dies can be installed in the turret, with the punch consisting of two detachable sections. In one cycle of the rotation, 23 tablets will be produced.

This model is in compliance with the GMP standard on the production and management of the pharmaceuticals. The compression comportment is entirely separated from the driving mechanisms, with no painting inside the compression compartment. All spare parts to be in contract with the pharmaceuticals are made of stainless steel or with the surface being treated specially for non-toxicity and corrosion proof. The compression component is enclosed with transparent organic glass to prevent pollution. The compression area can be accessed from the four sides, with all surfaces being smooth and easy to clean.

ZPW23 Rotary Tablet Press is equipped with continuous and centralized lubrication system for the driving system, tracks and main frictional parts to be adequately lubricated, to reduce the noise and wearing for maintenance cost to be greatly reduced.

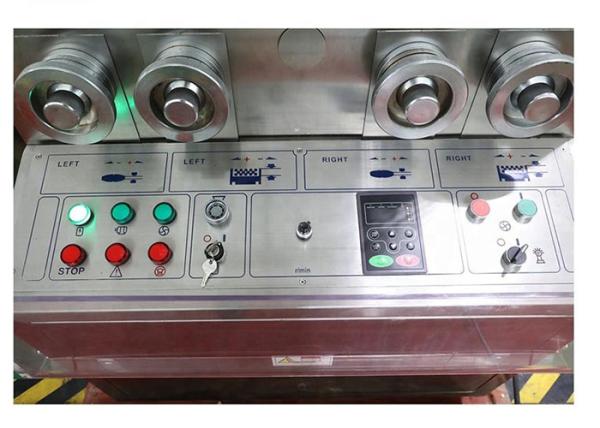

The electric control part adopts the PLC(Programmable Logic Control), with the functions of setting up of the main compression and main compression override stop. This machine is provided with the function of auto diagnosis of defectives. Through the display, the defective position can be traced and located rapidly, to increase the efficiency of maintenance.

Technical Service, Installation&Commissioning, Packing &Transportation

1. Technical Documents

Within 15 days after the contract takes effect, seller will provide buyer equipment layout designed according to buyer’s workshop drawing.

The technical documentation shipped with equipment are as follow:

1. Packing list
2. Operation manual
3. Maintenance manual
4. Electrical principle diagram
5. Special Documentation will be appointed by both parties

1. Technical Service

• Installation & Commissioning

After all equipment arrive at user’s factory, the packing should be opened to check goods amount, seller

Technician will guide the installation, commissioning and trial run. During installation and commissioning, seller is responsible for providing relevant spare parts. Buyer is responsible for engineer air ticket, local food and hotel.

• Training

Seller takes charge of providing technical training to buyer. Training contents equipment structure,

Maintenance, control and operation. Buyer’s technician can master relevant operation and maintenance skills, adjust techniques skillfully and hands faults in time

• Warranty

The warranty time is 12 months since acceptance of the equipment or 15months since deliver to loading port

After warranty, seller can provide comprehensive and favorable technology support.

• Packing Transportation

Seller should use new and firm special packing cases according with china quarantine standard,which are suitable for long distance transportation, antirust and damp proof.
