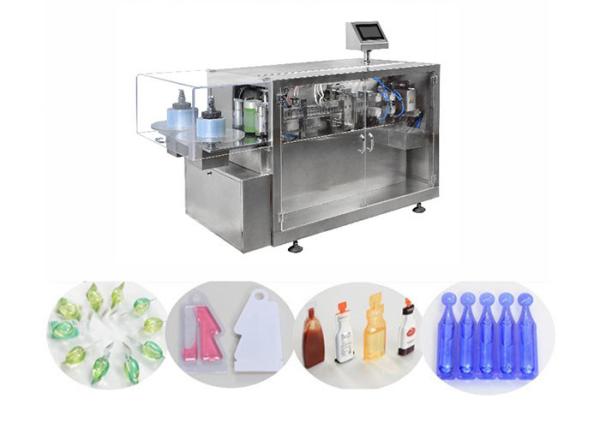

Automated Plastic Ampoule Filling And Sealing Machine Liquid Ampoule Making Machine
Automated Plastic Ampoule Filling And Sealing Machine Liquid Ampoule Making Machine
Automated Plastic Ampoule Filling And Sealing Machine Liquid Ampoule Making Machine
Automated Plastic Ampoule Filling And Sealing Machine Liquid Ampoule Making Machine
Specifications
Brand Name :
URBAN
Model Number :
GGS-118P5
Certification :
CE ISO9001 GMP
Place of Origin :
ZHEJIANG-CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100set/Year
Delivery Time :
30 work days
Packaging Details :
Free Fumigation in Wooden Cases
Max Forming Depth :
12mm
Cutting Frequency :
0-25punch/min. 110pcs/min.
Capacity :
1-50ml
Power :
4.3KW
Weight :
700Kg
Outer Size :
1750×750×1400 (mm)
Description

Automaticoral liquid plastic ampoules filling and sealing machine with plastic ampoules manufacturer

PERFORMANCE CHARACTERISTICS
PLC control, frequency conversion regulates the speed steplessly.
Finish the whole process automatically, including 7 steps in total
as putting packing material, forming, filling, printing lot number,
punching, creasing and cutting apart.
Human-machine interface, operate easily and clearly.
No leaking, bubbles or overflowing in filling process.
All the related parts connecting with liquid adopt high quality of
stainless steel, in accordance with GMP standard.
Main pneumatic components and electric appliances are imported.
Two kinds of filling system: automatic filling or electric peristaltic
pump and mechanical filling, precise calculation with slight error.

APPLISCATION
All kinds of liquid and pasty fluid including oral liquid, pesticide,
perfume, cosmetics, jam and food, etc.

Parameter

Max Forming Depth 12mm
Cutting Frequency 0-25punch/min. 110pcs/min.
Packing Material Packaging PVC/PE PET/PE(0.2-0.4)×240mm
Capacity 1-50ml
Power 4.3KW
Voltage 220-380V/50Hz
Weight 700Kg
Outer Size L×W×H(mm) 1750×750×1400 (mm)



Electrical Parts:

Item Name Brand
1 PLC MITSUBISHI
2 Touch screen WEINVIEW
3 Inverter DANFOSS
4 Servo motor DELTA
5 Servo motor drive DELTA
6 Optical OMRON
7 Label detection photoelectric Leuze
8 Bottle motor gearbox GPG
9 Wheel motor gearbox GPG
10 Dividing motor GPG
11 Wheel motor GPG

Automated Plastic Ampoule Filling And Sealing Machine Liquid Ampoule Making MachineAutomated Plastic Ampoule Filling And Sealing Machine Liquid Ampoule Making Machine
