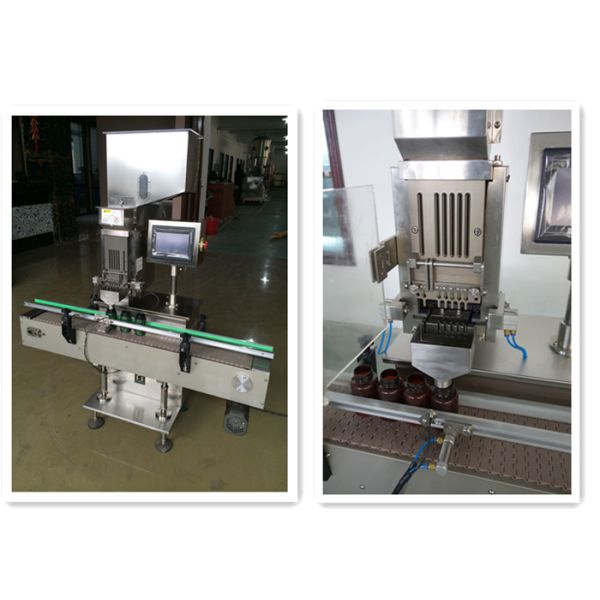

ZJS-A capsule counting machine automatic Five channel electronic counter bottle filling machine

The equipment is intelligent high precision automatic capsule counting machine, new type patent capsule counting device can automatically realize any Numbers (odd and even number, prime Numbers) on the grain of bottling.

With novel structure small volume smooth operation low noise, is small and medium-sized pharmaceutical enterprise, health care products factory, department of pharmaceutical preparation in hospital, the ideal number of automatic grain of bottling equipment.

Feature :

• The vertical track compensation counter (patent technology), number of grain of accuracy can reach 100%, avoid the great error in the traditional vibration or the number of grain precision of rotary's ills.
• The vertical track compensation counter (patent technology) in the same capsule can be set any digital fast bottle capsules grain number, do not need to change mould and is very convenient.
• The host adopt frequency control of motor speed can realize the soft start control sensitive and reliable stability under high start torque.
• The bottle conveyor for conveyor, reserved for the customer after the attachment interface can be fast connection
• Ancillary equipment (unscramble bottle machine, screw cap machine, etc.).
• Control the touch screen man-machine interface, PLC programmable controller technology can quickly setting various parameters.

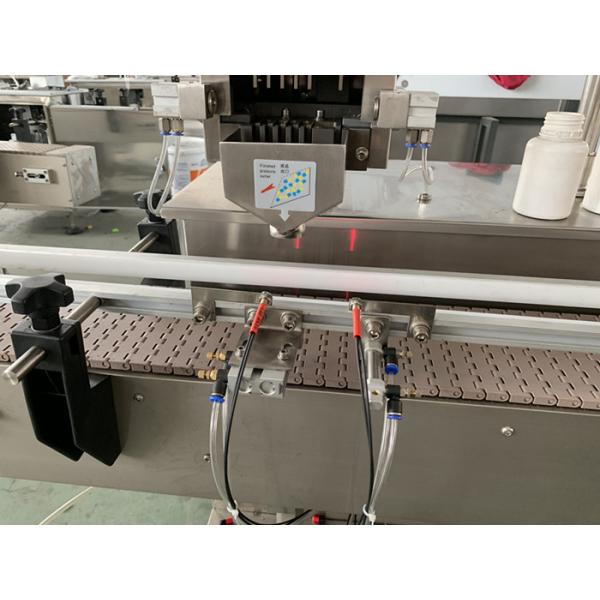

• Optical technology automatically detect without waste bottle or bottle to make the capsule to reduce to the lowest point automatic alarm.
• All adopt the cylindrical pin positioning design make convenient replacement of mold can be installed in just 5 minutes.
• Contact with drug components are all made of 304 stainless steel, in line with the GMP standard.

Technical Parameters:

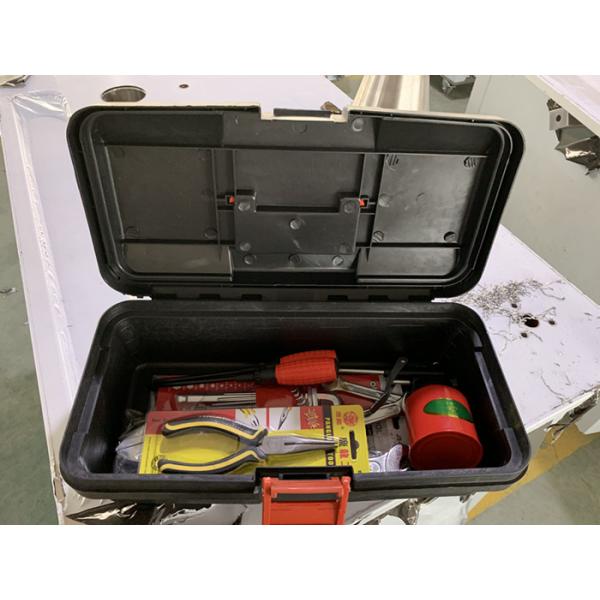

Packing List:

Items	Specifications	Qty	Weight (kg)	Material
Capsule feeding plate		pic	2.0	LY12 Aviation aluminum
Capsule sorting plate		1 pic	0.5	304
Capsule feeding fork		1 pic	0.4	304
Packing box	300x160x90	1	1.1	Fumigation-free plank
Total weight: 4kg
