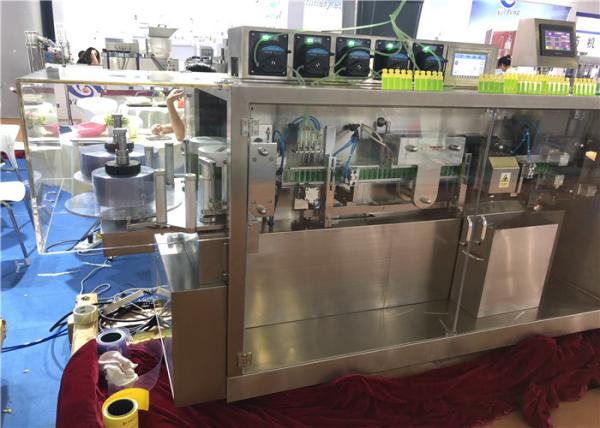

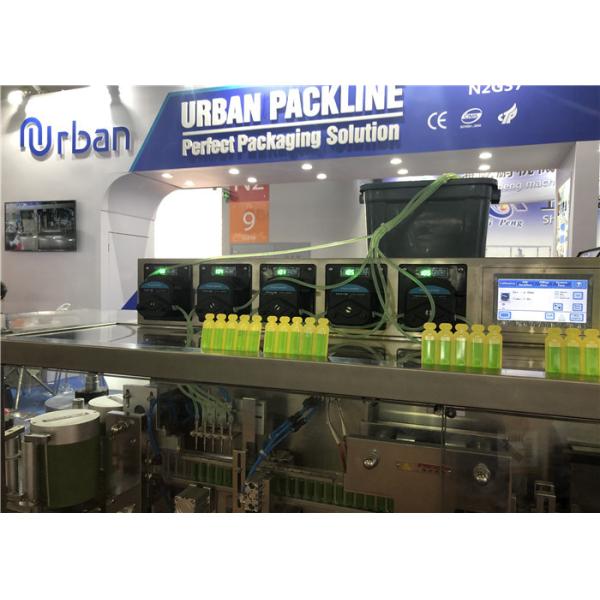

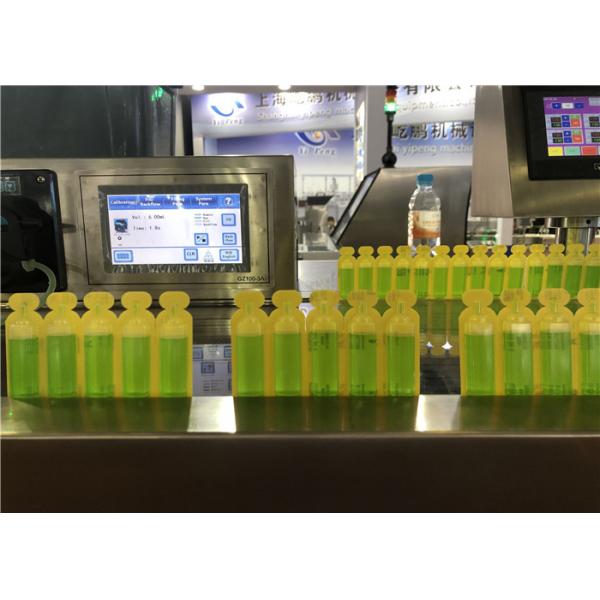

Oral Collagen Pharmaceutical Liquid Filling Machines , Ampoule Filling Sealing Machine
Oral Collagen Pharmaceutical Liquid Filling Machines , Ampoule Filling Sealing Machine
Oral Collagen Pharmaceutical Liquid Filling Machines , Ampoule Filling Sealing Machine
Oral Collagen Pharmaceutical Liquid Filling Machines , Ampoule Filling Sealing Machine
Oral Collagen Pharmaceutical Liquid Filling Machines , Ampoule Filling Sealing Machine
Oral Collagen Pharmaceutical Liquid Filling Machines , Ampoule Filling Sealing Machine
Oral Collagen Pharmaceutical Liquid Filling Machines , Ampoule Filling Sealing Machine
Oral Collagen Pharmaceutical Liquid Filling Machines , Ampoule Filling Sealing Machine
Specifications
Brand Name :
URBAN
Model Number :
UGS118P5
Certification :
CE ISO9001 GMP
Place of Origin :
ZHEJIANG-CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100set/Year
Delivery Time :
30 work days
Packaging Details :
Free Fumigation in Wooden Cases
Capacity :
3600bph@10ml 3000bph@15ml
Bottle volume :
10ml
Pump Valid filling range :
5~20ml
Plug/cap used :
one size for all bottle sizes
Description


Liquid Filling Machine is high-end product which is our latest development. It is used to fill kinds of liquid and semi-liquid products.
Main Characteristics:
Widely usage, pharmaceutical products, cosmetics, healthy care product and chemical product and so on.
Mold flexible, it is easy to replace
Intelligent control system, modular design, process innovation, simple operation.
Minimum loss of packing material, high utilization rate of 95%-98%, save packaging costs.
Diversified packaging, different shapes, it can produce the stand-up, shaped and independent plastic tube.

Technical data:
Controlled by PLC, the frequency conversion in finitely variable speeds. All 6 processes from
Spreading roll, Ampoule bottle forming, filling, sealing the end, printing serial numbers, cutting
The end, cutting apart, controlled by programming. The computer human interface has simple
And clear operation. The filling head don't drop. Leak, riding bubbled and spill over.
All are made of high-quality stainless steel, accord with the standard GMP.
Mostly pneumatic components and Wirings adopt inward fittings.
Automatic and mechanical bottling, precise calculation and limited deflection.

Technical Parameter:

Packing filmPVC/PE outer diameter: ≤ diameter 600MM
Thickness 0.1-0.5mm inner diameter : Φ 70-76mm
Width: 100 -240mm, bottle depth:5-25mm
Packing capacity1.5-60ml
Packing efficiency≤ 35plates/min
Water consumption4.6L/min
Air consumption300L/min
Power35Kw
Power Supply380V/50Hz
Overall Dimension5000x3000x
Weight3150KG
Yield Table
Packing dosePacking widthPacking Qty/rowCutting frequency
517.41232
10211040
2026835
3035635
5052.5435
6052.5430


Oral Collagen Pharmaceutical Liquid Filling Machines , Ampoule Filling Sealing MachineOral Collagen Pharmaceutical Liquid Filling Machines , Ampoule Filling Sealing Machine
