Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH
Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH
Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH
Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH
Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH
Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH
Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH
Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH
Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH
Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH
Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH
Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH
Specifications
Brand Name :
HUALIAN PHARMD
Model Number :
FD-YYH
Certification :
ISO,GMP
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
80
Delivery Time :
50 DAYS
Packaging Details :
standard wooden case
Additional Capabilities: :
Granulating
Mixer Type :
Screw
Application :
Powder
capacity :
5-10000 kgs
Product Name :
Tumbler Mixer Machine
Description

YYH Series Tumbling (single dimension) Mixer

Specifications:
Mixing Machinery- Tumbling single Dimension Mixing machinery is suitable for mixing powder, granule ,We are the first company mixer- Tumbling single Dimension Mixer
Tumbling mixing equipment is a new kind of equipment with high efficiency and simple structure which was improved by our company.Mixing equipment made powder mixed;The tumbling mixing equipment is easy to clean up, fully meeting GMP demand of pharmaceutical made.

Application and characteristic:
The tumbling mxing equipment is suitable for mixing powder, granule materials in pharmaceutical industry, chemical, foodstuff, dyestuff, agrochemical industry etc;
Structure simply, operation convenien.

Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH

Technical characters:

. Simple structure, convenient operation;
. When operation, the barrel loaded material will make rotating motion aroundcentral shaft, nevertheless material insidethe barrel will make three-dimensional motion. Therefore the mixing accuracy ofmaterial can be compared with two-dimensional mixer and three-dimensionalmixer.
Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH

Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH

Main Technical Parameter:

Type

Barrel capacity

(L)

 Loading volume
(L)

Max loading Weight

(Kg)

Swing

(r/min)

 Total motorpower(kw)

Overall dimensions

XxYxZ x Z(mm)

 Totalweight(kg)
YYH-50 50 25 13 0-18 0.55 920x440x540x350 250
YYH-150 150 75 37 0-16 0.75 1140x610x900x445 320
YYH-300 300 150 75 0-14 1.1 1340x760x990x520 410
YYH-600 600 300 150 0-13 1.5 1615x960x1100x630 490
YYH-800 800 400 200 0-12 2.2 1730x1070x1200x700 560
YYH-1000 1000 500 250 0-12 2.2 1900x1120x1300x710 740
YYH-1500 1500 750 375 0-12 3 2050x1300x1480x830 850
YYH-2000 2000 1000 500 0-10 4 2280x1420x1620x910 1050
YYH-3000 3000 1500 750 0-10 5.5 2505x1620x1830x1020 1380
YYH-4000 4000 2000 1000 0-8 5.5 3000x1800x2200x1300 1650
YYH-6000 6000 3000 1500 0-6 7.5 3400x2200x2500x1450 2300
YYH-8000 8000 4000 2000 0-6 11 3677x2300x2850x1630 3500
YYH-6000 6000 3000 1500 0-6 7.5 3400x2200x2500x1450 2300
YYH-8000 8000 4000 2000 0-6 11 3677x2300x2850x1630 3500
YYH-10000 10000 5000 2500 0-6 11 3800x2500x2950x1680 3800

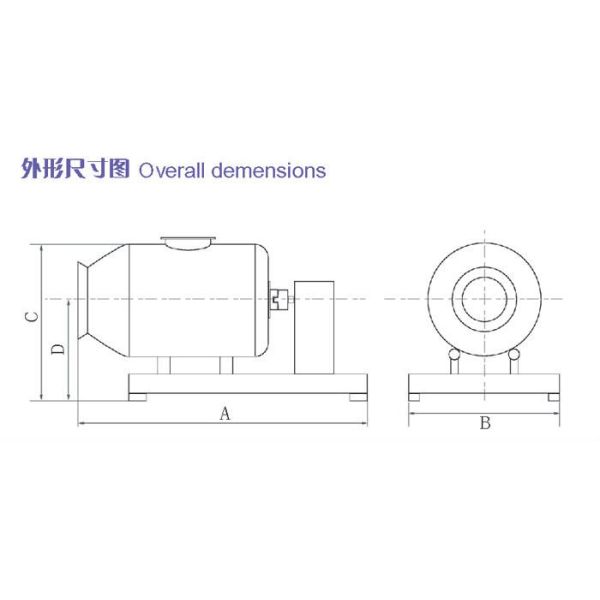

Overall demensions:
Ss 304 Tumbler Mixer Machine For Chemical Food Single Dimension FD-YYH


​

​
