Specifications
Brand Name :
HUALIAN PHARMD
Model Number :
FD-DSH
Certification :
ISO,GMP
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
80
Delivery Time :
50 DAYS
Packaging Details :
standard wooden case
Loading Capacity :
10000L
Power(W) :
1.5KW~30KW
Voltage(V) :
220/380/440
loading coefficient: :
0.4-0.6
Product Name :
Double Screw Conical Mixer
Description

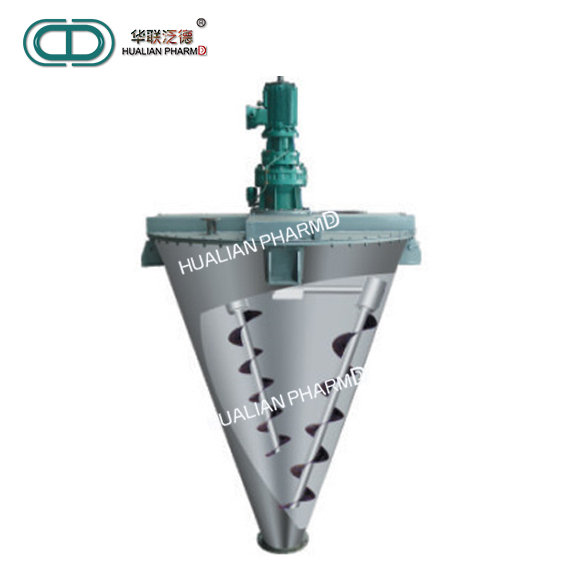

DSH Series Double-screw Conical Mixer​

Descripyion:

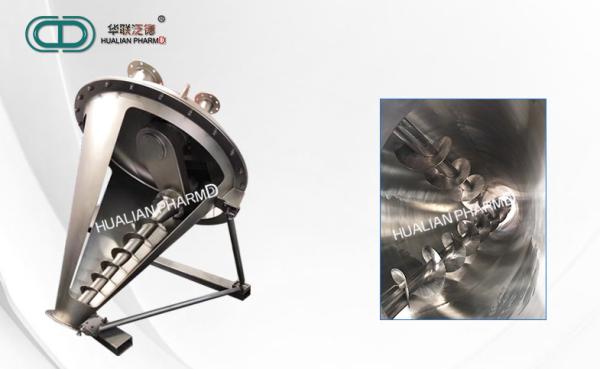

The material is made to conduct a compound motion in the cone because of therotation and revolution of the screws. The effected motions include:
1. The revolution of the screw along the wall making the material conduct acircumferential motion;
2. The rotation of the screw making the material rise along the screw from thecone bottom;
3. The compound motion of the ratation and revolution of the screws makingpartial, material be absorbed into the screw cylindroid meanwhile, under theaction of centrifugal force, the partial material in the screw cylindroid dischargesradially.
4. The rised material drops under its sole weight. The four kinds of Motions effectconvection, shearing, diffusion in the cone , thus quick and even mixing can beAchieved.

Double Screw Conical Mixer Touch Chemicals Powder Processing FD DSH Series

Application​:

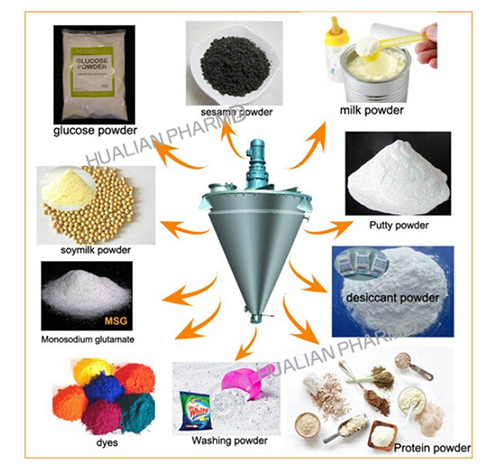

It is suitable for chemical industry, pharmaceutical industry pesticide, dyestuff ,petroleum industry, metallurgical industry, construction material and etc . Suchas in the mixing, reaction, drying, cooling of powder and powder(solid-solid),powder and liquid (solid-liquid), liquid and liquid ( liquid-liquid).
Double Screw Conical Mixer Touch Chemicals Powder Processing FD DSH Series
Double Screw Conical Mixer Touch Chemicals Powder Processing FD DSH Series

Technical characters:

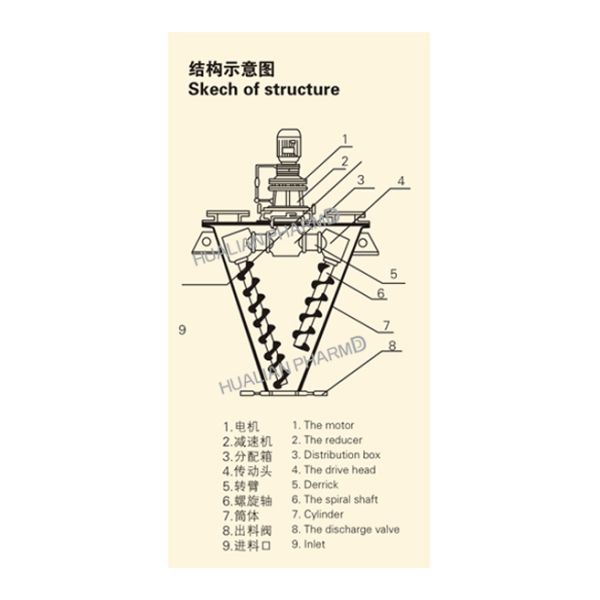

DSH series double helix cone mixer rotation has a set of motor and cycloidalreducer, USES two screw asymmetrical stirring, make the large range of materialmixing, mixing speed, for specific grvity and mix proportion of mixture is moresuitable for large material. The machine material contact parts are made ofstainless steel.

Main Technical Parameter:

Model Total volume(L) Load fcatro Equipped power
(kw)		 operating conditions Weight
(kg)
DSH-0.05 0.05 ≤0.6 1.1 Normal temperature pressure powder dust seal 250
DSH-0.1 0.1 ≤0.6 1.5 Normal temperature pressure powder dust seal 550
DSH-0.3 0.3 ≤0.6 2.75 Normal temperature pressure powder dust seal 660
DSH-0.5 0.5 ≤0.6 3.55 Normal temperature pressure powder dust seal 1200
DSH-1.0 1.0 ≤0.6 4.55 Normal temperature pressure powder dust seal 1350
DSH-2.0 2.0 ≤0.6 6.25 Normal temperature pressure powder dust seal 1500
DSH-3.0 3.0 ≤0.6 7.5 Normal temperature pressure powder dust seal 2300
DSH-4.0 4.0 ≤0.6 11 Normal temperature pressure powder dust seal 2520
DSH-6.0 6.0 ≤0.6 15 Normal temperature pressure powder dust seal 3000
DSH-8.0 8.0 ≤0.6 18.5 Normal temperature pressure powder dust seal 3150
DSH-10 10 ≤0.6 18.5 Normal temperature pressure powder dust seal 4500
DSH-12 12 ≤0.6 22 Normal temperature pressure powder dust seal 5500
DSH-15 15 ≤0.6 30 Normal temperature pressure powder dust seal 6600
DSH-20 20 ≤0.6 37 Normal temperature pressure powder dust seal 7000
DSH-25 25 ≤0.6 41 Normal temperature pressure powder dust seal 7800
DSH-30 30 ≤0.6 42.5 Normal temperature pressure powder dust seal

8500
Main Features:
1 This model of machine can be equipped with single screw , double screws, tri-screws.
2 It can be equipped with flying-entter aditionally, so as to meet the requivements for special technology.
3 The discharge valve adopts two ways , one is manual or the other is pheumatical.
4 The power of motor can be enlarged for special material(strengthening type)Double Screw Conical Mixer Touch Chemicals Powder Processing FD DSH Series
