Specifications
Brand Name :
HUALIAN PHARMD
Model Number :
FD-XF
Certification :
ISO,GMP
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
80
Delivery Time :
50 DAYS
Packaging Details :
standard wooden case
Model No :
FD-XF
area of bed layer (㎡) :
0.25
Power of fan (kw) :
5.5
occupied area (㎡) :
18
Description

XF Series Fluidizing Dryer

Product introduction:
XF series horizontal boiling dryer is also called fluidized bed or fluidized bed. Due to the different nature of dry materials, dust removal equipment supporting, according to the need to consider, can be selected at the same time cyclone separator, cloth bag dust remover, can also choose one of the -. - generally speaking, the proportion is lowerFor large granule and granule materials, only cyclone separator is needed. Small particle and powder materials with light weight should be equipped with bag dust remover, pneumatic feeding device and belt conveyor for selection. Steam, electricity, hot air furnace can be used (according to customer requirements).Granular solid materials are added into the fluidized bed dryer by the feeder, and the clean hot air is distributed into the bed body by the valve plate. The wet materials from the feeder are heated by the hot air to form a boiling state. Because of the extensive contact between hot air and materials, the heat and mass transfer process is enhanced, so it can be dried in a relatively short time. The material enters from one end of the bed body and is discharged from the discharge port after boiling and drying for several seconds to several minutes.The waste gas is discharged from the top of the effervescent bed and discharged after the solid powder is recovered by the cyclone dust collector group and the bag dust collector.Steam, electricity, hot air furnace can be used (according to customer requirements).
Principle:

The clean hot air is distributed through the valve plate into the bed body, and the wet material from the feeder is heated by the hot air to form a boiling state. Because of the extensive contact between hot air and materials, the heat and mass transfer process is enhanced, so it can be dried in a relatively short time. If continuous type is used, the material enters from one end of the bed body and flows out from the other end automatically after boiling and drying for several seconds to several minutes. The equipment is generally operated under negative pressure.
Application​:
Drying operations of pharmaceuticals, chemical raw materials, foodstuffs, grain processing and feedstuffs. For example: drying and dehumidifying of bulk drug, tablet granule, Chinese medicine granule, health food, beverage granule, corn germ, feed, plastic resin, citric acid and other powdery material.
Industrial Pharmaceutical Granulation Equipments / Boiling Fluidized Dryer
Industrial Pharmaceutical Granulation Equipments / Boiling Fluidized Dryer
Technical characters:
This fluidized bed dryer can achieve automation and continuous drying process.It has a high drying speed and a low temperature and the product quality can beensured, meeting GMP requirements. The heating resource can be steam,electricity or furmace.

Industrial Pharmaceutical Granulation Equipments / Boiling Fluidized Dryer
Main Technical Parameter:

model and specifications/technical parameters XF0.4-8 XF0.4-10 XF0.4-12 XF0.5-4(XF50) XF0.5-6 XF0.5-8
area of bed layer (m2) 3.2 4 4.8 2 3 4
drying capacity (kg H₂O/h) 112~ 16 140~200 168~240 70~100 105~150 140~200
Power of fan (kw) 48 70 15 30 48 70
temperature of air in (C) 120~140 120~140 120~140 120~140 120~ 140 120~140
temperature of in material (C) 40~ 60 40~60 40~60 40~60 40~60 40~60
overall dimensions (main machine)(m) 8x1x3.58 8x1x3.58 12x1x3.85 4x1.2x4.1 6x1.2x4.1 8x1.2x4.1
occupied area (㎡) 74 82 96 50 70 82

model and specifications/technical parameters XF0.5-10 XF0.5-12 XF0.5-14 XF0.5-16 XF0.5-18
area of bed layer (m2) 5 6 37 8 9
drying capacity (kg H₂O/h) 175~250 210~300 245~350 280~400 315~450
Power of fan (kw) 105 140 147 169 197
temperature of air in (C) 120~ 140 120~ 140 120~ 140 120~140 120~140
temperature of in material (C) 40~60 40~60 40~60 40~60 40~60
overall dimensions (main machine)(m) 10x1.2x4.1 12x1.2x4.1 14x1.2x4.1 16x1.2x4.1 18x1.2x4.1
occupied area (㎡) 100 140 180 225 268

model and specifications/technical parameters XF0.4-8 XF0.4-10 XF0.4-12 XF0.5-4(XF50) XF0.5-6 XF0.5-8
area of bed layer (m2) 3.2 4 4.8 2 3 4
drying capacity (kg H₂O/h) 112~ 16 140~200 168~240 70~100 105~150 140~200
Power of fan (kw) 48 70 15 30 48 70
temperature of air in (C) 120~140 120~140 120~140 120~140 120~ 140 120~140
temperature of in material (C) 40~ 60 40~60 40~60 40~60 40~60 40~60
overall dimensions (main machine)(m) 8x1x3.58 8x1x3.58 12x1x3.85 4x1.2x4.1 6x1.2x4.1 8x1.2x4.1
occupied area (㎡) 74 82 96 50 70 82

model and specifications/technical parameters XF0.5-10 XF0.5-12 XF0.5-14 XF0.5-16 XF0.5-18
area of bed layer (m2) 5 6 37 8 9
drying capacity (kg H₂O/h) 175~250 210~300 245~350 280~400 315~450
Power of fan (kw) 105 140 147 169 197
temperature of air in (C) 120~ 140 120~ 140 120~ 140 120~140 120~140
temperature of in material (C) 40~60 40~60 40~60 40~60 40~60
overall dimensions (main machine)(m) 10x1.2x4.1 12x1.2x4.1 14x1.2x4.1 16x1.2x4.1 18x1.2x4.1
occupied area (㎡) 100 140 180 225 268

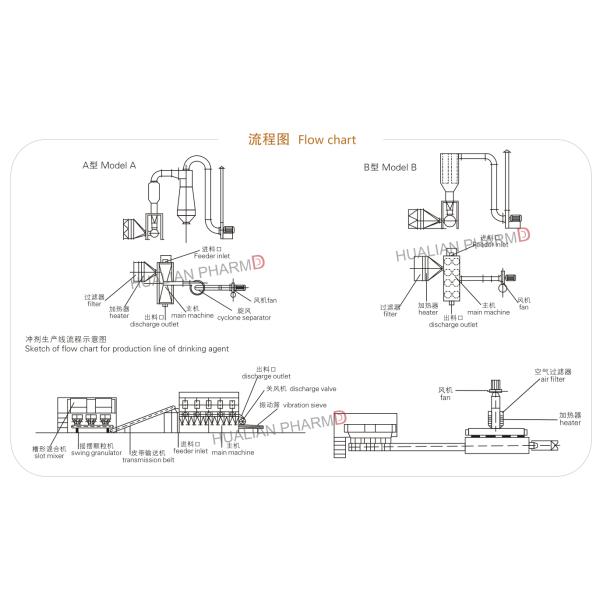

Schematic of installation:​
