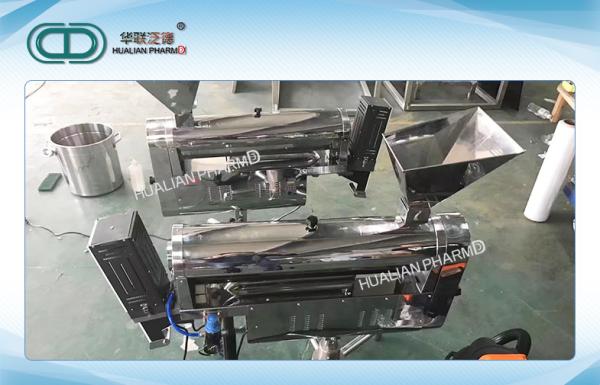

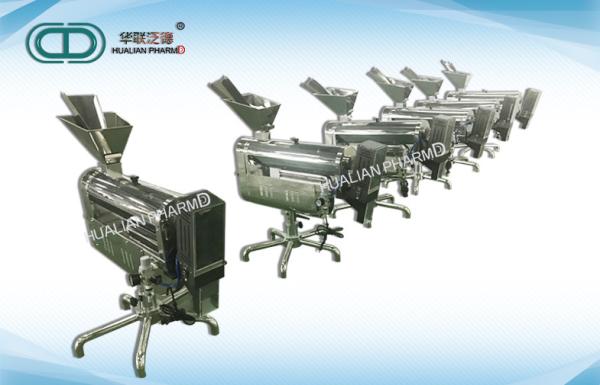

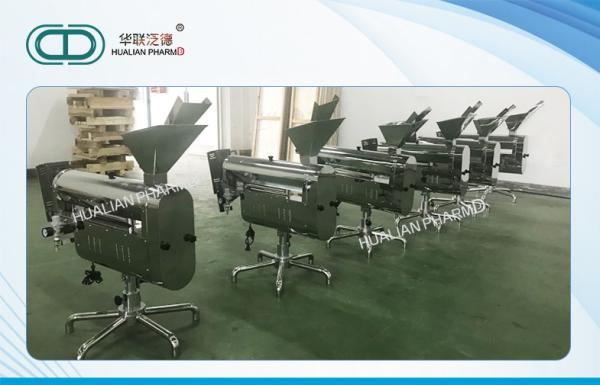

Polished Capsule Sorting Machine For Pharmaceutical Produce Nfj-150 Series
Polished Capsule Sorting Machine For Pharmaceutical Produce Nfj-150 Series
Polished Capsule Sorting Machine For Pharmaceutical Produce Nfj-150 Series
Polished Capsule Sorting Machine For Pharmaceutical Produce Nfj-150 Series
Polished Capsule Sorting Machine For Pharmaceutical Produce Nfj-150 Series
Polished Capsule Sorting Machine For Pharmaceutical Produce Nfj-150 Series
Polished Capsule Sorting Machine For Pharmaceutical Produce Nfj-150 Series
Polished Capsule Sorting Machine For Pharmaceutical Produce Nfj-150 Series
Polished Capsule Sorting Machine For Pharmaceutical Produce Nfj-150 Series
Polished Capsule Sorting Machine For Pharmaceutical Produce Nfj-150 Series
Polished Capsule Sorting Machine For Pharmaceutical Produce Nfj-150 Series
Polished Capsule Sorting Machine For Pharmaceutical Produce Nfj-150 Series
Specifications
Brand Name :
HUALIAN PAHRMD
Model Number :
FD-NFJ-150
Certification :
CE
Place of Origin :
ZHEJIANG
MOQ :
1
Price :
USD 2200- 2800/set
Payment Terms :
L/C, T/T
Supply Ability :
300 sets/month
Delivery Time :
20 days
Packaging Details :
carton /wooden case
Productivity :
7000 pcs /min
Vacuum dust clearing :
2.7m3/min -0.014MPa
Compress air(Prepare by yourself) :
0.25m3/min 0.3MPa
power :
180W
Overall dimensions :
900*600*1110mm(L*W*H)
material :
stainless steel
weight :
45kgs
Description

NFJ-150 SERIES CAPSULE SORTING POLISHER

NFJ-150 is a kind of sorting function capsule polishing equipment, it is not only used for capsule polishing and elimination of static electricity, can also be automatically excluded volume slightly, shell, debris and the cap body separated capsule. Can be applied to all types of the capsule, without changing mould.

Capsule filling machine will capsule filling after delivery to the polishing machine chute entrance.

The capsules from entrance by rotating the brush will be brought to the screen barrel capsule. The brush in the screen barrel polishing and dust on the capsule surface, and the lack of cap and a solid cap separation and scattered material, material recovery through vacuum suction port.

Brush the capsule is sent to the screen barrel export.

The sorting device, through the clean compressed air to the volume slightly, shell, debris and capsule cap separated collecting to reservoir

The pressure of compressed air, displayed on the pressure gauge filtration pressure reducing valve, and adjusted according to different needs.

The qualified capsules by export outlet.

technical parameter :

Power supply 220V 50HZ/60HZ
Power 180W
Productivity 7000 pcs /min
Vacuum dust clearing 2.7m3/min -0.014MPa
Compress air(Prepare by yourself) 0.25m3/min 0.3MPa
Overall dimensions 900*600*1110mm(L*W*H)
Weight 45kg

pictures:

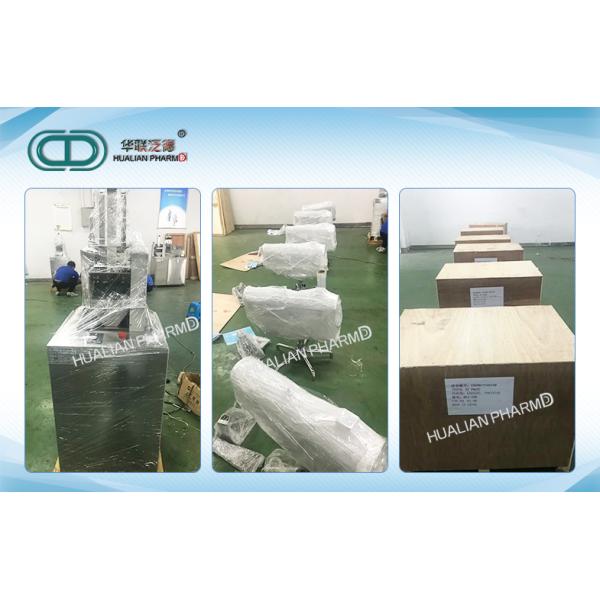

Polished Capsule Sorting Machine For Pharmaceutical Produce Nfj-150 Series

Polished Capsule Sorting Machine For Pharmaceutical Produce Nfj-150 Series
