Specifications
Brand Name :
HUALIAN EYSET
Model Number :
YS-ZHA 300
Certification :
CE
Place of Origin :
ZHEJIANG
MOQ :
1 set
Price :
USD 22000- 29000/SET
Payment Terms :
L/C, T/T
Supply Ability :
200sets/month
Delivery Time :
35 days
Packaging Details :
standard wooden case
model :
YS-ZHA 300
Width of Unwinding :
620mm
Diameter of Unwinding :
Ø600mm
Diameter of Rewinding :
Ø700mm
Min. Sealing size (mold-less) :
80mm
Min. sealing size (plates) :
30mm
Max Working Speed :
400m/min
dimension :
2500x1300x1600mm
Description

PET PVC Shrink Label Slitting And Rewinding Machine In Packing Beverage Food

1. Application:

The machine is specialized in folding and gluing PVC ,PET ,PETG,OPS shrinkage film to shrink sleeve label roll . The label is widely used in packing beverage, food , batteries, cap , chemical industry, cosmetics, etc. The machine works more stably and efficiently because of excellent tension control system ,intelligent gluing system and reasonable design of mechanical structure . It is necessary equipment in shrink sleeve label production.

2. Main Technical Parameter:

Model 300mm
Width of Unwinding 620mm
Diameter of Unwinding Ø600mm
Diameter of Rewinding Ø700mm
Min. Sealing size (mold-less) 80mm
Min. sealing size (plates) 30mm
Max. Sealing size 300mm
Max Working Speed 400m/min
Voltage of Whole Machine 220V,1phase, 60hz
Dimension of Whole Machine 2500x1300x1600mm

3. Features:

1)Stable and heavy-duty frame for high speed operation of 400n/min.

2) Adjustable forming plate creates efficient operation.

3) Auto solvent feeding control.

4) Auto tension control for unwind/rewind unit to maintain the optimun tension.

5) Good brand EPC device, precision 0.1mm.

6) Accurate product width.

7) Cantilevered rewind/unwind shaft for fast roll changeover.

8) PLC with color touch screen control system.

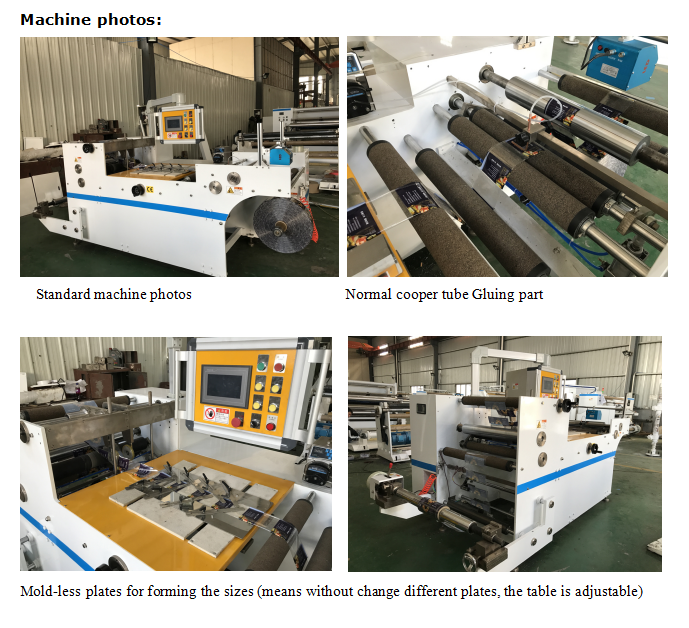

9) Copper tubing with felted wool for gluing, work with glue pump (dispenser) and PLC. The PLC can control the glue capacity with speed changes.

10) Rewind oscillation control to produce high quality rolls.

11) Static eliminator is adopted before rewinder.

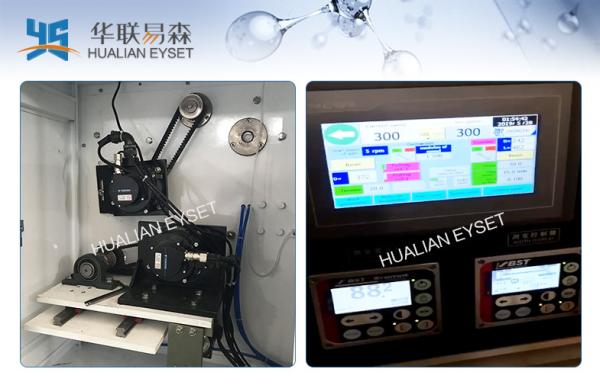

12) Whole machine with 4 pcs of servo motors(2 for traction, 1 for rewinder, 1 for oscillation), and 1pc magnetic powder brake for unwinder.

13) Linear perforation.

14) traditional aluminum plates forming device for sizes from 30-80mm.

15) auto stop when the rolls finish.

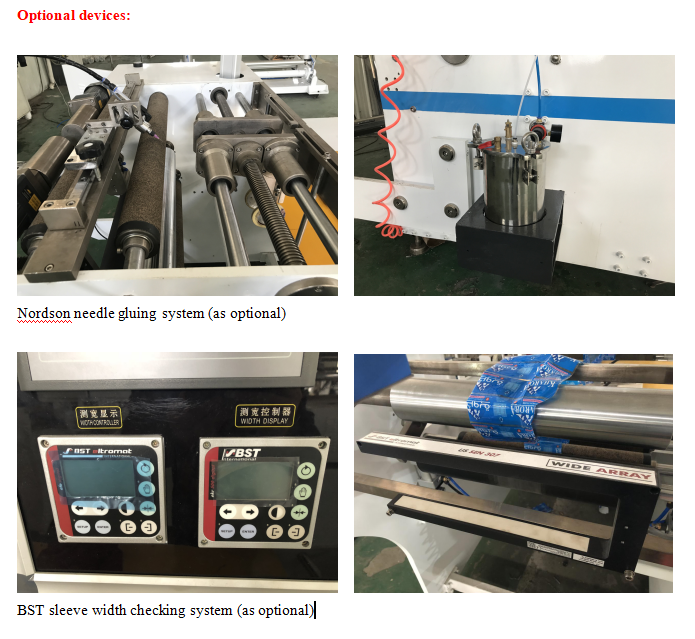

4. Optional devices:

  • 6inch air shaft for rewinder
  • Nordson Needle gluing system
  • Sleeve Width checking system, BST brand(Max checking width 284mm)

5. Main configuration:

PLC MITSUBISHI JAPAN
Touch screen MCGS CHINA
Main servo motor YASKAWA JAPAN
Main servo motor drive YASKAWA JAPAN
Unwind servo motor YASKAWA JAPAN
Unwind servo motor drive YASKAWA JAPAN
Rewind servo motor YASKAWA JAPAN
Rewind servo motor drive YASKAWA JAPAN
EPC controller PAUSOURCE TAIWAN
EPC drive PAUSOURCE TAIWAN
EPC ultrasonic sensor PAUSOURCE TAIWAN
Glue pump CHUANRUI CHINA
Unwind magnetic brake WEIZHENG TAIWAN
Rewinding vibrating servo motor YASKAWA JAPAN
Rewinding vibrating servo motor drive YASKAWA JAPAN
Main bearing NSK JAPAN
Guide rail TBI TAIWAN
Low-voltage apparatus SCHNEIDER FRANCE
Button and switch SCHNEIDER FRANCE
Anti-static bar for rewinder A&P China
Air shaft for unwinder 76mm, China brand
Air shaft for rewinder 76mm, China brand
LED Light for checking China brand
Liner perforation online Zhongtai Made
