White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder
White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder
White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder
White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder
White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder
White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder
White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder
White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder
White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder
White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder
Specifications
Brand Name :
HUALIAN EYSET
Model Number :
1400MM
Certification :
CE
Place of Origin :
HEBEI
MOQ :
1 set
Price :
USD 12000-16000.00/SET
Payment Terms :
L/C, T/T
Supply Ability :
100 SETS/MONTH
Delivery Time :
30 DAYS
Packaging Details :
STANDARD WOODEN CASE
Mother Tube Length :
1400mm
Cutting Tube Length :
0.5-1400mm
Wall Thickness :
1—15mm
Inner Diameter :
Φ76
cutting way :
Pneumatic cutting
control mode :
PLC
tube feeding way :
manually
ain motor power :
3.0KW
dimension :
2400x1200x800mm
weight :
800 kgs
Description

White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder

Technical Parameter
Inner Diameter 50-152mm
Wall Thickness 3-15mm
Mother Tube Length 1400mm
Cutting Tube Length 0.5-1400mm
Cutting Blade Single Circular Blade
Cutting Way Only Tube Rotates
Cutting Speed 1 pcs/sec.
Knife Rest Moving Speed 300mm/s
Tube Fixing Way Automatic Chuck
Tube Loading Manually
Tube Unloading Manually
Cutting Type Pneumatic
Speed Regulation By Inverter
Operator 1 person
Working Air Pressure 0.6Mpa
Power Supply

380V / 3 Phase / 50Hz

(can be customized)

Motor 2.2kw Wannan
Inverter 3.7kw Delta (Taiwan)
Servo Motor 0.75kw Yaskawa (Japan)
Servo Driver 0.85kw Yaskawa (Japan)
Moving Rail ABBA(Taiwan)
Screw Rod ABBA(Taiwan)
PLC Controller Xinjie(can be customized)
Touch Screen Xinjie(can be customized)
Signal Components Omron
Electric Components CHNT
Pneumatic Components Jingwei
Machine Size
Size 2500*650*1220mm
Weight 900kgs
Enclosed Spare Parts
Extra Blades 3 pieces
Tool 1 set
Mandrel Shaft 2 pieces

Feature:

  • pipe cutting speed, high accuracy
  • numerical control input, the length of the pipe cutting is large
  • cutter shaft does not turn, the paper tube rotates, saving material
  • servo CNC cutter

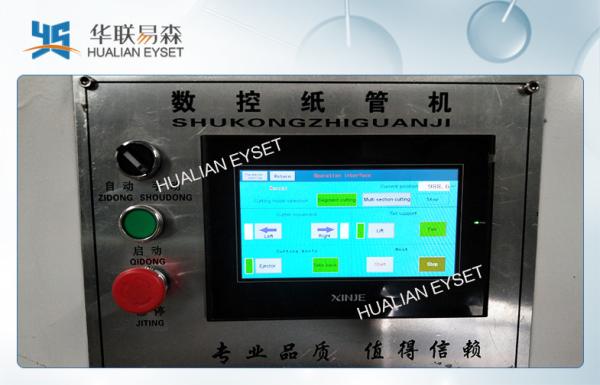

detailed picture:

White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder

White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder

White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder
