Specifications
Brand Name :
HUALIAN EYSET
Model Number :
YS-K 1300
Certification :
CE
Place of Origin :
ZHEJIANG,CHINA
MOQ :
1 set
Price :
usd 40000-53000/set
Payment Terms :
L/C, T/T
Supply Ability :
30 sets/month
Delivery Time :
50 days
Packaging Details :
standard packing with pallet and film(if too high,can not be putted in container
Max. Width of jumbo rolls :
1300mm/1600mm
Max.Diameter of unwinder :
Φ1200mm
Max.Diameter of rewinder :
Φ600mm
Diameter of Unwinder paper core :
3" and 6”
Diameter of Rewinder paper core :
3"
Mechanical Slitting speed :
10-500m/min (for different materials, speed will be different)
Tolerance of EPC :
≤0.1mm
Min. width of rewinder rolls  :
50mm
total power :
15kw
weight :
7900kgs
Overall dimension (L xWxH) :
4.3mx5.3mx2.1m
Description

YS-K1300/1600 BOPP/ PET/ PVC Film High Speed Slitter Rewinder Machine

The machine applies to slit cellophane, PET, OPP, CPP, PS, PVC, PE, optical materials, film roll, aluminum foil, laminated film, aluminum coated film, stamping foil, printing of various materials, from 10 ~ 450 Micron Thickness.

1) This machine is suitable for kinds of films and paper rolls industry. It’s equipped with a high performance PLC micron-processor combined with movable colourful touch screen that operator is able to control the machine both in rewinder position and unwinder position.

2) High-end surface treatment roller gives no scratch during slitting and rewinding on the Optical or coated films.

3) Real time diameter checking technology attached on the rewinding unit. The Ultrasonic sensor checking the exact diameter every 0.05seconds and it gives the PLC to calculating the most suitable tension while the rewind diameter is changing.

Main technical parameters:

Max. Width of jumbo rolls 1300mm/1600mm
Max.Diameter of unwinder Φ1200mm
Max.Diameter of rewinder Φ600mm
Diameter of Unwinder paper core 3’’ and 6”
Diameter of Rewinder paper core 3”
Mechanical Slitting speed

10-500m/min

(for different materials, speed will be different)
Tolerance of EPC ≤0.1mm
Min. width of rewinder rolls 50mm
Total power 15KW
Weight 7900Kg
Overall dimension (L xWxH) 4.3mx5.3mx2.1m

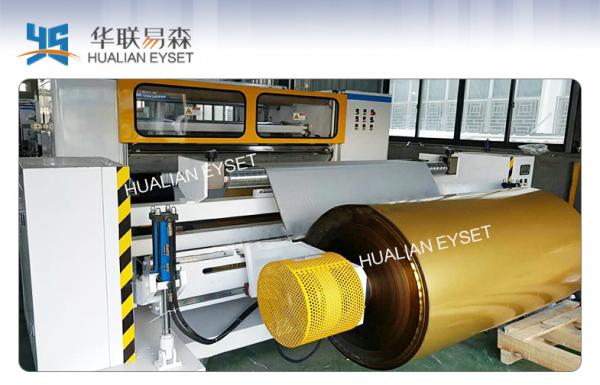

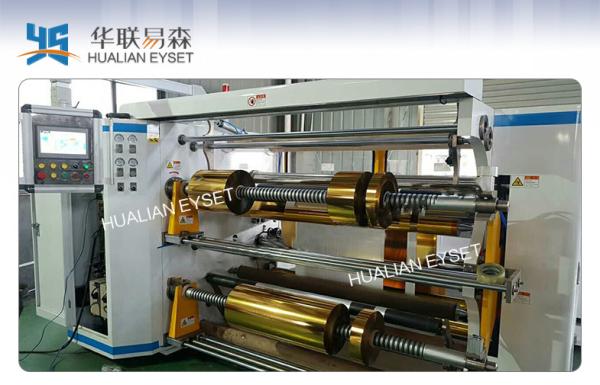

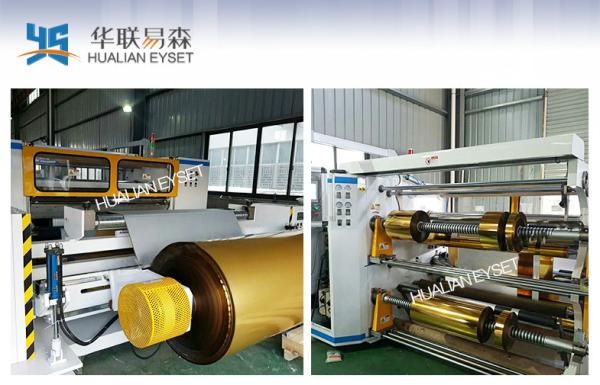

Detailed pictures :

BOPP Polyester Film Slitting And Rewinding Machine / High Speed Slitting MachineBOPP Polyester Film Slitting And Rewinding Machine / High Speed Slitting Machine
