Specifications
Brand Name :
HUALIAN EYSET
Model Number :
YS-D
Certification :
CE
Place of Origin :
ZHEJIANG
MOQ :
1 set
Price :
usd 32000- 40000/set
Payment Terms :
L/C, T/T
Supply Ability :
100set/month
Delivery Time :
40 days
Packaging Details :
standard wooden case
TYPE :
SLITTING AND REWINDING
application :
aluminum coated foil, plastic film
slitting speed :
10-400m/min
Diameter of unwind :
Ø800mm
Diameter of rewind :
Ø600mm
Min.slitting width :
50mm
total power :
15 kw
weight :
3500kgs
Dimension(L*W*H) :
2.2mx3.5mx1.9m
Description

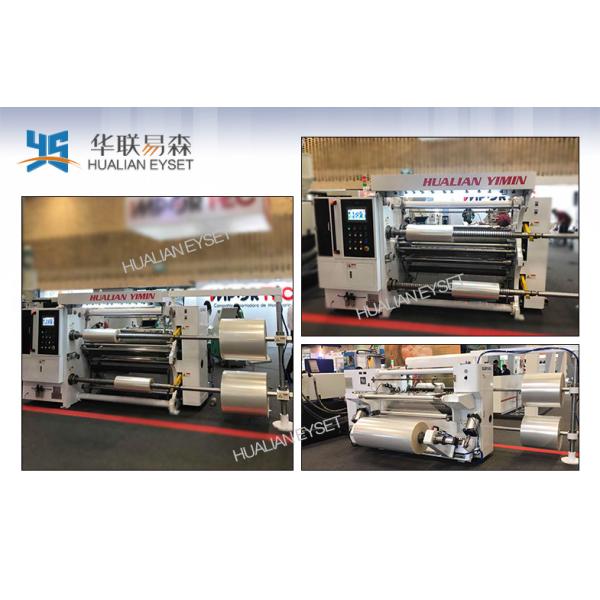

High speed Automatic Slitting Rewinding Machine for packaging materials

Uses:
The machine applies to slit and rewind cellophane, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical materials, film roll, aluminum foil roll, and craft paper, copy paper, adhesive paper, fabric, laminated, coated materials etc. all kinds film and paper printing of various materials, etc.

Paper/ Non Voven Fabric Slitting And Rewinding Machine Full Automatic 400m/Min for paper,PP.PE.PS.BOPP films etc

Main mechanical configuration:

1. Entire machine’s controlled by PLC, man-machine interface touch screen operation.

2. Unwind adopts Taiwan magnetic powder brake, material’s constant tension control is automatically calculated by PLC through the diameter’s change.

3. Traction rollers are driven by 1 motor. Achieve constant linear velocity control and effectively cut off rewind and unwind tension’s intervened.

4. Rewinders adopts 1pc motor (optional is 2pcs), automatic tension is from PLC’s calculating.

5. Equipped with automatic rewind material’s pushing by robot arm. (as optional)

6. Unwind lift adopts hydraulic & pneumatic auto loading which can save much labor force and shorten time.

7. EPC&LPC makes material’s slitting edge smooth and accurate.

8. The feature of machine is stable, security, efficient etc.

9. Laser lights for help adjust paper cores.

10. Razor knife for slitting.

11. Touch screen languanges can be Chinese, English, Russian etc.

Optionals:

1. 6inch friction shafts rings for rewinder

2. Inspecting unit for checking printing quality.

3. 2 Motors machine change to 3 motors.

4. Auto push device for rewinder

5. Circle knife for slitting paper rolls.

Main technical parameter:

Jumbo roll width 1300mm
Diameter of unwind Ø800mm
Diameter of rewind Ø600mm
Paper core size for unwind 3’’and 6’’
Paper core size for rewind 3’’
Slitting speed 10-400m/min
Tolerance of EPC ≤0.1mm
Min.slitting width 50mm
Total power 15KW
Weight 3500KG
Overall dimension (LxWxH) 2.2mx3.5mx1.9m
