High - Speed Paper Roll Slitting And Rewinding Machine With 1 Year Warranty
High - Speed Paper Roll Slitting And Rewinding Machine With 1 Year Warranty
High - Speed Paper Roll Slitting And Rewinding Machine With 1 Year Warranty
High - Speed Paper Roll Slitting And Rewinding Machine With 1 Year Warranty
High - Speed Paper Roll Slitting And Rewinding Machine With 1 Year Warranty
High - Speed Paper Roll Slitting And Rewinding Machine With 1 Year Warranty
High - Speed Paper Roll Slitting And Rewinding Machine With 1 Year Warranty
High - Speed Paper Roll Slitting And Rewinding Machine With 1 Year Warranty
Specifications
Brand Name :
HUALIAN EYSET
Model Number :
YS-ZTM-A
Certification :
CE
Place of Origin :
ZHEJIANG
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
50 sets/month
Delivery Time :
35 days
Packaging Details :
standard wooden case
model :
YS-ZTM-A
Type: :
Slitting Rewinder
Dimension(L*W*H): :
3200mmx3600mmx2000mm
Warranty :
1 Year
Voltage :
380V
Min.slitting size :
50mm
Speed :
350m/min
Weight :
5500KGS
Description
High - Speed Paper Roll Slitting And Rewinding Machine With 1 Year Warranty
ZTM-A High Speed Paper Roll Slitting Rewinding Machine

1. The machine is mainly used to slit stick paper, craft paper, laminated paper, thick PET, PVC sheets etc.

2. Entire machine is controlled by PLC(3 vector motors), man-machine interface, screen touch operation

3. Unwinding part adopts imported pneumatic brake control, the rolling diameter is automatically calculated by PLC, to achieve constant tension control.

4. Traction control is driven by a vector variable frequency motor, to achieve constant linear velocity control, and effectively cut off interactant tension between rewind and unwind

5. Rewinding part uses the vector motor realized by the PLC automatic diameter counting auto tension control.

6. Unwinding parts adopts hydraulic auto loader, which can save much labour force and shorten time.

7. Auto meter presetting, EPC error correction device is positive to assure the accuracy.

8. The feature of machine is stability, security, efficiency, etc

High - Speed Paper Roll Slitting And Rewinding Machine With 1 Year Warranty

MAIN TECHNICAL PARAMETER:
Max. width of roller
1300mm/1600mm/2000mm
Max. diameter of raw material
1500mm
Max. diameter of rewinding
600-1200mm
Speed of machine
16-350m/min
Total power
27KW
Overall dimensions
3600x×4000x1750mm

Weight of machine
4500KG

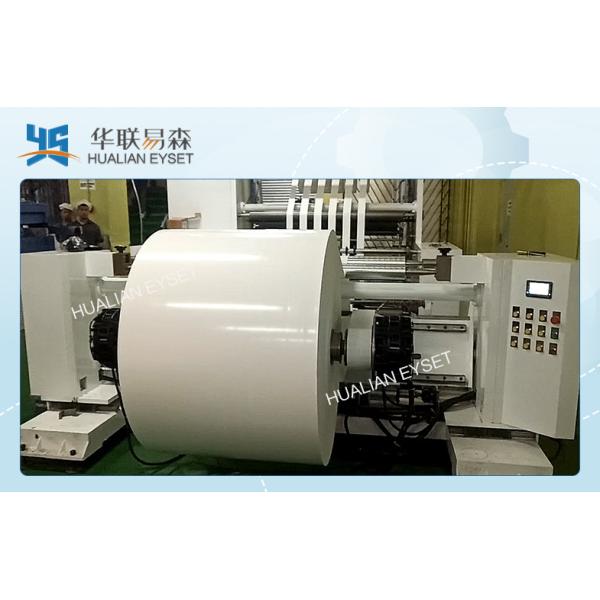

Machine photos:

High - Speed Paper Roll Slitting And Rewinding Machine With 1 Year Warranty

High - Speed Paper Roll Slitting And Rewinding Machine With 1 Year Warranty

High - Speed Paper Roll Slitting And Rewinding Machine With 1 Year Warranty
