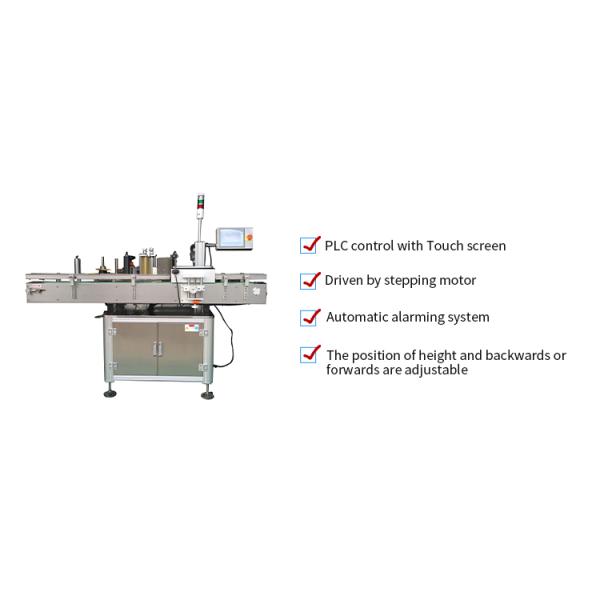

Shrink Sleeve Automatic Label Applicator Machine For Tape Shrink Wrapping
Shrink Sleeve Automatic Label Applicator Machine For Tape Shrink Wrapping
Shrink Sleeve Automatic Label Applicator Machine For Tape Shrink Wrapping
Shrink Sleeve Automatic Label Applicator Machine For Tape Shrink Wrapping
Shrink Sleeve Automatic Label Applicator Machine For Tape Shrink Wrapping
Shrink Sleeve Automatic Label Applicator Machine For Tape Shrink Wrapping
Specifications
Brand Name :
LTPM China
Model Number :
MT-Series
Certification :
CE, GMP
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
25sets/month
Delivery Time :
25days
Packaging Details :
Export standard wooden case
Voltage :
220V/380V, 50/60Hz
The standard system :
Step Motor
Capacity :
20-130 carton/min
Bottle diameter :
25-134mm
Service :
Engineer Oversea Service
Driven Type :
Electric
Description
Automatic Labeling Machine Shrink Sleeve Labeling For Tape Shrink Wrapping PVC/PET/OPS Labels With Heating Shrink Tunnel

Product Application
The automatic shrink sleeve labeling machine with shrink tunnel in such fields as foodstuff, beverage, commodity and cosmetics etc. The machine are widely used for packing fruit juice, tea drinks, commodity, purified water, condiments, beer, sport drinks, and cosmetics etc and suitable to various type of bottles.

Main Features
(1) Stainless steel 304 of host machine by all cover: simple, athletic, beautiful appearance.
(2) Adjustable cutter box: rotary cutting technology, double sides cutting edges.
(3) Central guide pillar: adopts POM material , more durable and stable to transmit labels.
(4) Control cabinet: button and touch screen control, easy operation.
(5) Label-controlling electric-eye shelf: unique combination of tail and electric to improve the precision of cutting of membrane materials.
(6) Synchronous bottle screw: making stable transmission for bottles.
(7) Label brush: more precision for casting labels.
(8) Independent material feeding shelf: fast and precise to change labels.

Technical Parameters:

Model MT-130D
The standard system Step Motor
Capacity 20-130 carton/min
Operating Direction Left or right
Label speed ≤35 m/min
Tags volume inner diameter 76 mm
Tags volume outer diameter 350 mm (max)
Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy ±1.0mm (subject to the roughness of the plane)
Weight 200KGS
Total motor power 800W
Power supply AC220V 50/60HZ Single phase
Size appearance (mm) 2200 (L) 1800 (W) 1500(H)

Automatic line for labelling round containers, with PLC touch screen. Can be customized depending on customer's bottles and labels.

Shrink Sleeve Automatic Label Applicator Machine For Tape Shrink Wrapping


We produce Homogenizer mixer,Filling machines,Capping machines,Tube machines,Labeling machines,Water treatment,Storage tanks etc. We also provide customized services. Please feel free to contact us !
