CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine
CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine
CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine
CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine
Specifications
Brand Name :
LTPM CHINA
Model Number :
RotaTop-Series
Certification :
CE, GMP, SGS, BV
Place of Origin :
Zhejiang Province,China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability :
45 sets/month
Delivery Time :
25 days
Packaging Details :
Export Standard Wooden Case
Working position :
eight-working position
Pouch material :
Laminated film PE、PP
Pouch pattern :
W:100-210mm L:100-350mm
Filling Scope :
10-5000g（ The screw attachment is to be changed）
Speed :
10-45pouches/min（The speed depends on the product status and flling weight））
Voltage :
380V 3phase 50HZ/60HZ
Description

1kg 2kg 3kg CE Automatic Vertical Big Bag Fertilizer Packing Machine

Working Process:

1. Giving bag:Power on, suction tip adsorbs the bag, the arm folder clamps the dial folder on the first working position.
2.Coding: The machine run to the second working position, it codes the bag.
3. Opening bag:The machine run to the third working position, it opens the bag.
4.Filling: The machine runs to the fourth working position, it fills the bag.
5.Sealing: The machine runs to the fifth working position, it checks if the bag is filled with material, then it seals the bag.
6.Forming & output packages: The machine runs to the sixth working position, it cools the bag mouth and forms& output packages. The above process carried out simultaneously by cycle

Advantage:
Machinery passed Certifications, by ISO, CE,SGS, ROHS, EU Low Voltage, EC Machinery.

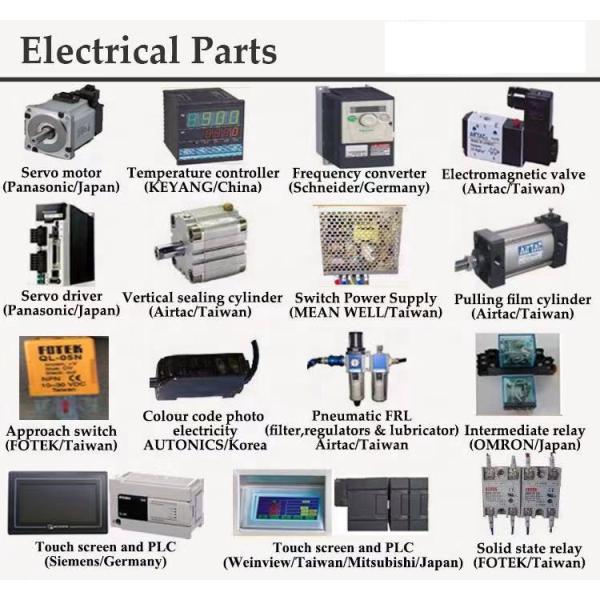

High quality configurations. Mitsubishi / Siemens PLC, Panasonic/ Siemens/ Delta servo motor driver, Mitsubishi/ Siemens/ Weinview touch screen.
Pneumatic system, double belt pulling film, very stalbe.
Professional vertical packing machine producer and factory supplier, over 10 years.
Great workshop team and after-sales services.

Combined Parts:

Automatic Z-type bucket elevator
Linear weigher
Vertical Packing Machine
Platform
Finished product conveyor

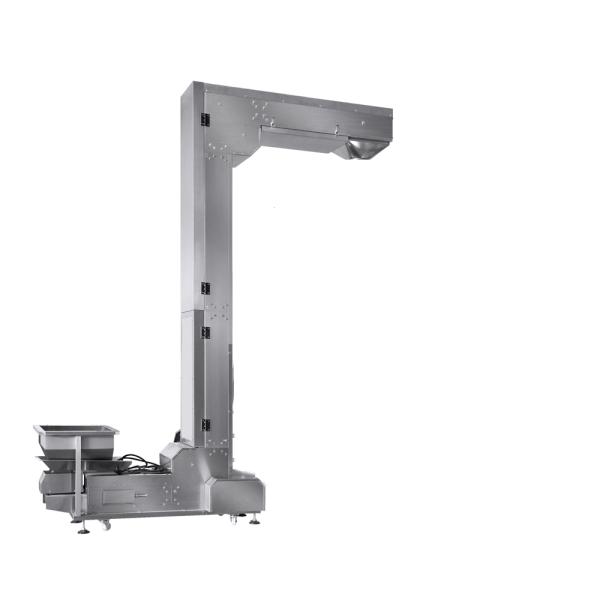

Automatic Z-type bucket elevator:

CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine

Technical Parameters:

Working position

eight-working position

Pouch material

Laminated film PE,PP

Pouch pattern

stand-up&zipper pouch

Pouch size

W:100-210mm L:100-350mm

Filling Scope

10-5000g( The screw attachment is to be changed)

Weight Accuracy

Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5%

Speed

10-45pouches/min(The speed depends on the product status and flling weight))

Voltage

380V 3phase 50HZ/60HZ

Total power

8.5KW

Compress air

0.6m3/min(supply by user)

Size

1900*1570*1700mm

CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine
