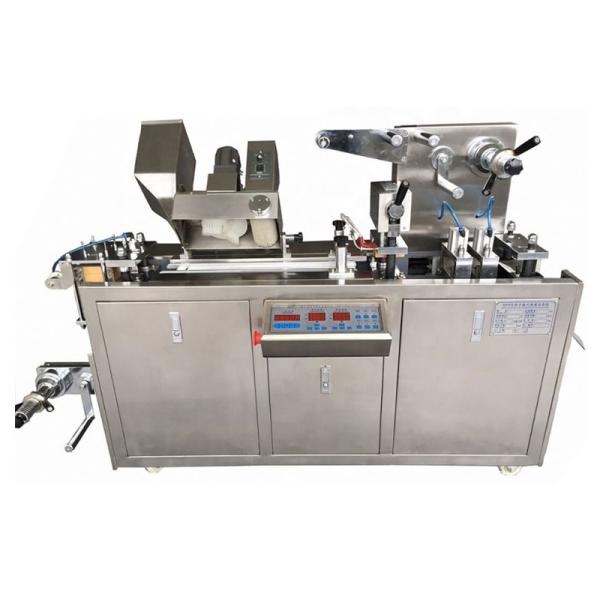

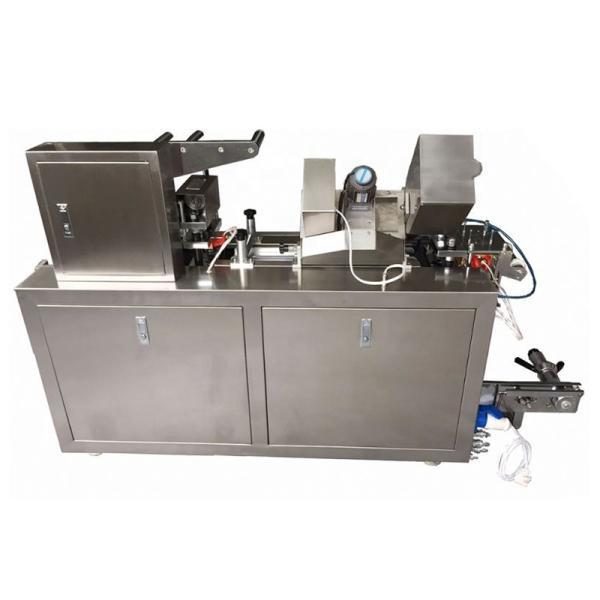

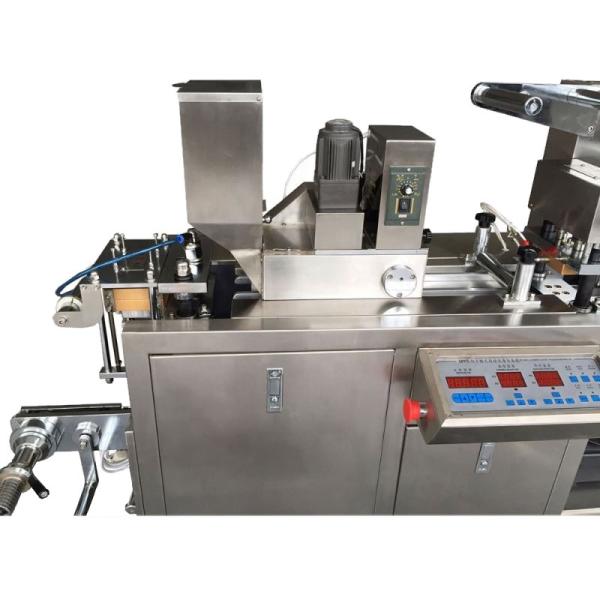

Small Aluminum Blister Packing Machine 0.4 Mpa Plastic Tablet Pharmaceutica
Small Aluminum Blister Packing Machine 0.4 Mpa Plastic Tablet Pharmaceutica
Small Aluminum Blister Packing Machine 0.4 Mpa Plastic Tablet Pharmaceutica
Small Aluminum Blister Packing Machine 0.4 Mpa Plastic Tablet Pharmaceutica
Small Aluminum Blister Packing Machine 0.4 Mpa Plastic Tablet Pharmaceutica
Small Aluminum Blister Packing Machine 0.4 Mpa Plastic Tablet Pharmaceutica
Small Aluminum Blister Packing Machine 0.4 Mpa Plastic Tablet Pharmaceutica
Small Aluminum Blister Packing Machine 0.4 Mpa Plastic Tablet Pharmaceutica
Specifications
Brand Name :
LTPM CHINA
Model Number :
DPP-Series
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
25 SETS Per month
Delivery Time :
25days
Packaging Details :
wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.
Capacity :
45cutting/min
Packaging Type :
Alu/PVC and Alu/Alu Package
Control System :
Micro Computer
Feeding: :
Universal feeder
Power :
2.2kw
Air Pressure(Mpa) :
0.4-0.6
Description

1, Main transmission part adopts parallel shaft helical gear box, novel structure, smooth operation, long life, low noise.

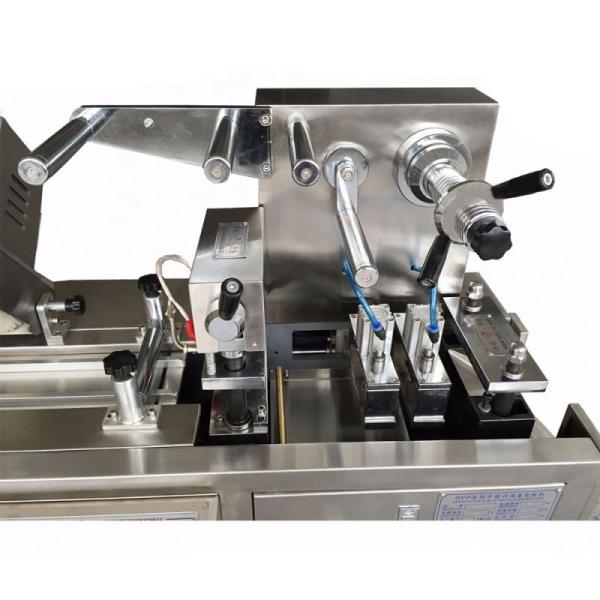

2, Heat sealing station is fixed, forming, indentation, punching parts move freely adjust the spacing, easy operation .

3, Manipulator traction, adjustable stroke, can be adapted to the packaging of different sizes.

4, Flat structure, can be packaged article of a special shape, such as oval, square, triangular, liquid, paste, such as syringes.

Small Aluminum Blister Packing Machine 0.4 Mpa Plastic Tablet Pharmaceutica

Technical Parameters

Model DPP-80
Punching frequency 20-40times/min
Capacity 2000 plates/ hour
Max forming area and depth 70×100×12mm(designed according user’s requirement )
Standard Plate 80×57(designed according user’s requirement)
Adjustable scope of travel 30-80(designed according user’s requirement)
Air-compressor 0.6-0.8Mpa
Total power 380V/220V 50Hz 1.8Kw
Main motor power 0.75Kw
PVC 0.15-0.5×80mm
PTP 0.02-0.035×80mm
Dialysis paper 50-100g×80mm
Mold cooling Use of water cooling or chiller cooling
dimensions 1400×460×950mm(L×W×H)
weight 450Kg
Noise indicators ≤75dBA

Small Aluminum Blister Packing Machine 0.4 Mpa Plastic Tablet Pharmaceutica
