Specifications
Brand Name :
LTPM CHINA
Model Number :
DoubFill-Series
Certification :
CE, GMP, SGS, BV
Place of Origin :
Zhejiang Province,China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability :
45 sets/month
Delivery Time :
25 days
Packaging Details :
Export Standard Wooden Case
Warranty :
5 years
Machinery Capacity :
4000BPH
Key Selling Points :
High Productivity
Packing Weight :
1 - 2000g
Packing precision :
100~500g, ≤±1%;500~2000g, ≤±0.5%
Filling speed :
50 ~ 70 bottles per min
Power supply :
3P AC208~415V 50/60Hz
Hopper Volume :
83L
Description

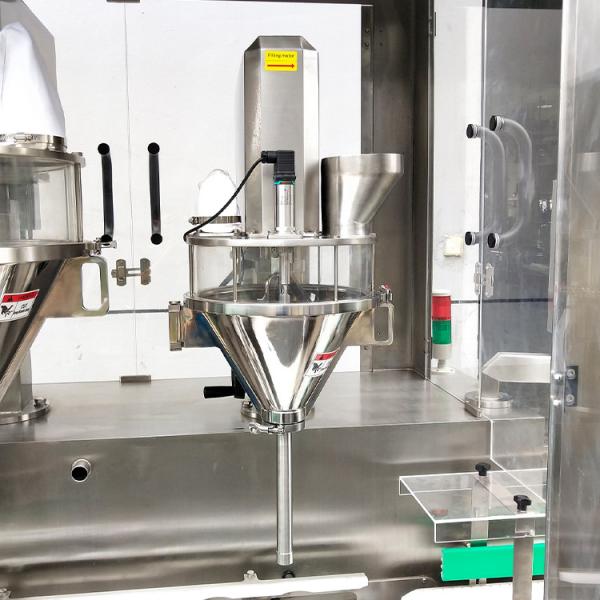

This Series Machine Is a New-Designed That We Make It On Placing The Old Turnplate Feeding On One Side. Dual Auger Filling Within One Line Main-Assist Fillers And The Originated Feeding System Can Keep The High-Precision And Take Off The Tiring Cleaning Of The Turntable. It Can Do The Accurate Weighing & Filling Work, And Also Could Combined With Other Machines To Buildup a Whole Can-Packing Production Line. This Machine Could Be Used In Filling Milk Powder, Albumen Powder, Condiment, Dextrose, Rice Flour, Cocoa Powder, Solid Drink, And So On.

Seasoning Coffee Automated Packaging Machine Flour Chilli Detergent Milk Powder Filler

Main Features

1.One Line Dual Fillers, Main & Assist Filling To Keep Work In High-Precision.
2.Can-Up And Horizontal Transmitting Is Controlled By Servo And Pneumatic System, Be More Accurate, More Speed.
3.Servo Motor And Servo Driver Control The Screw, Keep Stable And Accurate
4.Stainless Steel Structure, Split Hopper With Polishing Inner-Out Make It To Cleaned Easily.
5.PLC & Touch Screen Make It Be Easy Of Operation.
6.Fast-Respond Weighing System Make The Strongpoint To Real
7.The Handwheel Make The Exchange Of Different Filings To Be Easily.
8.Dust-Collecting Cover Meet The Pipeline And Protect Environment To Pollution.
9.Horizontal Straight Design Make The Machine In Little Area
10.Settled Screw Setup Make No Metal Pollution In Producing
11.With Whole System Central Control System.
Process:
Can-Into → Can-Up → Vibration → Filling → Vibration → Vibration → Weighing & Tracing → Reinforce → Weight Checking → Can-Out

Machine Parameters
Dosing mode
Dual filler filling with online weighing
Filling Weight
100 - 2000g
Container Size
Φ60-135mm; H 60-260mm
Filling Accuracy
100-500g, ≤±1g; ≥500g,≤±2g
Filling Speed
Above 50 cans/min(#502),Above 60 cans/min(#300 ~ #401)
Power Supply
3P AC208-415V 50/60Hz
Total Power
3.4 kw
Total Weight
450kg
Air Supply
6kg/cm 0.2cbm/min
Overall Dimension
2650×1040×2300mm
Hopper Volume
50L(Main) 25L (Assist)
Machine Details
Model
AugEle-A1 -2K
AugEle-A1
-3K
AugEle-A1
-5K
AugEle-A1
-7K
AugEle-A1
-8K
AugEle-A1
-12K
Charging Capacity
2m3/h
3m3/h
5 m3/h
7 m3/h
8 m3/h
12 m3/h
Diameter of pipe
Φ102
Φ114
Φ141
Φ159
Φ168
Φ219
Total power
0.55KW
0.75W
1.5KW
2.2KW
2.2KW
3.0KW
Total Weight
70kg
90kg
130kg
160kg
180kg
230kg
Thickness of Pipe
2.0mm
2.0mm
2.0mm
3.0mm
3.0mm
3.0mm
Outer dia.of Screw
Φ88mm
Φ100mm
Φ126mm
Φ141mm
Φ150mm
Φ200mm
Pitch
76mm
80mm
100mm
110mm
120mm
180mm
Thickness of Pitch
2mm
2mm
2.5mm
2.5mm
2.5mm
3mm
Dia.of Axis
Φ32mm
Φ32mm
Φ42mm
Φ48mm
Φ48mm
Φ57mm
Thickness of Axis
3mm
3mm
3mm
4mm
4mm
4mm
Power supply:3P AC208-415V 50/60Hz
Charging Angle:Standard 45 Degree,30~60 Degree Are Also Available.
Charging Height:Standard 1.85M,1~5M Could Be Designed And Manufactured.
Fully Stainless Steel Structure,Contact Parts Ss304;
Remark: Other Charging Capacity Could Be Designed And Manufactured.
Deploy List
Motor:Able(Chinese brand)
Gear reducer:Shanghai Saini,Ratio:1:10
Model
AugEle-A2
-2K
AugEle-A2
-3K
AugEle-A2
-5K
AugEle-A2
-7K
AugEle-A2
-8K
AugEle-A2
-12K
Charging Capacity
2m3/h
3m3/h
5 m3/h
7 m3/h
8 m3/h
12 m3/h
Diameter of pipe
φ102
φ114
φ141
φ159
Φ168
Φ219
Total power
0.58KW
0.78W
1.53KW
2.23KW
2.23KW
3.03KW
Total Weight
100kg
130kg
170kg
200kg
220kg
270kg
Hopper Volume
100L
200L
200L
200L
200L
200L
Thickness of Hopper
1.5mm
1.5mm
1.5mm
1.5mm
1.5mm
1.5mm
Thickness of Pipe
2.0mm
2.0mm
2.0mm
3.0mm
3.0mm
3.0mm
Outer dia.of Screw
Φ88mm
Φ100mm
Φ126mm
Φ141mm
Φ150mm
Φ200mm
Pitch
76mm
80mm
100mm
110mm
120mm
180mm
Thickness of Pitch
2mm
2mm
2.5mm
2.5mm
2.5mm
3mm
Dia.of Axis
Φ32mm
Φ32mm
Φ42mm
Φ48mm
Φ48mm
Φ57mm
Thickness of Axis
3mm
3mm
3mm
4mm
4mm
4mm
Power supply:3P AC208-415V 50/60Hz
Charging Angle:Standard 45 Degree,30~60 Degree Are Also Available.
Charging Height:Standard 1.85M,1~5M Could Be Designed And Manufactured.
Square Hopper,With Vibrator,Round Hopper Could Be Designed And Manufactured.
Fully Stainless Steel Structure,Contact Parts SS304;
Remark: Other Charging Capacity Could Be Designed And Manufactured.
Deploy List
Motor:Able(Chinese brand)
Gear reducer:Shanghai Saini,Ratio:1:10
Vibrating motor:Oli-Wolong,Power:30W
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models. - LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
