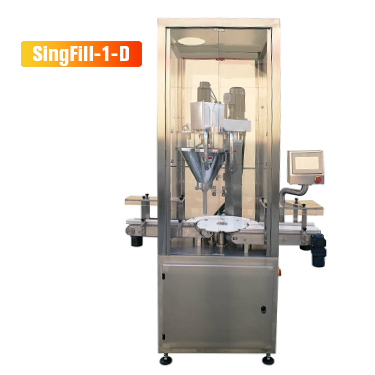

Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler
Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler
Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler
Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler
Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler
Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler
Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler
Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler
Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler
Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler
Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler
Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler
Specifications
Brand Name :
LTPM CHINA
Model Number :
SingFill-Series
Certification :
CE, GMP, SGS, BV
Place of Origin :
Zhejiang Province,China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability :
45 sets/month
Delivery Time :
25 days
Packaging Details :
Export Standard Wooden Case
Warranty :
5 years
Machinery Capacity :
2000BPH
Weight :
350 KG
Packing Weight :
10~5000g
Packing precision :
100~500g, ≤±1%;500~2000g, ≤±0.5%
Filling speed :
20 - 40 bottles/min
Air Supply :
6 kg/cm2 0.05m3/min
Hopper Volume :
50L
Description

This Series Could Do Work Of Measuring, Can Holding, And Filling ,Etc, It Can Constitute The Whole Set Can Filling Work Line With Other Related Machines, And Suitable For Filling Kohl, Glitter Powder, Pepper, Cayenne Pepper, Milk Powder, Rice Flour, Albumen Powder, Soy Milk Powder, Coffee Powder, Medicine Powder ,Additive, Essence And Spice, Etc.

Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler

Main Features

1.Stainless Steel Structure, Level Split Hopper, Easily To Wash.
2.Servo-Motor Drive Auger. Servo-Motor Controlled Turntable With Stable Performance.
3.PLC, Touch Screen And Weighing Module Control.
4.With Adjustable Height-Adjustment Handwheel At Reasonable Height, Easy To Adjust The Head Position.
5.With Pneumatic Can Lifting Device To Assure The Material Not Spilling Out When Filling.
6.Weight-Chosen Device, To Assure Each Product Be Qualified, So To Leave The Latter Cull Eliminator.
7.To Save All Product’s Parameter Formula For Later Use, Save 10 Sets At Most.
8.When Changing The Auger Accessories, It Is Suitable For Materials Ranging From Super Fine Powder To Small Granula.
Model
SingFill-1-D100
SingFill-1-D160
Container Size
φ20-100mm, H 15-150mm
φ30-160mm , H50-260mm
Filling Weight
1 – 500g
10 – 5000g
Filling Accuracy
≤ 100g, ≤±2%; 100 – 500g,≤±1%
≤ 500g, ≤±1%; >500g, ≤±0.5%
Filling Speed
20 - 40 bottles/min
20 - 40 bottles/min
Power Supply
3P AC208-415V 50/60Hz
3P AC208-415V 50/60Hz
Air Supply
6 kg/cm2 0.05m3/min
6 kg/cm2 0.05m3/min
Total Power
1.8Kw
2.3Kw
Total Weight
250kg
350kg
Overall Dimensions
1400×830×2080mm
1840×1070×2420mm
Hopper Volume
25L(Enlarge Size 35L)
50L(Enlarged Size 65L)

Model
AugEle-A1 -2K
AugEle-A1
-3K
AugEle-A1
-5K
AugEle-A1
-7K
AugEle-A1
-8K
AugEle-A1
-12K
Charging Capacity
2m3/h
3m3/h
5 m3/h
7 m3/h
8 m3/h
12 m3/h
Diameter of pipe
Φ102
Φ114
Φ141
Φ159
Φ168
Φ219
Total power
0.55KW
0.75W
1.5KW
2.2KW
2.2KW
3.0KW
Total Weight
70kg
90kg
130kg
160kg
180kg
230kg
Thickness of Pipe
2.0mm
2.0mm
2.0mm
3.0mm
3.0mm
3.0mm
Outer dia.of Screw
Φ88mm
Φ100mm
Φ126mm
Φ141mm
Φ150mm
Φ200mm
Pitch
76mm
80mm
100mm
110mm
120mm
180mm
Thickness of Pitch
2mm
2mm
2.5mm
2.5mm
2.5mm
3mm
Dia.of Axis
Φ32mm
Φ32mm
Φ42mm
Φ48mm
Φ48mm
Φ57mm
Thickness of Axis
3mm
3mm
3mm
4mm
4mm
4mm
Power supply:3P AC208-415V 50/60Hz
Charging Angle:Standard 45 Degree,30~60 Degree Are Also Available.
Charging Height:Standard 1.85M,1~5M Could Be Designed And Manufactured.
Fully Stainless Steel Structure,Contact Parts Ss304;
Remark: Other Charging Capacity Could Be Designed And Manufactured.
Deploy List
Motor:Able(Chinese brand)
Gear reducer:Shanghai Saini,Ratio:1:10
Model
AugEle-A2
-2K
AugEle-A2
-3K
AugEle-A2
-5K
AugEle-A2
-7K
AugEle-A2
-8K
AugEle-A2
-12K
Charging Capacity
2m3/h
3m3/h
5 m3/h
7 m3/h
8 m3/h
12 m3/h
Diameter of pipe
φ102
φ114
φ141
φ159
Φ168
Φ219
Total power
0.58KW
0.78W
1.53KW
2.23KW
2.23KW
3.03KW
Total Weight
100kg
130kg
170kg
200kg
220kg
270kg
Hopper Volume
100L
200L
200L
200L
200L
200L
Thickness of Hopper
1.5mm
1.5mm
1.5mm
1.5mm
1.5mm
1.5mm
Thickness of Pipe
2.0mm
2.0mm
2.0mm
3.0mm
3.0mm
3.0mm
Outer dia.of Screw
Φ88mm
Φ100mm
Φ126mm
Φ141mm
Φ150mm
Φ200mm
Pitch
76mm
80mm
100mm
110mm
120mm
180mm
Thickness of Pitch
2mm
2mm
2.5mm
2.5mm
2.5mm
3mm
Dia.of Axis
Φ32mm
Φ32mm
Φ42mm
Φ48mm
Φ48mm
Φ57mm
Thickness of Axis
3mm
3mm
3mm
4mm
4mm
4mm
Power supply:3P AC208-415V 50/60Hz
Charging Angle:Standard 45 Degree,30~60 Degree Are Also Available.
Charging Height:Standard 1.85M,1~5M Could Be Designed And Manufactured.
Square Hopper,With Vibrator,Round Hopper Could Be Designed And Manufactured.
Fully Stainless Steel Structure,Contact Parts SS304;
Remark: Other Charging Capacity Could Be Designed And Manufactured.
Deploy List
Motor:Able(Chinese brand)
Gear reducer:Shanghai Saini,Ratio:1:10
Vibrating motor:Oli-Wolong,Power:30W
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models. - LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
Our Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
