Laboratory Vacuum Biotechnology Pharmaceutical Dryers 70mm Shelf Spacing
Laboratory Vacuum Biotechnology Pharmaceutical Dryers 70mm Shelf Spacing
Laboratory Vacuum Biotechnology Pharmaceutical Dryers 70mm Shelf Spacing
Laboratory Vacuum Biotechnology Pharmaceutical Dryers 70mm Shelf Spacing
Specifications
Brand Name :
LTPM China
Model Number :
LTDG-CX Series
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Month
Delivery Time :
25 Days
Packaging Details :
Export Standard Wooden Case
Weight :
1200kgs
Item Name :
Freeze Dryer
Dry Area :
1.08 square meter
Tray Area :
1.02 square meter
The Total Volume of dehydration :
15 kg/batch
Shelf Spacing :
70 mm
Heating mode :
Conduction mode
Operation System :
Touch Screen
Description

Vacuum Freeze Dryer Machine Laboratory Pharmaceutical Plant Sublimator Powder Freeze Dryer

Freeze dryer is widely applied in pharmaceutical industry, biotechnology industry , biological science industry, materials science industry, chemical industry, food and agriculture industry etc. it is used to produce vaccines, drugs and permanently store biological tissues/organs.

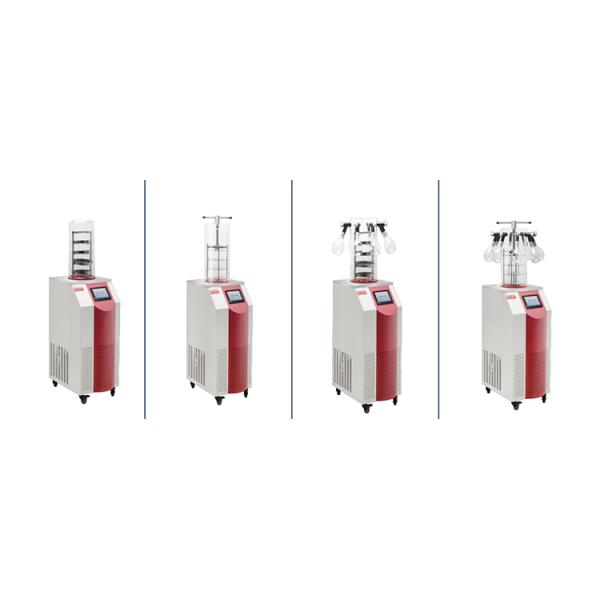

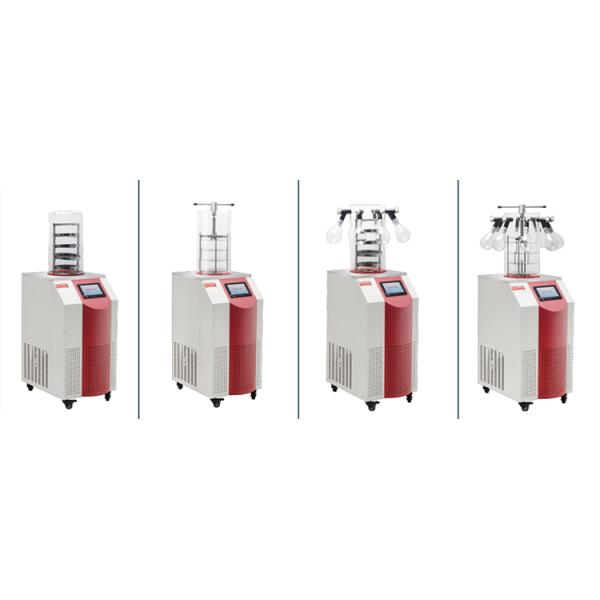

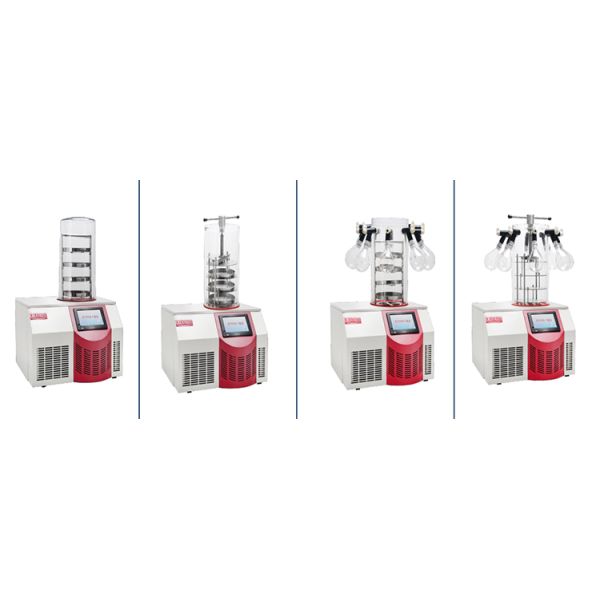

LTDG-CX Series freeze dryer is specialized designed for small batch test in laboratory.The Bench Top and Console freeze dryers are with advanced design and occupies smaller area.

Technical Parameters

Model LTDG-10S LTDG-10T LTDG-10P LTDG-10PT
Type Standard
chamber		 Stoppering
chamber		 Standard
chamber with
8 port manifold		 Standard
stoppering
chamber with
8 port manifold
Final condenser temp (℃) -55
Vacuum Degree (Pa) <10
Condenser volume (L) 9
Freeze drying area (m2) 0.12 0.09 0.12 0.09
Ice condenser capacity (Kg/24h) 3
Qty of shelf 4 3 4 3
Material loading capacity/shelf (ml) 300 300 300 300
Material loading capacity (ml) 1200 900 1200 900
Freeze drying time (h) 24 24 24 24
Manifold / / 8 pieces 8 pieces
USB Interface Y Y Y Y
Drying Chamber(standard) Transparent acrylic
Vacuum Pump Speed: 2L/S
Control System Microprocessor, touch screen
Power supply (V/Hz) 220V/50Hz,60Hz
Exterior dimension (WxDxH mm) 582*541*374/684
Penicillin bottle Φ22 260 195
Penicillin bottle Φ16 480 360
Penicillin bottle Φ12 920 690

Laboratory Vacuum Biotechnology Pharmaceutical Dryers 70mm Shelf Spacing

Laboratory Vacuum Biotechnology Pharmaceutical Dryers 70mm Shelf Spacing

Laboratory Vacuum Biotechnology Pharmaceutical Dryers 70mm Shelf Spacing

LTDG-10S LTDG-10T LTDG-10P LTDG-10PT

Model LTDG-12S LTDG-12T LTDG-12P LTDG-12PT
Type Standard
chamber		 Stoppering
chamber		 Standard
chamber with
8 port manifold		 Standard
stoppering
chamber with
8 port manifold
Final condenser temp (℃) -55 OR -80
Vacuum Degree (Pa) <10
Condenser volume (L) 9
Freeze drying area (m2) 0.12-0.18 0.09 0.12-0.18 0.09
Ice condenser capacity (Kg/24h) 4
Qty of shelf 4 3 4 3
Material loading capacity/shelf (ml) 300
Material loading capacity (ml) 1200 900 1200 900
Freeze drying time (h) 24
Manifold / / 8 pieces 8 pieces
USB Interface Y
Drying Chamber(standard) Transparent acrylic
Vacuum Pump Speed: 2L/S
Control System Microprocessor, touch screen
Power supply (V/Hz) 220V/50Hz,60Hz
Exterior dimension (WxDxH mm) 582*541*374/684
Penicillin bottle Φ22 260 195
Penicillin bottle Φ16 480 360
Penicillin bottle Φ12 920 690

Laboratory Vacuum Biotechnology Pharmaceutical Dryers 70mm Shelf Spacing

LTDG-12S LTDG-12T LTDG-12P LTDG-12PT

Model LTDG-18S LTDG-18T LTDG-18P LTDG-18PT
Type

Standard

chamber

Stoppering

chamber

Standard

chamber with

8 port manifold

Standard

stoppering

chamber with

8 port manifold
Final condenser temp (℃) -55 OR -80
Vacuum Degree (Pa) <10
Condenser volume (L) 23
Freeze drying area (m2) 0.18-0.27 0.135 0.18-0.27 0.135
Ice condenser capacity (Kg/24h) 6
Qty of shelf 4 3 4 3
Material loading capacity/shelf (ml) 450
Material loading capacity (ml) 1800 1350 1800 1350
Freeze drying time (h) 24
Manifold / / 8 pieces 8 pieces
USB Interface Y
Drying Chamber(standard) Transparent acrylic
Vacuum Pump Speed: 2L/S
Control System Microprocessor, touch screen
Power supply (V/Hz) 220V/50Hz,60Hz
Exterior dimension (WxDxH mm) 582*541*374/684
Penicillin bottle Φ22 350 270
Penicillin bottle Φ16 740 555
Penicillin bottle Φ12 1320 990

Laboratory Vacuum Biotechnology Pharmaceutical Dryers 70mm Shelf Spacing

LTDG-18S LTDG-18T LTDG-18P LTDG-18PT

If you have other models that need to be consulted, you can send an inquiry to us!

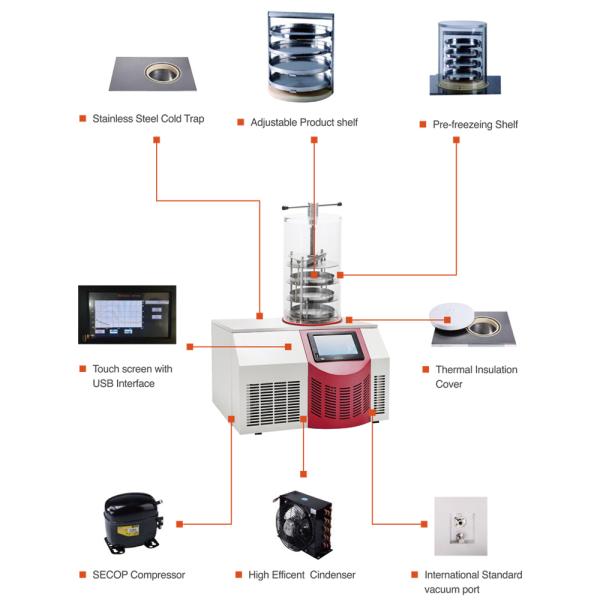

Product Highlights

Laboratory Vacuum Biotechnology Pharmaceutical Dryers 70mm Shelf Spacing

Humanized Design

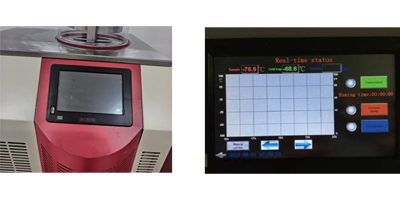

7" colorful touch panel, can display the product samples temperature, cold trap temperature and vacuum etc in digital and curve.

Touch panel with tilt design conforms to ergonomics and operate more comfortably.

Optional for gas interface: can inject inert gas

Optional for Cold trap electrical heating defrost function Optional for rack heating which is help to test in production Eutectic point testing, it can have sublimation temperature
