Lab Plant Sublimation Pharmaceutical Dryers 2L/S With Touch Screen
Lab Plant Sublimation Pharmaceutical Dryers 2L/S With Touch Screen
Lab Plant Sublimation Pharmaceutical Dryers 2L/S With Touch Screen
Lab Plant Sublimation Pharmaceutical Dryers 2L/S With Touch Screen
Lab Plant Sublimation Pharmaceutical Dryers 2L/S With Touch Screen
Lab Plant Sublimation Pharmaceutical Dryers 2L/S With Touch Screen
Lab Plant Sublimation Pharmaceutical Dryers 2L/S With Touch Screen
Lab Plant Sublimation Pharmaceutical Dryers 2L/S With Touch Screen
Specifications
Brand Name :
LTPM China
Model Number :
LTDG-CX Series
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Month
Delivery Time :
25 Days
Packaging Details :
Export Standard Wooden Case
Item Name :
Freeze Dryer
Operation System :
Touch Screen
Vacuum Pump :
Speed: 2L/S
Freeze drying time (h) :
24
Material loading capacity (ml) :
900,1200
Qty of shelf :
3-4
Freeze drying area (m2) :
0.09-0.12
Condenser volume (L) :
9
Description

Hot Sale Lab Use Pharmaceutical Plant Sublimator Powder Small Freeze Dryer Price

Lyophilization or freeze drying is a process in which water is frozen, followed by its removal from the sample, initially by sublimation (primary drying) and then by desorption (secondary drying). Freezedrying is a process of drying in which water is

sublimed from the product after it is frozen. It is a drying process applicable to manufacture of certain pharmaceuticals and biologicals that are thermolabile or otherwise unstable in aqueous solutions for prolonged storage periods, but that are stable in the dry state.

Technical Parameters

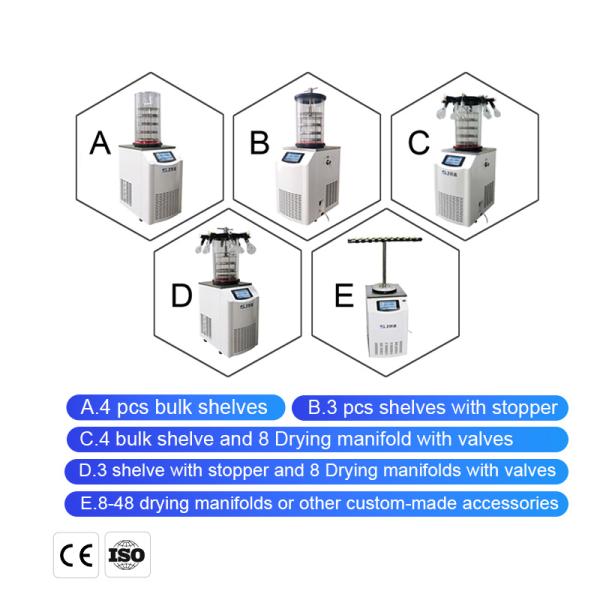

Model LTDG-10S LTDG-10T LTDG-10P LTDG-10PT
Type Standard
chamber		 Stoppering
chamber		 Standard
chamber with
8 port manifold		 Standard
stoppering
chamber with
8 port manifold
Final condenser temp (℃) -55
Vacuum Degree (Pa) <10
Condenser volume (L) 9
Freeze drying area (m2) 0.12 0.09 0.12 0.09
Ice condenser capacity (Kg/24h) 3
Qty of shelf 4 3 4 3
Material loading capacity/shelf (ml) 300 300 300 300
Material loading capacity (ml) 1200 900 1200 900
Freeze drying time (h) 24 24 24 24
Manifold / / 8 pieces 8 pieces
USB Interface Y Y Y Y
Drying Chamber(standard) Transparent acrylic
Vacuum Pump Speed: 2L/S
Control System Microprocessor, touch screen
Power supply (V/Hz) 220V/50Hz,60Hz

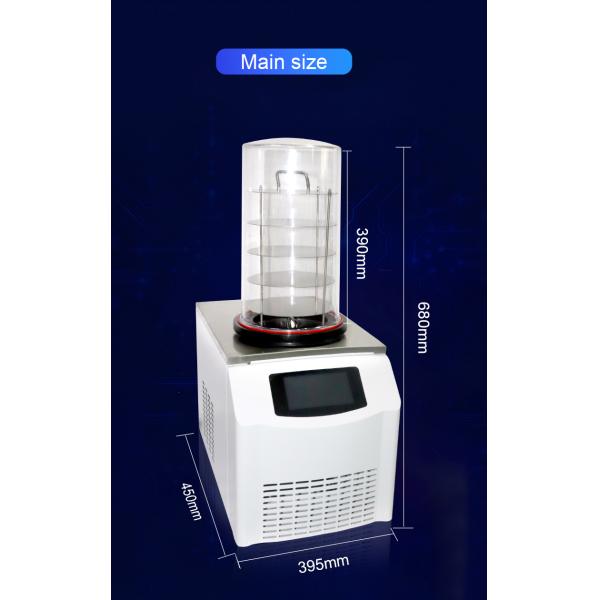

Exterior dimension (WxDxH mm) 582*541*374/684

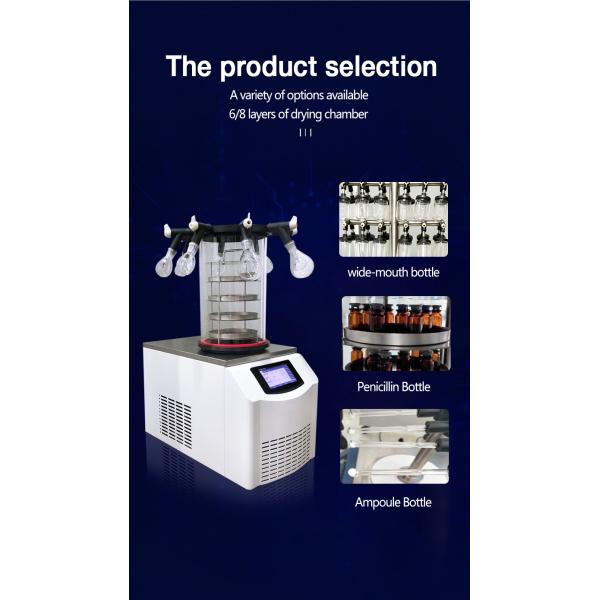

Penicillin bottle Φ22 260 195
Penicillin bottle Φ16 480 360
Penicillin bottle Φ12 920 690
Product details

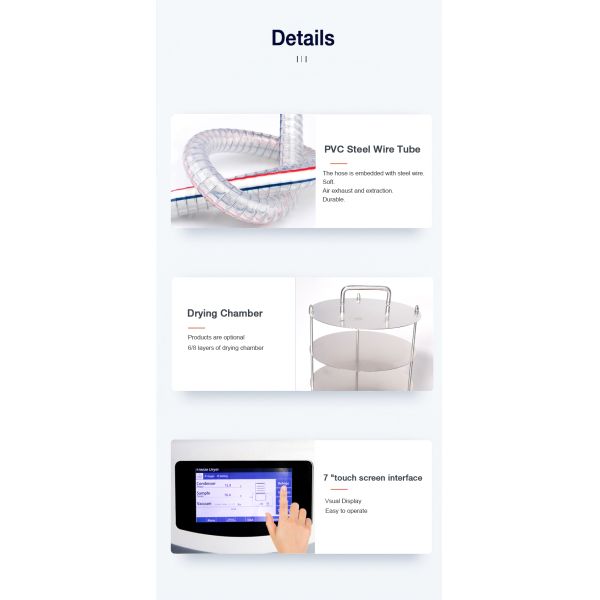

1. Imported compressor, high capability of water-capture, low noise. 2. Match the green environmental protection of international standard. 3. Big openings of cold trap, without coil pipe inside, have pre-freeze function. 4. Liquid crystal display, English(Chinese) interface, display drying curve. 5. Small volume, convenient operation. 6. Transparent bell-cap drying room is safe and visual. 7. The pre-cooling shelf can be used as draft tube, so it can accelerate the speed of drying. 8. International standard vacuum pump interface may connect varied vacuum pump. 9. Cold trap and operation panel are all stainless steel, corrosion-resistant and bright. 10. Communication interface is optional. 11. Valve with nitrogen is optional. 12. Dual-machine cascade refrigeration is optional, technology is mature and temperature is low(apply -80℃ device).
Lab Plant Sublimation Pharmaceutical Dryers 2L/S With Touch Screen
Lab Plant Sublimation Pharmaceutical Dryers 2L/S With Touch Screen
Lab Plant Sublimation Pharmaceutical Dryers 2L/S With Touch Screen
Lab Plant Sublimation Pharmaceutical Dryers 2L/S With Touch ScreenLab Plant Sublimation Pharmaceutical Dryers 2L/S With Touch Screen
