Foodstuff 3 Mould Bores Hard Gelatin Capsule Filler PLC Control
Foodstuff 3 Mould Bores Hard Gelatin Capsule Filler PLC Control
Foodstuff 3 Mould Bores Hard Gelatin Capsule Filler PLC Control
Foodstuff 3 Mould Bores Hard Gelatin Capsule Filler PLC Control
Foodstuff 3 Mould Bores Hard Gelatin Capsule Filler PLC Control
Foodstuff 3 Mould Bores Hard Gelatin Capsule Filler PLC Control
Specifications
Brand Name :
LTPM CHINA
Model Number :
NJP-Series
Certification :
CE
Place of Origin :
china
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
30% TT as deposit and 70% before shipping
Supply Ability :
25 sets/Month
Delivery Time :
In 25 days after receiving the deposit
Packaging Details :
Wooden Case
Brand :
LTPM
Quantity of :
3 mould bores
Noise standard :
<80dB(A)
bores :
3
filling dosage :
power,pellets
Dosing Precision :
<±4%
Description

5 Year Warranty NJP-D Series Automatic Hard Gelatin Capsule Filling Machine Auto Capsule Filler Machine For Powder

This type of NJP-D Series capsule filling machine CE identification can be widely used in many pharmaceutical enterprises. NJP-D Series capsule filling machine CE identification suit for the Chinese, Western medicine making enterprise, health care product enterprise, and etc. This kind of capsule making machine CE identification can rapidly improve the production efficiency, and the whole process of the capsule filling CE identification working can be completed automatically. NJP-D Series CE identification in accord with the related rules of GMP standards, totally meets the needs of the clients. NJP-D Series CE identification has zero harmful to human, all parts of the NJP-D Series equipment CE identification that people can touch are totally safe.
This NJP-D Series Capsule filling machine CE identification is straight forward to use, convenient to cleaning, quick to replace the mold of the machine. NJP-D Series CE identification can working continuously for a very long time, in 24 hours and 7 days. NJP-D Series CE identification don’t need to shut off it, just let it running. NJP-D Series CE identification is an ideal for mass capsule making production.

Foodstuff 3 Mould Bores Hard Gelatin Capsule Filler PLC Control

Technical Parameters

C Type Automatic Capsule Filling Machine
Model
NJP-400C
NJP-800C
NJP-1200C
NJP-2000C
NJP-3500C
Capacity
24000caps/h
48000caps/h
72000caps/h
120000caps/h
210000caps/h
NO.of
3
6
9
18
26
Capsule Size
000#-5# and safety capsule
Power
380/220V 50/60Hz 5kw
380/220V 50/60Hz 5kw
380/220V 50/60Hz 6kw
380/220V 50/60Hz 10kw
380/220V 50/60Hz 12kw
Dimensions
1080*1240*1950mm
1080*1240*1950mm
1180*1340*1980mm
1500*1350*2100mm
1386*1156*2100mm
Net Weight
800KG
800KG
1000KG
1600KG
2500KG
SNR
<75dB
<75dB
<75dB
<75dB
<75dB
D Type Automatic Capsule Filling Machine
Model
NJP-1200D
NJP-3000D
Capacity
72000caps/h
165000caps/h
NO.of mould bores
9
21
Capsule Size
000#-5# and safety capsule
Power
380/220V 50/60Hz 7KW
380/220V 50/60Hz 11KW
Dimensions
980*980*2100mm
1610*1210*2180mm
Net Weight
1000KG
2200kg
SNR
<70dB
<70dB

Product Featrues
1. The working station cam runs under the good lubricating condition,and maintains the inner lubrication of cam slot to a full extent,increasing the pressure pulverization oil pump,thus extends the operation life of the spare parts.
2. It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
3. The multi-bore dosing brings a precision dosage (it is controlled around ±3.5%); the good capsule applicability makes a higher capsule qualified rate (99%).It can be filled with the Chinese traditional medicine and the Western medicine.
4. Add the extra function of capsule control switch.(Control the capsule outside of the machine,it is more safely and quickly.

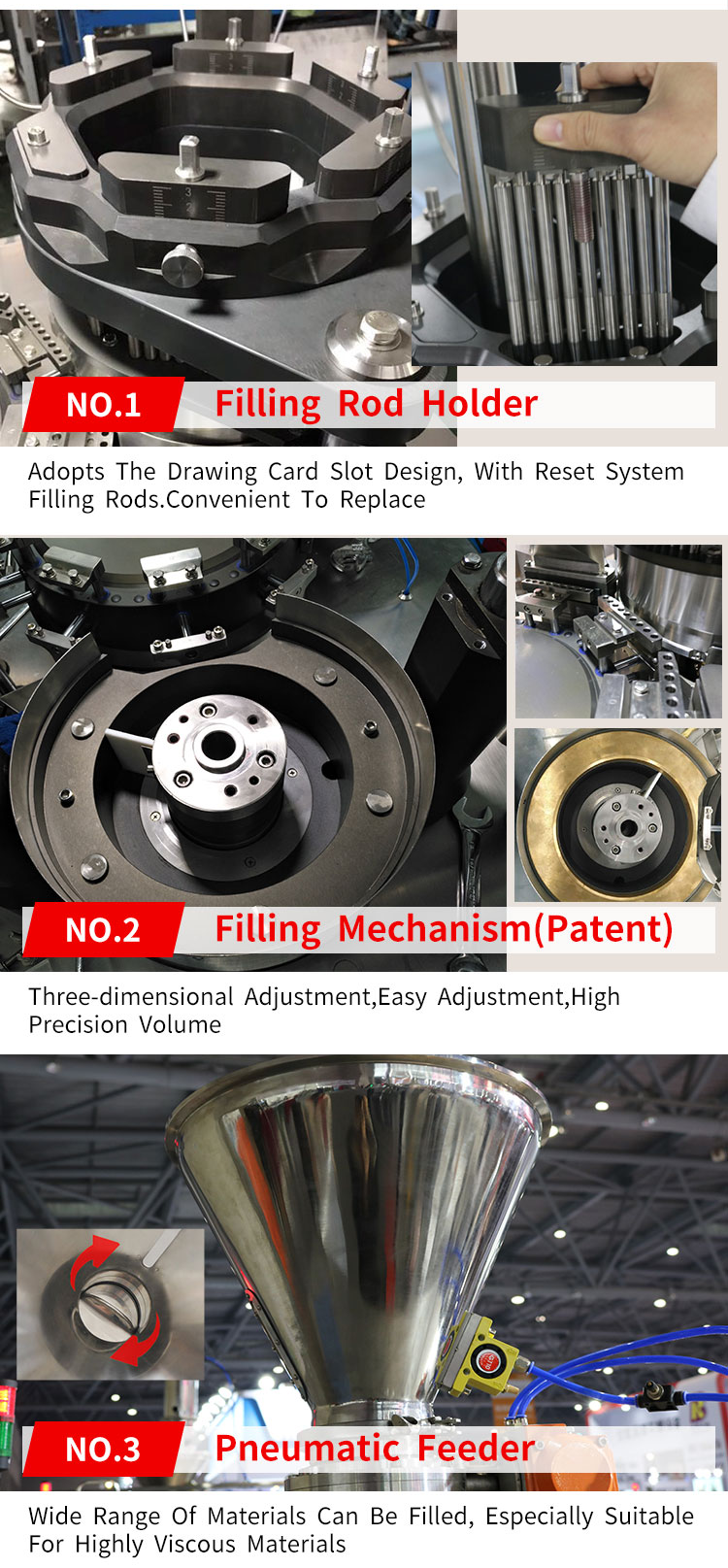

Machine Details

Foodstuff 3 Mould Bores Hard Gelatin Capsule Filler PLC Control

Applications

This machine is widely used in Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill),also can be used to fill vitamin, foodstuff and animal drug, etc
1.Touching-Screen, PLC program control panel with LCD.
2. Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
3. Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.
4. Easy speed selection and closed capsule length adjustment.
5. Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.
6. Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
7. Large cam mechanism keeps the rotating table of mould together with the whole equipment running with balance,and completely guarantees the machine operating with highest precision and accuracy.

Foodstuff 3 Mould Bores Hard Gelatin Capsule Filler PLC Control

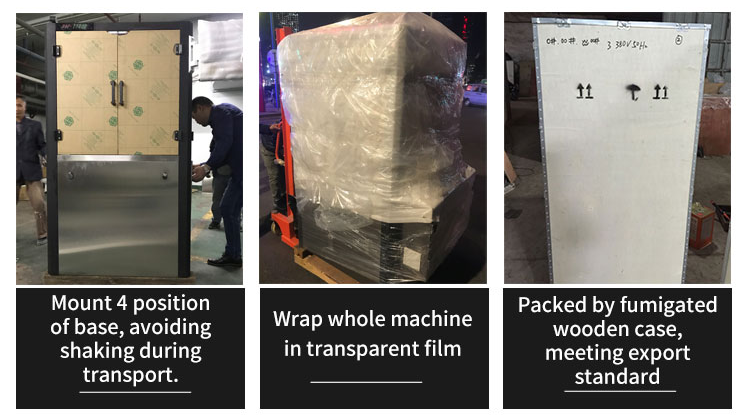

Machine Packing

Foodstuff 3 Mould Bores Hard Gelatin Capsule Filler PLC Control
