Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel
Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel
Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel
Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel
Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel
Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel
Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel
Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel
Specifications
Brand Name :
LTPM China
Model Number :
CTC Series
Certification :
CE, GMP
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T
Supply Ability :
25sets/month
Delivery Time :
25days
Packaging Details :
Export standard wooden case
Drying quantity per time (kg) :
25-200
Power of blower fan (kw) :
0.45-1.1
Consumed steam(L/min) :
5-40
Drying cart (pcs) :
0-2
Drying pan(pcs) :
24-96
Machine Size (mm) :
1550-2300*1000-2200*2044-2433
Upper and lower temp. difference :
±2
Service temperature :
electrical heating 50-350℃
Description

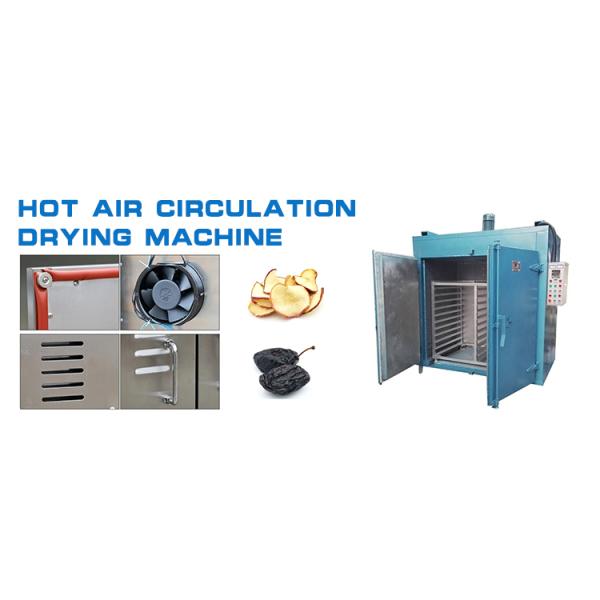

Ct-C series hot air circulating tray oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system;
The entire system is enclosed to make the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-40% of the present one;The highes heat efficiency can be up to 50%.

Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel

FEATURES

1. Most hot air is circulated in the oven;

2. The high efficiency is high and energy-saved;

3. Forced ventilatingfunction, adjustable air distribution plated inside the oven, materials can be dried uniformly;

4. Heating source: electricity, steam, electricity+steam, widely choice;

5. Low noise: < 75dB;

6. Temperature: controlled automatically;

7. Easy maintenance, wide application.

Technical Data

Model & spec. Drying quantity per time (kg) Power of blower fan (kw) Consumed steam(L/min) Drying cart (pcs) Drying pan(pcs) Machine Size (mm) Upper and lower temp. difference
CTC-0 25 0.45 5 0 24 1550*1000*2044 ±2
CTC-1 100 1.1 20 2 48 2300*1200*2433 ±2
CTC-2 200 1.1 40 2 96 2300*2200*2433 ±2

Applications

The products are mainly applied to tobacco, seafood, timber, flowers, herbs, seeds, and all kinds of dehydrated vegetables.

VEGETABLES AND FRUITS
Mushrooms, Pumpkin, Poria, Onion, Fern, Spinach, Wild Vegetables, Carrots, Celery, Beans, Cowpea, Chili, Tomatoes, Garlic, Ginger, Kiwi, Lychee, Longan , Apples, Persimmons, Roses, and etc.

HERBAL
American Ginseng, Red Ginseng, White Ginseng, Heterophylla, Ginseng, Angelica, Cordyceps Sinensis, Honeysuckle, Chrysanthemum, Schisandra, Wolfberry, Rehmannia, Cistanche, Astragalus, Dendrobium, Konjac, Platycodon Grandiflorum, Yam, and etc.

Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel

Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel
