1.5kw Automatic Cartoning Machine 130Cartons/Min Box Sealing
1.5kw Automatic Cartoning Machine 130Cartons/Min Box Sealing
1.5kw Automatic Cartoning Machine 130Cartons/Min Box Sealing
1.5kw Automatic Cartoning Machine 130Cartons/Min Box Sealing
1.5kw Automatic Cartoning Machine 130Cartons/Min Box Sealing
1.5kw Automatic Cartoning Machine 130Cartons/Min Box Sealing
Specifications
Brand Name :
LTPM China
Model Number :
ZH-130
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T, L/C, D/P
Supply Ability :
25 sets/Month
Delivery Time :
25days
Packaging Details :
Export Standard Wooden Case
Packaging Material :
Paper
Application :
Food, Beverage, Chemical, Cigarettes, Tobacco
Driven Type :
Electric
Dimension(L*W*H) :
4500*1210*1770mm
Weight :
2500 KG
Working pressure :
≥0.6mpa
Capacity :
30-130 Cartons/min
Description

ZH130 Automatic Cartoning Machine Carton Box Making Machine Automatic

This product is the new model which is our company further improved on the basis of advanced technologies at home and abroad. The machine is the high-tech products which integrates electricity, gas, light.
The product is suitable for boxing the Aluminum-Plastic blister card, medicine bottle, cosmetic, poker, electronic and daily.
The machine can finish automatically all jobs such as manual folding, paper box opening, the stuff boxing, batch number printing, box sealing and so on. It can be used alone, or be linked with the other device.

Technical Parameters

Model
ZH-130
ZH-130D
ZH-130P
ZH-350C
Speed
30-130/min
30-80/min
30-130/min
30-130/min
Carton Dimension
(65-240)*(30-180)*(15-75)mm
(75-220)*(50-160)*(15-70)mm
(65-240)*(30-120)*(15-70)mm
/
Instruction Book:
Unfolded instruction leaflet specification
(90-250)*(90-170)mm
(90-250)*(90-170)mm
(90-250)*(90-170)mm
/
Fold range
[1-4](Fold)
[1-4](Fold)
[1-4](Fold)
/
Working pressure
≥0.6mpa
≥0.6mpa
≥0.6mpa
≥0.6mpa
Air consumption
120-160L/min
200-240L/min
120-160L/min
/
Power supply
380V50HZ
380V50HZ
380V50HZ
220V50/60Hz
Motor power
1.5kw
1.5kw
1.5kw
3.2Kw
Dimension(mm)
3250*1210*1770
4800*1210*1770
4500*1210*1770
4200*960*1520mm
Weight
2000kg
2400kg
2500kg
1200Kg

Features

1, Adopt PLC automatic control system, frequency conversion. The electrical components adopt international famous brands.
2, Photoelectric system monitors all parts moving. If there is malfunction during the running, the wrong place will be shown and the machine can stop automatically.
3, Reject automatically the box which is lack of stuff or specification.
4, If the stuff or specification lack, the paper box will stop feeding.
5, Performance is stable. The operation is easy and convenience.
6, The machine can feed and box continually, the machine can instead of 15-20 the workload of workers.

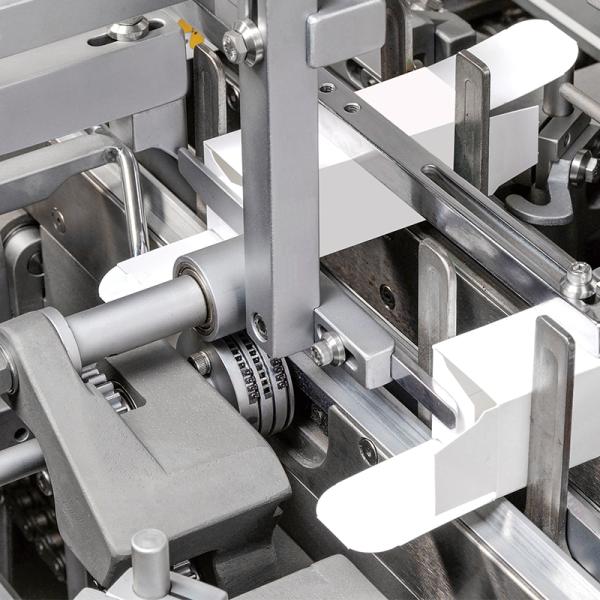

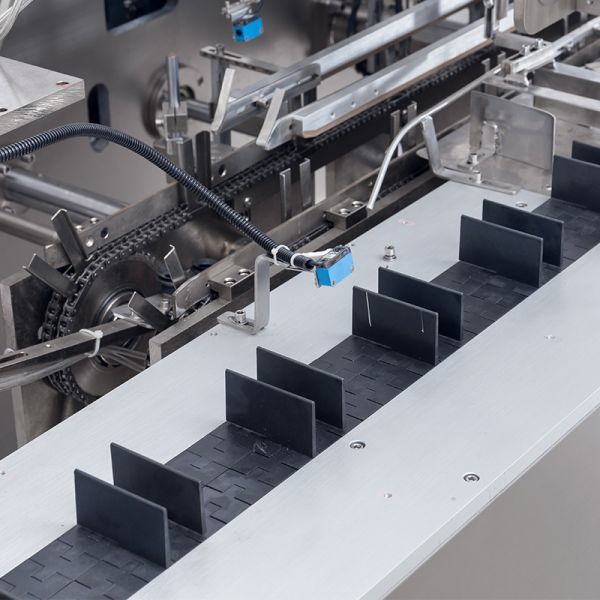

Detail
