Efficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator Coater
Efficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator Coater
Efficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator Coater
Efficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator Coater
Specifications
Brand Name :
SED Pharma
Model Number :
SED-120GFB
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
40 working days after receiving the deposit
Packaging Details :
Wooden case
Name :
Efficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator Coater
Item Name :
Fluid Bed Granulator Machine
Capacity :
30-120KG/Batch
Power for fan :
13Kw
Pressure of compressed air :
0.6 Mpa
Consumption of compressed air :
1.5M3/min
material :
stainless steel
key word :
Fluid Bed Drying Machine
Description

Efficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator Coater

Function feature and the principle of Fluid Bed Drying Machine

This machine is suitable for granulating, &coating for powder/granules/ in container by spray binder/coating material.

The principle of action is based on: Put the powder material into the fluid bed. The cold air is drawn into the fluid bed through the pre, middle and final filters (HEPA) and passes through the heating chamber behind the main machine, heated to the desired temperature by the heater.

The material is fluidized in the fluid bed regularly as turbojet. The binder for granulating/coating material is delivered to the nozzle by the liquid pump, which is sprayed to the fluidized material after being sheared into droplets by air.

The evaporating moisture is drawn out by the fan.

Product Parameters of Fluid Bed Drying Machine​

Number Item Unit specification
1 Diameter of the container mm 1500
2 Productive capacity Kg/batch 30-120
3 Power of fan Kw 13
4 Steam Pressure Kw 0.4-0.6Mpa
5 Steam Consumption Kg/h 240
6 Total power Kw 18.5
7 Pressure of compressed air Mpa 0.6
8 Consumption of compressed air M3/min 1.5
9 Dimension mm 3500*2550*4200mm

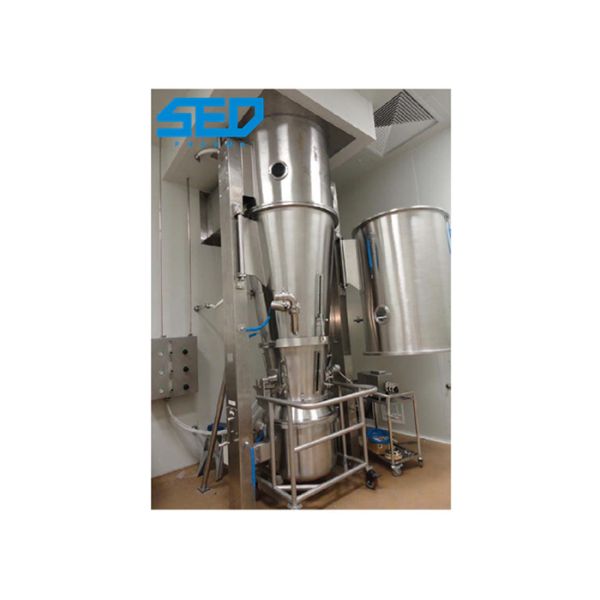

Product Show of Fluid Bed Drying Machine

Efficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator Coater

Application of Fluid Bed Drying Machine

Efficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator Coater
Efficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator CoaterEfficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator CoaterEfficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator CoaterEfficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator CoaterEfficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator Coater
