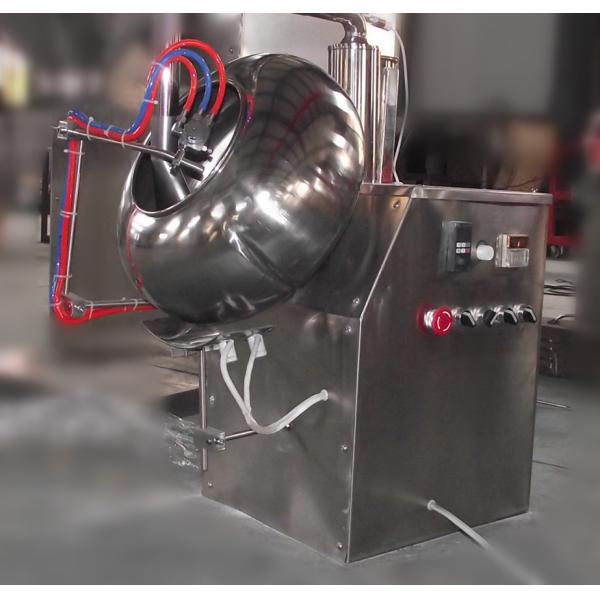

Auto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating Equipment
Auto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating Equipment
Auto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating Equipment
Auto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating Equipment
Auto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating Equipment
Auto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating Equipment
Specifications
Brand Name :
SED Pharma
Model Number :
SED-400JB
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
35 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Auto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating Equipment
Boiler diameter MM :
400
Capacity :
2-5 KG per load
Host machine power :
0.37kw
Fan motor :
60W
Clockwise angel :
15˚~45˚
Boiler rotating speed :
0-46r/min
Total weight :
120kgs
material :
stainless steel
key word :
Tablet Coating Machine
Description

Auto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating Equipment

Product Parameters of Coating Machine ​

Items Model SED-400JB
Max. tablet volume 2-5 Kg / time
Boiler diameter 400mm
Clockwise angle α (adjustable) 15˚~45˚
Boiler rotating speed 0-46r/min
Main motor power 0.37kw
Fan motor power 60 w
Electric oven wire power 1.5KW
Hot air outlet temperature (℃) 50~60
Machine weight 120KG

Working Principle of Coating Machine

This machine has the advantages of simple and easy operation, smooth, bright, delicate, one-sided saving accessories, maintenance is simple, it is the first choice of ideal equipment for experiment.

This machine suits for sugar and film coating for Chinese medicine and Western medicine. It consists by the host (sugar coating machine), controllable hot air system, automatic liquid gas spray system etc. The variable frequency speed of the main motor is adjustable.

The coating material will be coated in the surface of the tablet with high atomizing spray accessories automatically, the tablets in the coating pan for will be continuous complex movement, so that the coating liquid evenly wrapped in each tablet. There is hot air which can be controllable will dry the tablet.

Application of Coating Machine ​

Water nut type sugarcoating machine is mainly used to press shaped slice, pill and the coating of granules in pharmaceutical industry, and also used for candy manufacturing or coating in foodstuff industry.

Sugarcoated tablets after polishing coating have polished surface, which can prevent oxidation, damping or volatilization, in addition, it can envelop bad smell and enable the drug to be conveniently identified and slow dissolution in the intestines and stomach.

Products Show of Coating Machine

Auto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating Equipment

Auto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating Equipment

Application of Coating Machine

Auto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating Equipment

Auto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating EquipmentAuto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating EquipmentAuto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating EquipmentAuto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating EquipmentAuto Coater Tablet Coating Machine Water Nut Type Pharmaceutical Coating Equipment
