Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing
Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing
Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing
Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing
Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing
Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing
Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing
Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing
Specifications
Brand Name :
SED Pharma
Model Number :
SED-40PRG
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
35 days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing
Counting Accuracy :
More than 99%
Application :
Plastic Tube
Capping Accuracy :
More than 99%
Power :
0.8kw
Capacity :
40 tubes per minute
Power supply :
220V single phase
Dimension :
1800*1600*1650mm
material :
stainless steel
key word :
Effervescent Filling Machine
Description

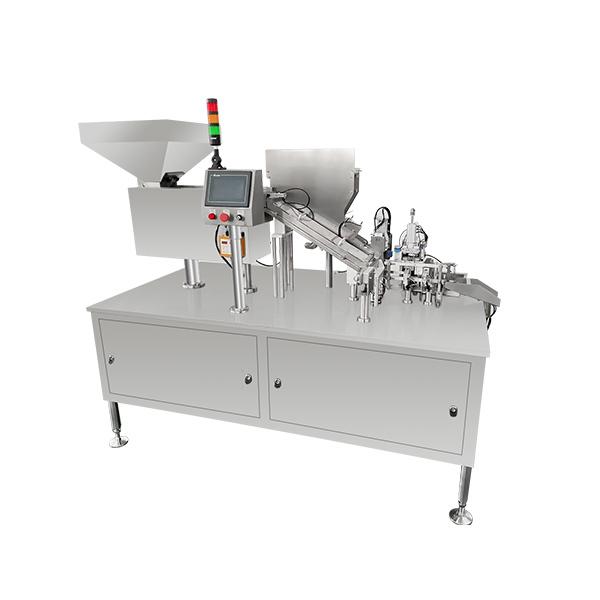

Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing

Product Overview of Effervescent Filling Machine​

SED-40PRG automatic plastic tube bottling machine realized mechanical and electrical integration. Automatic unscramble bottle, count, automatic lid, gland (or screw cap).

Degree of automation is the pioneer in our country. The machine adopts computer control, touch screen display with the Chinese menu.

Microcomputer control count and gland. It has some functions, such as count with bottle, no bottle no count; glands with bottle cap, no bottle cap no gland etc. It has simple operation, easy maintenance.

Product Parameters of Effervescent Filling Machine

Model No. LTPT-40
Capacity 40 bottles per minute
Counting Accuracy More than 99%
Applicable specifications Plastic Tube
Capping Accuracy More than 99%
Compressed air 0.5-0.6Mpa,0.28m3/min
Air supply Provide by the buyer
Power 0.8kw,220V single phase
Overall size 1800mm*1600mm*1650mm
Weight 480kgs

Feature of Effervescent Filling Machine​

1. Servo control makes it precise and convenient to adjust the filling amount by touch screen.

2. According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

3. The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.

4. Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.

5. Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.

Show of Effervescent Filling Machine

Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing

Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing

Application of Effervescent Filling Machine

Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing

Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet PackingHorizontal Type Plastic Tube Bottling Machine For Effervescent Tablet PackingHorizontal Type Plastic Tube Bottling Machine For Effervescent Tablet PackingHorizontal Type Plastic Tube Bottling Machine For Effervescent Tablet PackingHorizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing
