Stainless Steel Double Cone Blender 50L Dry Powder Mixing Equipment
Stainless Steel Double Cone Blender 50L Dry Powder Mixing Equipment
Stainless Steel Double Cone Blender 50L Dry Powder Mixing Equipment
Stainless Steel Double Cone Blender 50L Dry Powder Mixing Equipment
Specifications
Brand Name :
SED Pharma
Model Number :
SED-50SZH
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
30 Sets per Month
Delivery Time :
35 Days after receiving the advanced payment
Packaging Details :
Wooden Case
Name :
Stainless Steel Double Cone Blender 50L Dry Powder Mixing Equipment
Item Name :
Powder Mixing Machine
Charge Volume :
≤10（L）
Barrel Pressure :
-0.1～0.15（MPa）
Motor power :
0.75kw
Weight :
100kgs
material :
stainless steel
key word :
Powder Mixing Machine ​
Description

Stainless Steel Double Cone Blender 50L Dry Powder Mixing Equipment

Product Description of Powder Mixing Machine ​

It is suitable for mixing the powder and grain state materials in pharmacy, chemical, food, building materials and other industries.


Through the vacuum conveyor for the machine, send the powder or grain state materials into the double - taper container, or send the materials into the container manually.

As the container rotates continuously, the materials moves complexly in the container so as to get the uniform mixing.

Feature of Powder Mixing Machine

1. The powder material adopts the pneumatic large door structure, which has the advantages of fast discharge and no residue;


2. Manual butterfly valve or pneumatic butterfly valve is used for high-fineness materials or semi-fluid materials, and heating or cooling jackets can be configured;


3. There are two heating methods: electric heating and heat transfer oil heating;


4. The cooling process can directly inject cooling water into the jacket, the jacket heat exchange area is large, and the cooling speed is fast;


5. The ribbon-shaped blade is generally made into two layers or three layers. The outer helix gathers the material from both sides to the center, and the inner helix conveys the material from the center to the two sides, so that the material can form more eddy currents in the flow. , thereby speeding up the mixing speed and improving the mixing uniformity.

Main Parameter of Powder Mixing Machine ​

Volume 50(L)
Charge volume ≤10(L)
Barrel pressure -0.1～0.15(MPa)
Jacket pressure ≤0.3(MPa)
Power 0.75kw
Inverter 0.75kw
Wall thickness 2(mm)
Weight 100(kg)

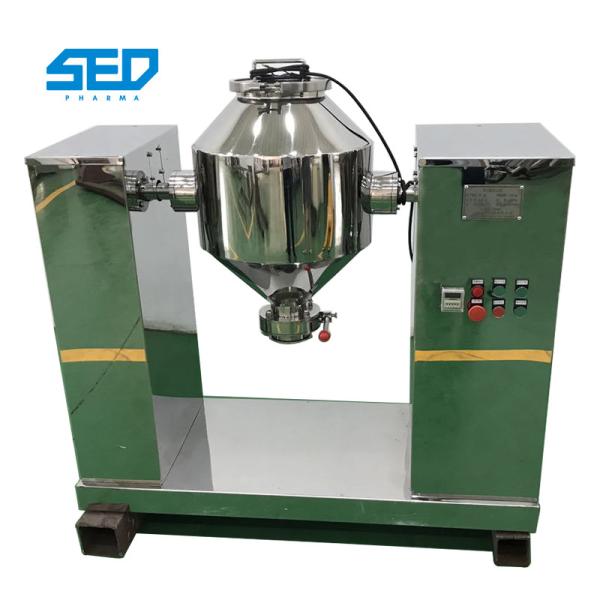

Product Show of Powder Mixing Machine ​

Stainless Steel Double Cone Blender 50L Dry Powder Mixing Equipment

Application of Powder Mixing Machine

Stainless Steel Double Cone Blender 50L Dry Powder Mixing EquipmentStainless Steel Double Cone Blender 50L Dry Powder Mixing EquipmentStainless Steel Double Cone Blender 50L Dry Powder Mixing EquipmentStainless Steel Double Cone Blender 50L Dry Powder Mixing EquipmentStainless Steel Double Cone Blender 50L Dry Powder Mixing EquipmentStainless Steel Double Cone Blender 50L Dry Powder Mixing Equipment
