PLC Control Fully Automatic Capsule Filling Machine With Germany Siemens Brand Touch Screen

Product Description of Capsule Filling Machine

SED-2000J automatic capsule filler processes the products for optimal productivity up to 200,000 capsules per hour, featuring low-maintenance operation, minimal downtime, and overall dependable production. Powder dosing uses the 5 stage tamping technology for an enhanced accuracy. Filling of pellets is available.

Capsules from the bunker are fed into the orienting device along the vertical guide.

Then they are transferred into special cells on the rotor. Here the capsule is separated, after what the bottom part comes to the filling position.

After filling the bottom part with the material, on next positions the non-separated capsules are rejected, and the filled bottom parts are joined with top parts, counted and taken away into the receiving box.

Detailed Parameters of Capsule Filling Machine ​

Working Principle of Capsule Filling Machine

The working principle of the automatic capsule filling machine is divided into two parts, which are the movement of the capsule and the filling of the medicine:

1. Movement of the capsule
During the filling process of the intermittent capsule filling machine, the movement of the capsule depends on the indexing box for intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering

disc hole. The hollow capsule is in the capsule hopper, the main board moves up and down, the capsule enters the capsule guide groove by its own gravity, and then the horizontal fork and the vertical plug make the capsule cap upward and the

capsule body downward into the upper and lower modules. The capsule body and capsule cap are separated under the action of the device, and then the module enters the powder filling station.

2. Drug filling
The sensor in the powder holding ring controls the screw feeding rod above it, and the medicine is continuously added to make the height of the powder in the powder holding ring constant. position, push the drug column into the capsule body. After that, it

enters into the capsule rejection, capsule locking, finished capsule discharge, module cleaning station in turn, and then enters a new round of station cycle, and the cycle begins again and again.

Main Features of Capsule Filling Machine

1. Function for filling powder, pellet, granule, pellet into capsule.

2. Automatic detect and diagnosis of lack of material, capsule and mechanical trouble, make alarm and stop automatically.

3. Displaying in-time speed and accumulative output.

4. Available for electronic signature and recording, and Industrial ethernet.

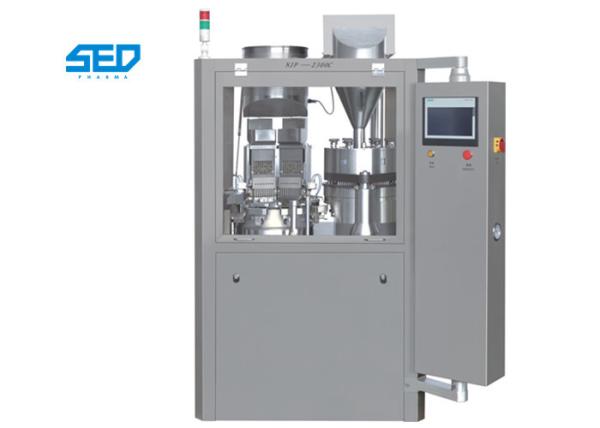

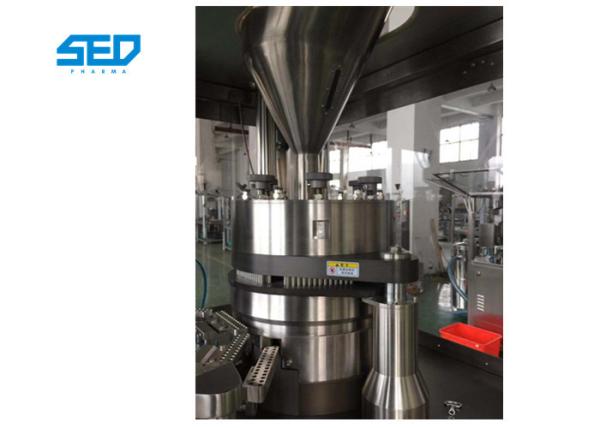

Product Show of Capsule Filling Machine

Application of Capsule Filling Machine
