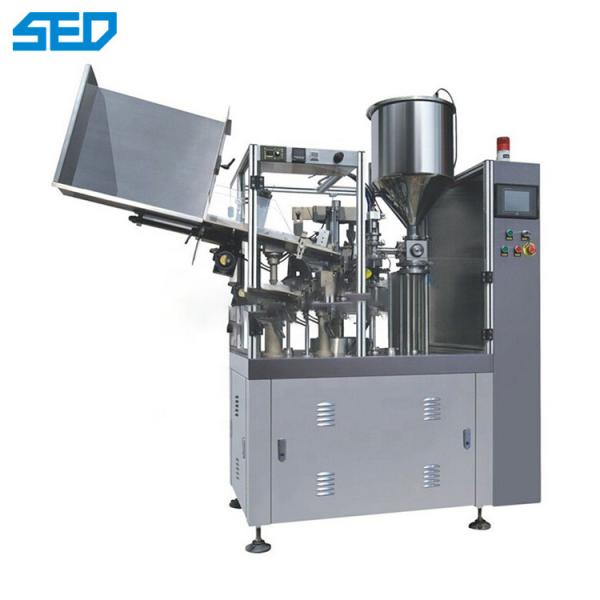

SED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing Machine
SED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing Machine
SED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing Machine
SED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing Machine
Specifications
Brand Name :
SED Pharma
Model Number :
SED-80RG-A
Certification :
CE
Place of Origin :
China
Payment Terms :
T/T,L/C, MoneyGram,Cash
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
30 Sets per month
Delivery Time :
50-60 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
SED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing Machine
Voltage :
220V/50Hz
Applied material of tube :
Aluminum tube
Filling range :
A:5-30ml B:30-150ml
Filling speed :
40-60 pcs/min
Tube pucking model :
16 pieces/set, customized according to client’s tube
Tube diameter :
φ19-φ50mm
Air compressor :
Pressure: 0.1-0.3Mpa, Air flow: 0.2m³/min
material :
stainless steel
key word :
Automatic Packing Machine
Description

SED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing Machine

Product description of Packing Machine

Full automatic composite tube filling and sealing machine, is mainly applied to filling and sealing of the container with aluminum tube as packing materials. Paste and liquid is filled by enclosed and semi-enclosed way, no leakage sealing.

Tube filling weight and capacity is consistent. Filling and sealing are finished completely atone time. This model is widely used in areas of pharmaceutical, cosmetic, food, chemical, etc.

main parameter of Packing Machine

No Item Description Remark
1 Voltage 220V/50Hz Can be customized
2 Applied material of tube Aluminum tube Can be customized
3 Filling range A:5-30ml B:30-150ml Can be customized
4 Filling speed 40-60 pcs/min
5 Tube pucking model 16 pieces/set, customized according to client’s tube
6 Tube diameter φ19-φ50mm Can be customized
7 Hopper 50L
8 Air compressor Pressure: 0.1-0.3Mpa, Air flow: 0.2m³/min
9 Motor 1.5kw
10 Filling accuracy ±1%
11 Dimension 1750×950×1850mm
12 Overall weight 250kg

main features of Packing Machine

1. This model adopts mechanical structure, smooth and fast operation, high efficiency, low noise, simple structure, convenient operation and maintenance with low fault.

2. Parts touching material adopt high quality stainless steel (commonly adopts SUS304, SUS316L for medical).

3. Particular valve structure realizes double applied to paste and liquid filling in this machine.

4. It also has the advantages of firm sealing, high speed, automatic and precise position, PLC control system, and various sealing machine makes the sealing end in different shaped. Assembled with dust-proof of organic glass.

Control system adopts advanced intelligent HMI system, all parameter can be dynamic displayed, adjusted and set on large touch-screen, including motor speed, production speed, etc.

SED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing MachineSED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing MachineSED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing MachineSED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing MachineSED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing MachineSED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing Machine
