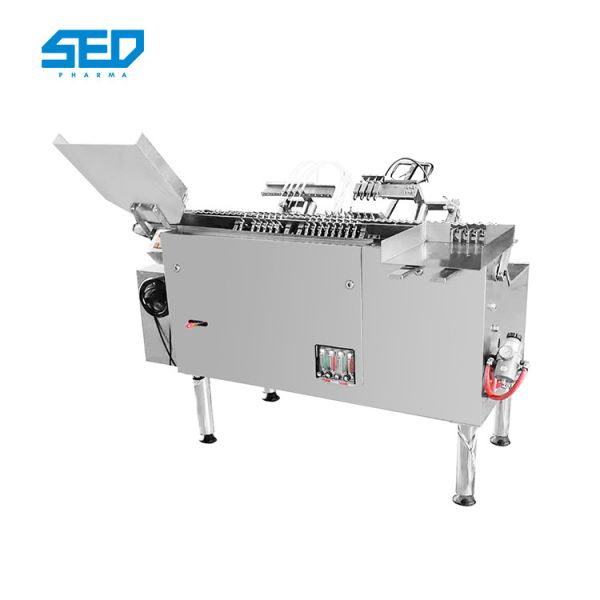

Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles
Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles
Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles
Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles
Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles
Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles
Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles
Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles
Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles
Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles
Specifications
Brand Name :
SED Pharma
Model Number :
SED-4AGL
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
50-60 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles
Filling Range :
5-10ml Glass Ampoules
Motor Power :
0.7kw
Material :
Contact parts SS316L,Non contact parts SS304
Overall Size :
1650*1100*1300mm
Filling Station : :
4 Nozzle Filling ,4 Nozzles Pregasing，4 for post gasing
Burner Head :
Preheating and Sealing for 8 heads
Laminar Air Flow Type :
Exhaust Fumes extractor with SS pipe
material :
stainless steel
key word :
Ampoule Filling And Sealing Machine
Description

Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles

Product Description of Filling And Sealing Machine

It is suitable for pharmaceutical factory ampoule filling, sealing and drawing. This machine is a 4-station stepping transmission system. Each group of 4 bottles is sent to each process point to complete the bottle delivery, nitrogen filling, and medicine filling. Post-nitrogen filling, preheating, drawing and sealing.

Product Parameters of Filling And Sealing Machine​

Filling Range
5-10ml Glass Ampoules
Capacity
6000-8000 ampoules/hour
Motor Power
0.7kw
Material
Contact parts SS316L,
Non contact parts SS304
Overall Size
1650*1100*1300mm
Filling Station :
4 Nozzle Filling ,
4 Nozzles Pregasing
4 for post gasing
Burner Head
Preheating and Sealing for 8 heads
Laminar Air Flow Type
Exhaust Fumes extractor with SS pipe

Advantages of Filling And Sealing Machine​


The rotating cam of this machine is cast steel, which is not easy to wear. The rotating cam is guaranteed for 3 years. If there is wear within 3 years, the manufacturer is responsible for replacing it for free.

In addition, the exit pupil of the drawing head is one, which reduces the amount of oxygen and liquefied gas The lowest level also enables customers to reduce costs.

Products Show of Filling And Sealing Machine

Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles

Application of Filling And Sealing Machine

Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles

Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 NozzlesPharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 NozzlesPharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 NozzlesPharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 NozzlesPharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles
