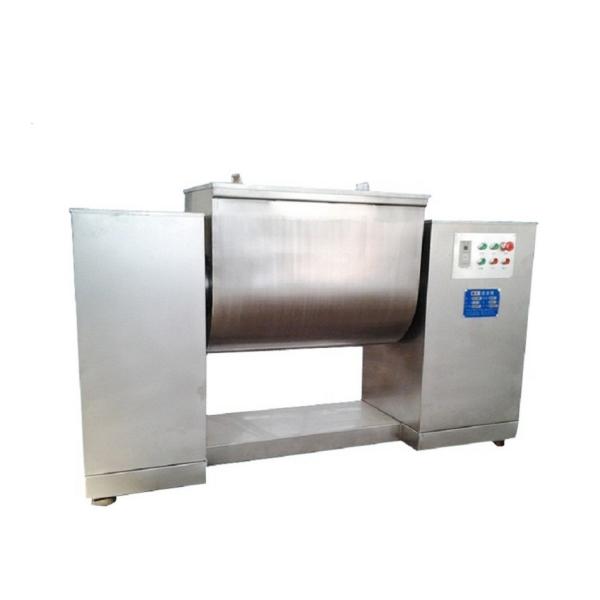

Groove Type Pharmaceutical Powder Mixer Machine Planet Mixing Machine 200L For Granule
Groove Type Pharmaceutical Powder Mixer Machine Planet Mixing Machine 200L For Granule
Groove Type Pharmaceutical Powder Mixer Machine Planet Mixing Machine 200L For Granule
Groove Type Pharmaceutical Powder Mixer Machine Planet Mixing Machine 200L For Granule
Groove Type Pharmaceutical Powder Mixer Machine Planet Mixing Machine 200L For Granule
Groove Type Pharmaceutical Powder Mixer Machine Planet Mixing Machine 200L For Granule
Specifications
Brand Name :
SED Pharma
Model Number :
SED-200CH
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
40 working days after receiving the deposit
Delivery Time :
30 Sets per month
Packaging Details :
Wooden Case
Name :
Groove Type Pharmaceutical Powder Mixer Machine Planet Mixing Machine 200L For Granule
Dimension :
1360×600×1200mm
Weight :
400KGS
Volume :
200L
Power of Inclined motor (kw) :
0.8
Input :
100KGS
material :
stainless steel
key word :
Powder Mixer Machine
Description

Groove Type Pharmaceutical Powder Mixer Machine Planet Mixing Machine 200L For Granule

Product Description of Powder Mixer Machine

Groove Type mixer is widely used to mix powder or moisture materials and make the different proportion of main and supplementary materials mixed evenly.

All the parts touched with materials are made of stainless steel. The clearance between blades and vessel body is small so that there is no dead corner during mixing.

Sealed devices are installed at the two ends of mixing shaft to prevent the leakage of materials. It is widely used in the industries of pharmacy, chemical, food, etc.

Technical Parameters of Powder Mixer Machine

Volume (L) 200
Power of agitation motor (kw) 3.5
Rotation speed of agitation (r/min) 24
Power of Inclined motor (kw) 0.8
Input(kgs) 100
Weight (kg) 400
Overall dimensions (mm) 1360×600×1200

Product Show of Powder Mixer Machine

Groove Type Pharmaceutical Powder Mixer Machine Planet Mixing Machine 200L For Granule

Main Features of Powder Mixer Machine ​

Trough Type Mixer is suitable for Pharmaceutical, Chemical, Food and other industries, primarily dealing with evenly mixed powder or pasty materials.

The machine works by adoption of mechanical drive as it can improve the quality of each batch of mixture with high degree of uniformity.

Trough Type Mixer rotates "S" type stirring paddle and turn over raw materials back and forth. The whole machine is made of stainless steel makes the machine in good condition of corrosion resisted.

The mixing paddle is movable. When cleaning and changing material, it can be taken out by removing three nuts and moving two paddle vanes to the left and right, and then the paddle vanes and the trough can be cleaned thoroughly.

With electrical control, the machine can be operated easily. The mixing time can be set and the machine will be stopped when the time is up to raise the mixing quality of each batch.

Application of Powder Mixer Machine

Groove Type Pharmaceutical Powder Mixer Machine Planet Mixing Machine 200L For Granule

Groove Type Pharmaceutical Powder Mixer Machine Planet Mixing Machine 200L For GranuleGroove Type Pharmaceutical Powder Mixer Machine Planet Mixing Machine 200L For GranuleGroove Type Pharmaceutical Powder Mixer Machine Planet Mixing Machine 200L For GranuleGroove Type Pharmaceutical Powder Mixer Machine Planet Mixing Machine 200L For GranuleGroove Type Pharmaceutical Powder Mixer Machine Planet Mixing Machine 200L For Granule
