Wet Type 30L Powder Granulator Machine Granulation Equipments For Pharmaceuticals
Wet Type 30L Powder Granulator Machine Granulation Equipments For Pharmaceuticals
Wet Type 30L Powder Granulator Machine Granulation Equipments For Pharmaceuticals
Wet Type 30L Powder Granulator Machine Granulation Equipments For Pharmaceuticals
Specifications
Brand Name :
SED Pharma
Model Number :
SED-30SZ
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
40 working days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Wet Type 30L Powder Granulator Machine Granulation Equipments For Pharmaceuticals
Weight :
400KGS
Output :
3-10kgs/batch
Volume :
30L
Working capacity :
6-20L
Mixing power :
3KW
material :
stainless steel
key word :
Powder Granulator Machine​
Description

Wet Type 30L Powder Granulator Machine Granulation Equipments For Pharmaceuticals

Product Description of Powder Granulator Machine​

The machine adopts horizontal cylinder structure, its structure reasonable.

Air filled seal shaft for to drive. When washing, it can be changed to water.

Fluidized Granulation, the granule is around ball shape. Its flow ability is good.

Compared to traditional process, 25% of adhesive can be reduced and the drying time is short.

The dry mixing time is 2 minutes and the granulating time is 1-4 minutes. Compared to the traditional process, 4-5 times of efficiency is raised.

Dry mixing, humid mixing and granulating are finished in the same sealed container. It is in conformity with the requirements of GMP.

The whole operation has strict safe and protective measures.

Jacket type might be adopted on request.

The powder raw material and adhesive in a cylinder are fully mixed at the bottom to become a humid soft material. Then it is cut by high-speed cutter and become uniform granules.

Product Parameters of Powder Granulator Machine​

Volume 30L
Working capacity 6-20L
Output 3-10kgs/batch
Operating time Mixing:2min Granulation:7-14min/batch
Size of the finished granule Φ0.14-Φ1.5mm(12mesh-100mesh)
Mixing Speed 50-500rpm
Mixing power 3kw
Granulation Speed 50-3000rpm
Granulation power 1.1kw
Air compressor 0.2m³ (prepared by buyer)
Inlet of cooling water and compressed air Φ10mm
Dimension 1450×530×1340mm
Weight 400kg

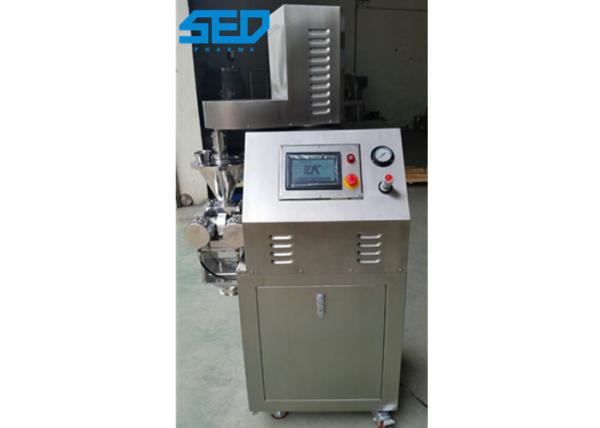

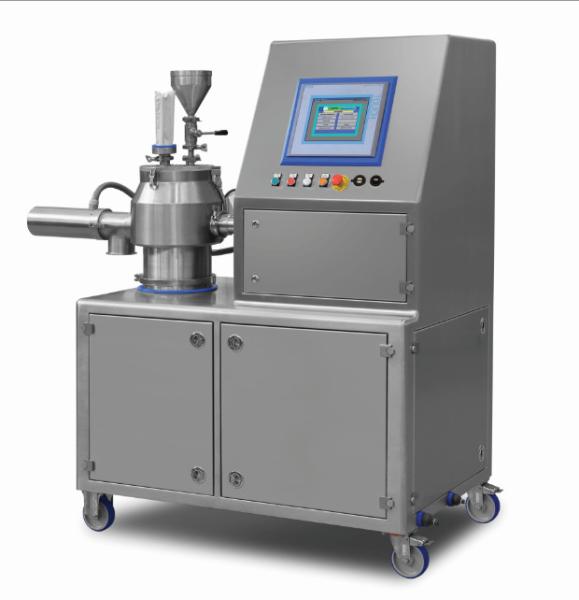

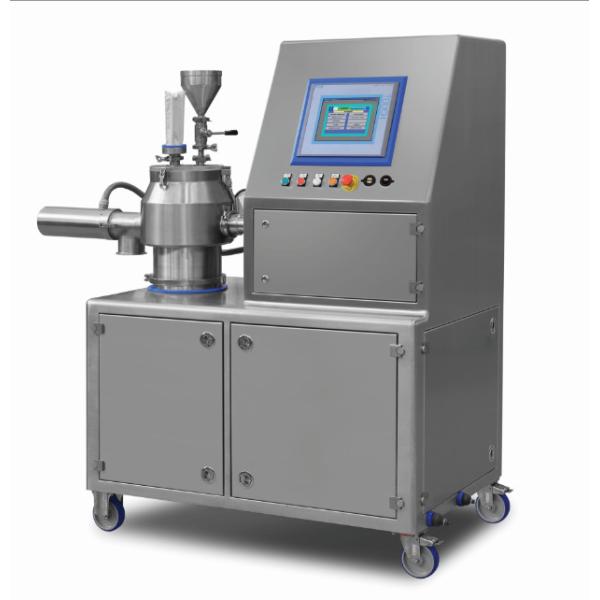

Products Show of Powder Granulator Machine​

Wet Type 30L Powder Granulator Machine Granulation Equipments For Pharmaceuticals

Application of Powder Granulator Machine​

This machine is used in the pharmaceutical, food, punch, chemical, solid beverage and other industries to make the required granules from the stirred materials, especially for the materials with high viscosity.

Wet Type 30L Powder Granulator Machine Granulation Equipments For Pharmaceuticals
