600L Pharmaceutical Powder Granulator Machine Wet Type Granulator Equipment
600L Pharmaceutical Powder Granulator Machine Wet Type Granulator Equipment
600L Pharmaceutical Powder Granulator Machine Wet Type Granulator Equipment
600L Pharmaceutical Powder Granulator Machine Wet Type Granulator Equipment
Specifications
Brand Name :
SED Pharma
Model Number :
SED-600SZ-A
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
40 working days after receiving the deposit
Delivery Time :
30 Sets per month
Packaging Details :
Wooden Case
Name :
600L Pharmaceutical Powder Granulator Machine Wet Type Granulator Equipment
Material :
Stainless Steel
Dimension :
2100x1600x2300 mm
Weight :
1800kgs
Volume :
600L
Mixing Speed :
2-120RPM
Mixing Power :
30KW
key word :
Powder Granulator Machine
Description

600L Pharmaceutical Powder Granulator Machine Wet Type Granulator Equipment

Product Parameters of Powder Granulator Machine

Item Unit Model/specification
Volume of Container Liter 600
Capacity Kg/batch 200-250
Mixing speed r,p,m 2-120
Mixing power kw 30
Cutting speed r.p,m 100-2500
Cutting power kw 11
Pressure of compressed air Map 04-0.6
Consumption of compressed air M3/min 06
Mesh Mesh 20-80
Size: Mm 2100x1600x2300
Weight Kg 1800

Application of Powder Granulator Machine



The machine is a process machine widely applied for solid preparation production in the pharmaceutical industry. It has such functions as mixing, granulating, etc. It is widely used in such industries as medicine, food, chemical industry, etc.

Working Principle of Powder Granulator Machine​


The powder materials are fed into the mixing vessel through the dispensing system. Through rotation and push by the mixing paddle at the bottom, they first move under a fluidizing status and get sufficient mixing.

Then the adhesive is injected through the pressure spray gun to turn the dry powders into wet and soft materials. Meanwhile, they are made into even wet granules under the double actions of the mixing paddle and the high-speed cutter on the side wall.

Function Feature And The Principle Of Action

This machine is used for size reduction or milling of Dry or wet granules. Granules fed through top inlet hopper, flow by gravity in to granulating chamber. The principe of the granulating operation is to apply continuous shearing force to press out and form granules through sieve screen. The granules are subsequently presented through bottom discharge port into product container.

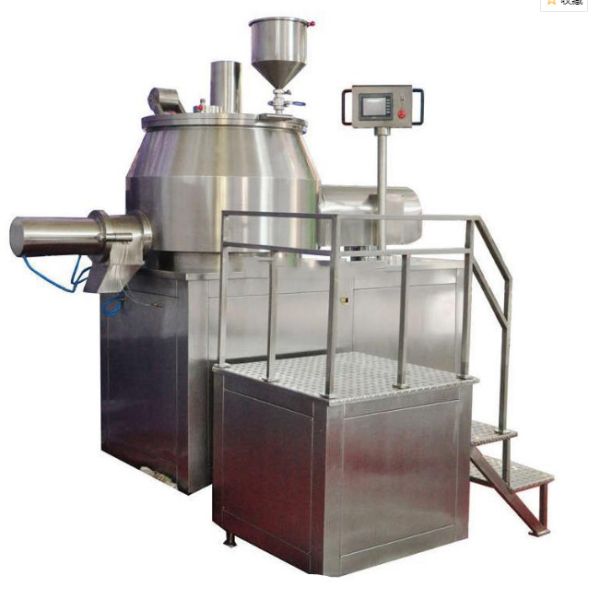

Products Show of Powder Granulator Machine

600L Pharmaceutical Powder Granulator Machine Wet Type Granulator Equipment
