SED -1000EH Powder Mixer Machine Fertilizer Powder Blending Machine CE
SED -1000EH Powder Mixer Machine Fertilizer Powder Blending Machine CE
SED -1000EH Powder Mixer Machine Fertilizer Powder Blending Machine CE
SED -1000EH Powder Mixer Machine Fertilizer Powder Blending Machine CE
SED -1000EH Powder Mixer Machine Fertilizer Powder Blending Machine CE
SED -1000EH Powder Mixer Machine Fertilizer Powder Blending Machine CE
Specifications
Brand Name :
SED Pharma
Model Number :
SED-1000EH
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
30 Sets per Month
Delivery Time :
35 Days after receiving the advanced payment
Packaging Details :
Wooden Case
Name :
SED -1000EH Powder Mixer Machine Fertilizer Powder Blending Machine CE
Barrel capacity(L) :
1000
Max loading capacity(L) :
600
Max loading capacity(kg) :
300
No. of swing & rotation (r/min) :
19.8
Motor power(kw) :
3
overall dimensions(mm) :
130×2980×1894
key word :
Powder Blending Machine
Description

SED -1000EH Powder Mixer Machine Fertilizer Powder Blending Machine CE

Product Description of Powder Blending Machine

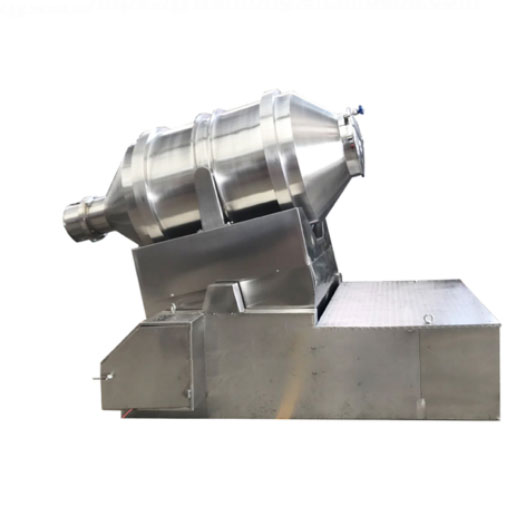

Powder Blending Machine mainly consists of three big parts namely, rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack, supported by four wheels and its axial fixation is done by two stop wheels.

Two of four wheels are driven by rotating power system to made the cylinder rotate. The swinging bar which is mounted on the frame and the swinging rack is supported on the frame

Technical Parameter of Powder Blending Machine

Model SED-1000EH
Barrel capacity(L) 1000
Max loading capacity(L) 600
Max loading capacity(kg) 300
No. of swing & rotation(r/min) 19.8
Motor power(kw) 3
overall dimensions(mm) 130×2980×1894
Total weight(kg) 1700
Barrel weight(kg) 240

Features of Powder Blending Machine

It is used for the high uniformity mixing of powder, granular materials in the industries such as pharmacy, chemical, food, light industry, electron, machine, mining and metallurgy, national defense and research units

The mixing tube is moved with two-direction at same time. One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack.

Materials to be mixed will be mixed from left to right and vice versa when the cylinder is swinging. As a result of these two motions, materials can be mixed fully in a short time.

All parts in the tube is circular arc with precision polishing.

Product Show of Powder Blending Machine

SED -1000EH Powder Mixer Machine Fertilizer Powder Blending Machine CE

Application of Powder Blending Machine


SED -1000EH Powder Mixer Machine Fertilizer Powder Blending Machine CESED -1000EH Powder Mixer Machine Fertilizer Powder Blending Machine CESED -1000EH Powder Mixer Machine Fertilizer Powder Blending Machine CESED -1000EH Powder Mixer Machine Fertilizer Powder Blending Machine CESED -1000EH Powder Mixer Machine Fertilizer Powder Blending Machine CESED -1000EH Powder Mixer Machine Fertilizer Powder Blending Machine CE
