Automatic Plastic Ampoule Filling Sealing Liquid Filling Machine
Automatic Plastic Ampoule Filling Sealing Liquid Filling Machine
Specifications
Brand Name :
SED Pharma
Model Number :
SED-120SP
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
30 Sets per Month
Delivery Time :
35 Days after receiving the advanced payment
Packaging Details :
Wooden Case
Name :
Automatic Plastic Ampoule Filling Sealing Liquid Filling Machine
Automatic grade :
Automatic
Driven type :
Electric
Condition :
New
Type :
washing filling capping monoblock liquid filling machine
Application :
Food,Chemical,Beverage,Medical,Commodity
Packaging type :
Bottles
Overall Dimension :
1300*1100*750mm
material :
stainless steel
key word :
Liquid Filling Machine​
Description

Plastic Ampoule Filling Sealing Automatic Water Filling Machine Simple Operation

Product Description of Liquid Filling Machine​

SP series automatic cup filling and sealing machine is suitable for filling and sealing various liquid and solid materials, such as: jelly yogurt, juice, condiments, sauces, soy milk, noodles and powdered materials and etc.

This machine is a full automatic production line with such processes as automatic cup-loading, filling, photoelectric pattern proofreading, heat sealing, cutting, leftover film collecting and cup discharging.


We can also add thegen filling, cap covering, air purifying, date printing ,Cup discharging and conveying, PLC control system.

Product Parameters of Liquid Filling Machine​

Model SED-120SP
Max Forming Depth 12mm
Speed 0-25cuttings/min
Material PVC/PE (0.2-0.4)*120mm
Filling volume 2-20ml
Total Power 3.5kw
Power Supply 380V 50HZ(Depends on your requirement)
Weight 300kgs
Overall Dimension 1300*1100*750mm

Advantages of Liquid Filling Machine

This machine is a full automatic production line with such processes as automatic cup-loading→filling→photoelectric pattern proofreading→heat sealing→cutting→leftover film collecting → cup discharging.
The machine is suitable for filling and sealing various liquid and solid material
The machine can also add the other functions according to the client's requirements, such as pulp filling,CIP cleaning,automatic level control,air blowing and dust-sucking,bacuuming and nitrogen filling,cap covering,air purifying,date printing , cup discharging and conveying,PLC control system.
The machine is integrated with pneumatic, mechanical drive and PLC control.
The filling head will stop filling if no pouches available.
The touch screen can be set with two language version.

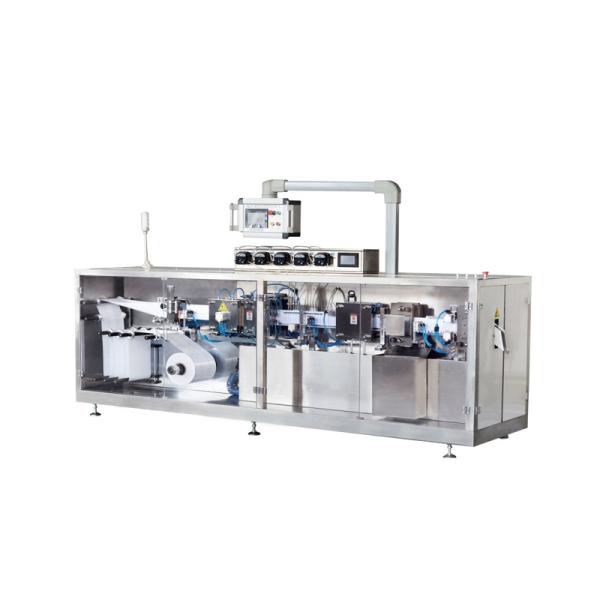

Products Show of Liquid Filling Machine

Automatic Plastic Ampoule Filling Sealing Liquid Filling Machine

Application of Liquid Filling Machine

Automatic Plastic Ampoule Filling Sealing Liquid Filling Machine

Automatic Plastic Ampoule Filling Sealing Liquid Filling MachineAutomatic Plastic Ampoule Filling Sealing Liquid Filling MachineAutomatic Plastic Ampoule Filling Sealing Liquid Filling MachineAutomatic Plastic Ampoule Filling Sealing Liquid Filling MachineAutomatic Plastic Ampoule Filling Sealing Liquid Filling Machine
