Electric Customizable Alu Alu Blister Packing Machine
Electric Customizable Alu Alu Blister Packing Machine
Electric Customizable Alu Alu Blister Packing Machine
Electric Customizable Alu Alu Blister Packing Machine
Electric Customizable Alu Alu Blister Packing Machine
Electric Customizable Alu Alu Blister Packing Machine
Electric Customizable Alu Alu Blister Packing Machine
Electric Customizable Alu Alu Blister Packing Machine
Electric Customizable Alu Alu Blister Packing Machine
Electric Customizable Alu Alu Blister Packing Machine
Specifications
Brand Name :
SED Pharma
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
35 Days after receiving the advance payment
Packaging Details :
Wooden Case
Name :
Electric Customizable Alu Alu Blister Packing Machine
Keywords :
Blister packing machine,Alu alu blister packing machine,blister machine
Total Power :
380V/220V 50Hz 1.8kw
Main Motor Power :
0.75
PVC Rigid Sheet :
0.15-0.5×80
Dialysis Paper :
50-100g×80
Overall Dimensions :
1400×460×950（L×W×H）
Weight :
450kg
material :
stainless steel
key word :
Blister Packaging Machine​
Description

Product introduction of Blister Packaging Machine​

This machine adopts photoelectric control system, automatic feeding device for duralumin packaging and automatic blanking device for scrap edge to ensure the synchronous stability of ultra long distance multi station. This machine is suitable for: capsule, tablet, pill, medical device, light food, electronic component blister sealed packaging.

The whole machine is made of 304 stainless steel, with less land occupation, low investment, multi-function, high efficiency, no pollution and low noise.



Main features of Blister Packaging Machine​

1. Intelligent control panel with multiple functions but simple operation.

2 Smooth blowing and stable forming.

3. The mold positioning is accurate, the size of the molding mold is uniform and accurate, and the mold can be replaced according to the actual situation.

Main Parameter of Blister Packaging Machine

SPECIFICATIONS FOR Blister packing machine
Cutting Frequency A1-A1: 6-20 times/min
A1-plastic: 20-40 times/min
Max. Production Capacity A1-A1: 1200 (According to standard plate 80×57)
A1-plastic: 2400 (According to standard plate 80×57)
Max. Forming Area and Depth Al-Al: 80× 90×14
Al-plastic: 80×1 10×26 (Standard 70×90×14)
Travel Range 20-100 (Can be manufactured as user's requirements)
Air Pressure 0.4-0.6
Standard Plate 80×57 (Can be manufacturer red as user's requirements)
Total Power 380V/220V 50Hz 1.8kw
Main Motor Power 0.75
PVC Rigid Sheet 0.15-0.5×80
PTP Aluminum Foil 0.02-0.035×80
Dialysis Paper 50-100g×80
Mould Cooling Tap Water or Circulating Water
Overall Dimensions 1400×460×950(L×W×H)
Weight 450

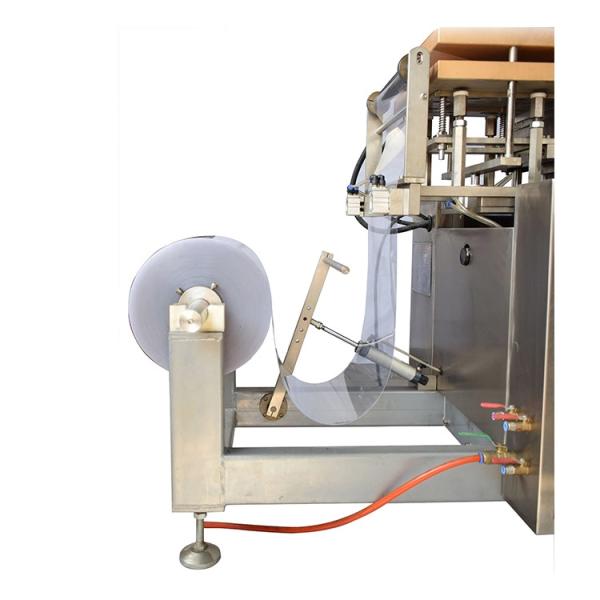

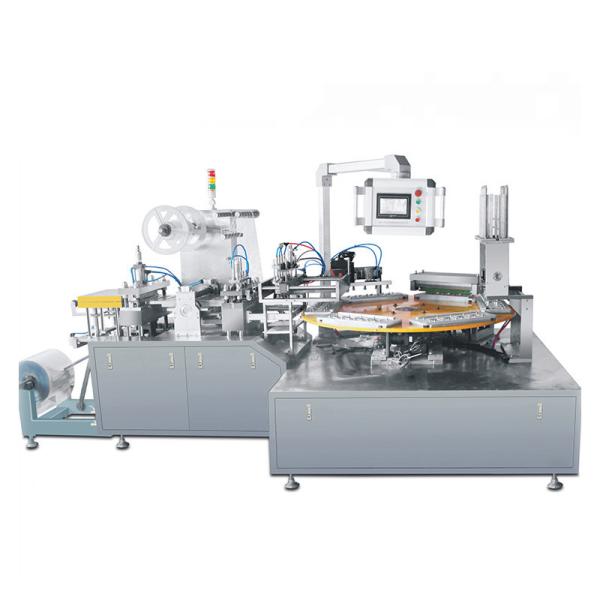

Product Show of Blister Packaging Machine

Application of Blister Packaging Machine​

Electric Customizable Alu Alu Blister Packing Machine
