Ointment Facial Mask Intelligence Automatic Cartoning Machine
Ointment Facial Mask Intelligence Automatic Cartoning Machine
Ointment Facial Mask Intelligence Automatic Cartoning Machine
Ointment Facial Mask Intelligence Automatic Cartoning Machine
Specifications
Brand Name :
SED-Pharma
Model Number :
800GS
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
35 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Ointment Facial Mask Intelligence Automatic Cartoning Machine
Encasing speed :
30-100 boxes /min
Power supply :
220V 50HZ
Main motor power :
0.75kw
Machine dimension(L× W× H) :
3100mm× 1100mm× 1550mm
Machine weight :
1400kg
material :
stainless steel
key word :
Automatic Cartoning Machine
Description

Product Description of Cartoner Machine

This equipment is new model developping base on integrated domestic and foreign vanguard technology.

It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.


This machine is suitable for blister package product, adjust automatic feeding structure conveniently, setup quantity of blisters on touch screen randomly.

On line product feeding and detecting, leaflet fold(1-4folds) and feeding, leaflet detecting, Canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.

Product Parameters of Cartoner Machine

Item Parameters
Encasing speed 30-100 boxes /min
Box Quality requirement 250-350g/m*m[Base on carton size]
Dimension range(L× W× H) (70-180)mm× (35-85)mm× (14-50)mm
Leafle Quality requirement 60-70g/m*m
Unfolded leaflet specification (80-250)mm× (90-170)mm
Fold range [1-4]Fold
Compressed air Working pressure ≥ 0.6mpa
Air consumption 120-160L/min
Power supply 220V 50HZ
Main motor power 0.75kw
Machine dimension(L× W× H) 3100mm× 1100mm× 1550mm
Machine weight 1400kg

main Feature of Cartoner Machine

1: International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.


2: Adopt human-machine operation system.


3: Automatically stop when machine is overload.


4: Automatically reject lacking of package product and leaflet.


5: Automatically display trouble, Alarm and count finished products.


6: Stable performance, operation is easy.

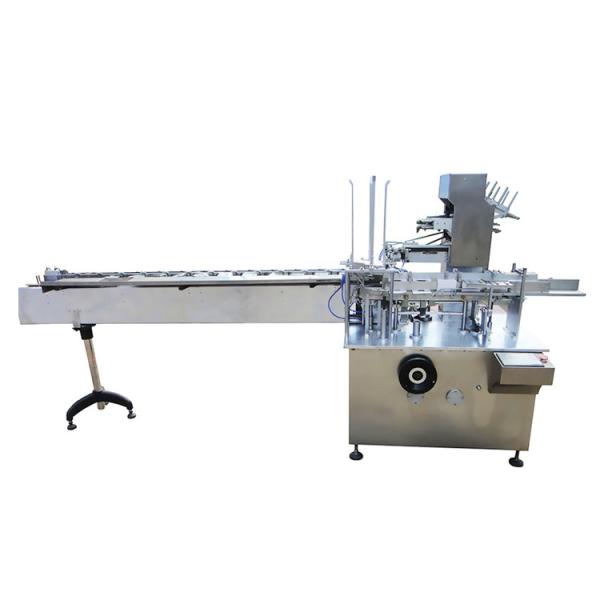

Show of Cartoner Machine

Ointment Facial Mask Intelligence Automatic Cartoning Machine

Application of Cartoner Machine

Ointment Facial Mask Intelligence Automatic Cartoning Machine

Ointment Facial Mask Intelligence Automatic Cartoning MachineOintment Facial Mask Intelligence Automatic Cartoning MachineOintment Facial Mask Intelligence Automatic Cartoning MachineOintment Facial Mask Intelligence Automatic Cartoning MachineOintment Facial Mask Intelligence Automatic Cartoning Machine
