Automatic White Sugar Thin Film Coating Machine High Efficient Low Noise

Product Overview of Coating Machine

The tablets in drum make complicated and constant track movement with easy and smooth turn frequent exchanging in a clean and closed drum of the film coating machine.

The coating mixed round in the mixing drum are sprayed on tablets through the spray gun at the Inlet un action of the peristaltic pump. Meanwhile under the action of air exhaust and negative pressure 100, 000 clean hot air supplied by the air exhaust cabinet is exhausted from the fan at the sieve meshes through tablets.

So these coating mediums on the surface of tablets get dry forming a coat of firm, fine and smooth film. The whole process is finished under the control of PLC.

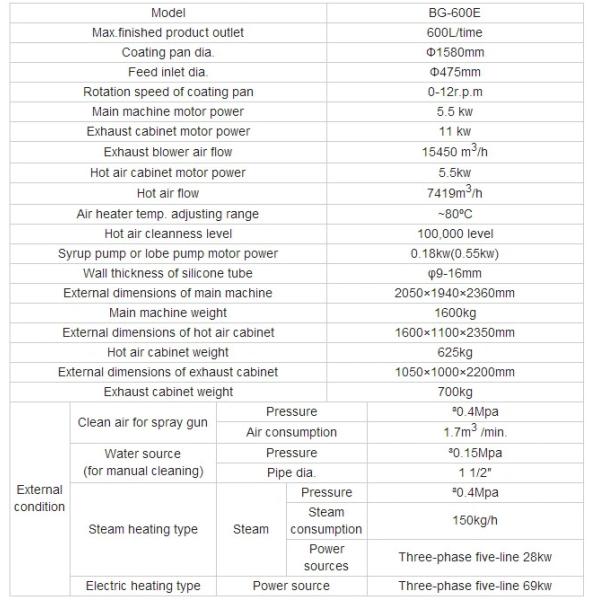

Product Parameters of Coating Machine ​

trait of Coating Machine

1. The coating boiler is equipped with a high-pressure spray gun, and a cleaning nozzle is set at the exhaust port and hot air outlet, which can automatically rotate in all directions without dead ends, making cleaning more convenient. (optional).

2. Select imported spray gun. Easy to operate, easy to master, and flexible in control process requirements. The gun head requirements must remain within the range of 0.29 Mpa to 0.39 Mpa. The angle and fan shape can be adjusted, the spray

pressure density and particles are uniform, the atomization pressure is 0.4-0.5Mpa, the phenomenon of dripping and clogging of the size is avoided, the atomization is uniform, the spray area is large, the flow adjustment is practical, no leakage and clogging, the angle and the sector .

3. The coating machine contains a large pot and small material mechanical device. The 600 type coating machine can coat at least 20~60kg of plain pills. Through its inherent mechanical adjustment, a small amount of medium bags can be made in the large pot without waste and waste. The range of use of the appliance is greatly improved.

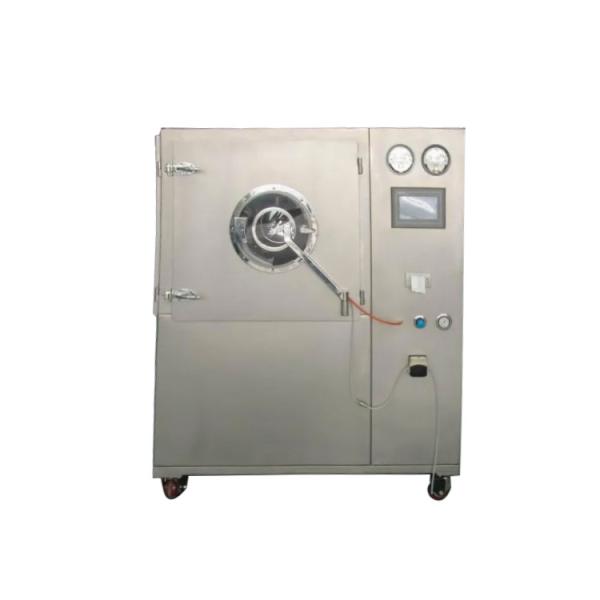

Product Show of Coating Machine ​

Application of Coating Machine

1. Polishing, polishing and rolling of spherical finished products, such as: pearl balls, chewing gum, candy. 2. Film coating of tablets, pills, etc. in the pharmaceutical industry. 3. Sugar and chocolate coating of nuts, fruits, popcorn, etc. in the food industry. 4. Powder, paint, and chemical color coating.​
