Pharmaceutical Automatic Capsule Filling Machine
Pharmaceutical Automatic Capsule Filling Machine
Pharmaceutical Automatic Capsule Filling Machine
Pharmaceutical Automatic Capsule Filling Machine
Specifications
Brand Name :
SED-Pharma
Model Number :
SED-120J-I
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
35 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Pharmaceutical Automatic Capsule Filling Machine
Model :
SED-120J-I
Capsule Size :
#00-#4
Total Power(KW) :
3
Weight(KG) :
700
key word :
Powder Capsule Filling Machine Automatic Capsule Filling Machine
Description

Pharmaceutical Automatic Capsule Filling Machine

Products Description of Capsule Filling Machine

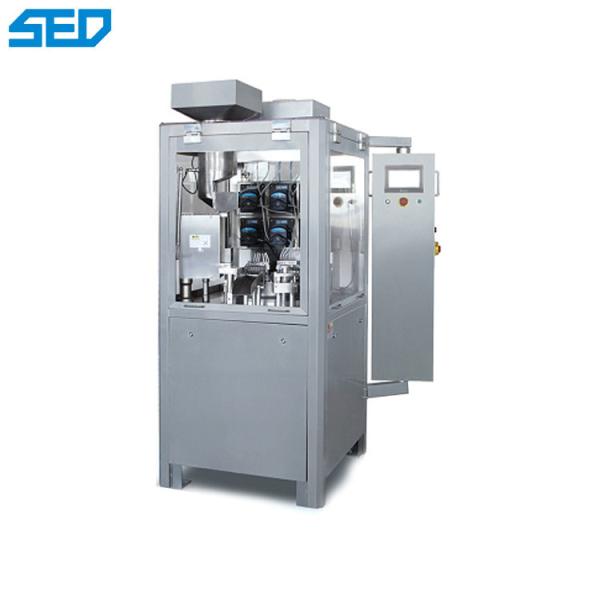

SED-120J-I Automatic Capsule Filling Machine is commonly used in the pharmaceutical, nutraceutical industries to fill empty hard gelatin capsule of various sizes with powders and pellets (optional).
The capsule filler automatically orientates, opens the empty hard gelatin capsule, properly fills the capsule with powder, and automatically closes the capsules. Spare part contact with medicine adopt superior SS 304 & GMP compliable material, which comply to GMP requirements completely.

Technical Parameters

Model SED-120J-I
Machine Weight 140kg
Overall Dimension 730 × 700 × 1500mm
Motor Power 0.7kw
Power Supply AC 220V, 50Hz
Capacity 7200 capsules/h
Capsule Size 00#～5# and safety capsule A～E
Capsule Using Rate ≥ 99.5%
Working Noise ≤ 75dBA
Dosage Difference ≤ ±3% (under more than 300mg dosing and 40~80 mesh after granulation)
Vacuum Degree -0.02～-0.06MPa

Compressed Air

(for cleaning station)

Air consumption ≥ 8m3/h

Pressure: 0.4~0.6MPa
Working Temperature 21℃ ± 3℃
Working Relative Humidity 40～55%
Exhaust Capacity 50m3/h
Control System Frequency conversion speed regulation

Trait of Capsule Filling Machine

1. Small volume,low consumption of energy,simplification in changing modules.Easy operating and cleaning.

2. Adopt Fugexan eliminating Ma's trough roller to transmit,less vibration,its noise is lower than 75dB while running at top speed.Dose difference is controlled within ±3%.The rate of capsule filling is>99%.

3. The turning-around parts are in full closure,having excellent lubricating conditions.Without old spot on the working bench,avoiding the cross pollution with medicines.Around the dosage disk are fixed with shelter,which can reduce the medicine powder cast from under the dish through another pipe.

4. Meanwhile, it can reduce the dust on the surface of the bench.

Pharmaceutical Automatic Capsule Filling MachinePharmaceutical Automatic Capsule Filling Machine

Pharmaceutical Automatic Capsule Filling Machine

Application of Capsule Filling Machine

Pharmaceutical Automatic Capsule Filling Machine
