Fully Automatic Laboratory Hard Gelatin Pill Capsule Maker Filling Equipment
Fully Automatic Laboratory Hard Gelatin Pill Capsule Maker Filling Equipment
Fully Automatic Laboratory Hard Gelatin Pill Capsule Maker Filling Equipment
Fully Automatic Laboratory Hard Gelatin Pill Capsule Maker Filling Equipment
Fully Automatic Laboratory Hard Gelatin Pill Capsule Maker Filling Equipment
Fully Automatic Laboratory Hard Gelatin Pill Capsule Maker Filling Equipment
Specifications
Brand Name :
SED-Pharma
Model Number :
SED-2000J-H
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
35 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Fully Automatic Laboratory Hard Gelatin Pill Capsule Maker Filling Equipment
Model :
SED-2000J-H
Productivity :
2000 capsules/min
Size of capsule :
2000 capsules/min
Total Power :
6.97KW
Power Supply :
380V 50Hz 3P
Filling Variation :
±3% - ±4%
Noise :
≤75dB(A)
Description

Fully Automatic Laboratory Hard Gelatin Pill Capsule Maker Filling Equipment

Product Description of Capsule Filling Machine

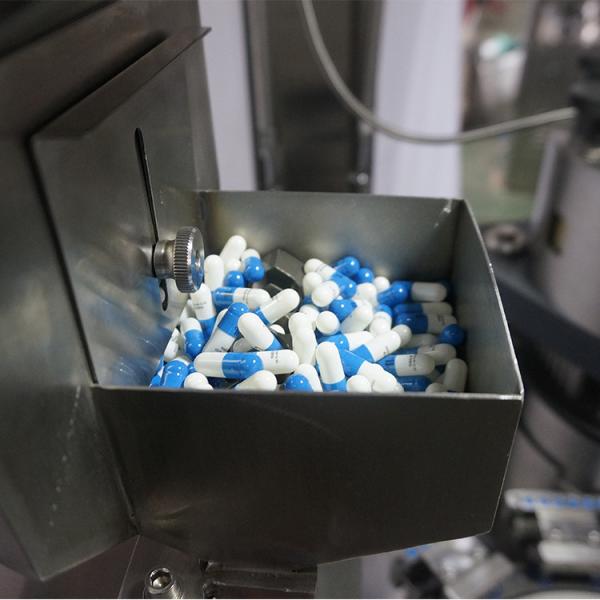

SED-2000J-H Automatic Capsule Filling Machine is commonly used in the pharmaceutical, nutraceutical industries to fill empty hard gelatin capsule of various sizes with powders and pellets (optional). The capsule filler automatically orientates, opens the empty hard gelatin capsule, properly fills the capsule with powder, and automatically closes the capsules.

Parameter of Capsule Filling Machine

Model SED-2000J-H
Capacity 2000 capsules/min
Filling Material Powder, Granules
Die Hole Number 18
Power Supply 380V 50Hz 3P
Total Power 6.97KW
Application 00#-4# capsule
Filling Variation ±3% - ±4%
Noise ≤75dB(A)
Qualified Rate ≥99.5%
Overall Dimension 1200mm (L) x 1050mm(W) x 2100mm(H)
Weight 1300kg

Features

1.The internal design of the mold turntable is improved, and the original Japanese linear bearing is used to ensure the accuracy and service life of the equipment.
2.The design of underslung cam and pressure atomizing oil pump reduces wear and prolong the service life of parts.
3.Adopt PLC control, stepless frequency conversion speed regulation, and touch screen display, ensuring convenient and intuitive operation.
4.Based on the lower plane of the dosage plate, three-dimensional adjustment and uniform gap, the filling accuracy can be effectively ensured, and it is very convenient for cleaning.
5.Equipped with a safety protection device for man and machine, and an automatic stop device for lack of material, so that the machine runs smoothly, safely and reliably.

Product Details of Capsule Filling Machine

Fully Automatic Laboratory Hard Gelatin Pill Capsule Maker Filling EquipmentFully Automatic Laboratory Hard Gelatin Pill Capsule Maker Filling EquipmentFully Automatic Laboratory Hard Gelatin Pill Capsule Maker Filling Equipment

Application of Capsule Filling Machine

Fully Automatic Laboratory Hard Gelatin Pill Capsule Maker Filling Equipment
