Small Glass Ampoule Filling And Sealing Machine For Pharmaceutical
Small Glass Ampoule Filling And Sealing Machine For Pharmaceutical
Specifications
Brand Name :
SED Pharma
Model Number :
SED-4AGL-2-C
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
30 Sets Per Month
Delivery Time :
35 days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Small Glass Ampoule Filling And Sealing Machine For Pharmaceutical
Filling volume :
1-2ml
Power :
0.75kw
Production capacity :
6000-8000 bottles/hour
Overall Dimension :
1600*1100*1300mm
Oxygen consumption :
2-3m/h
material :
stainless steel
key word :
Ampoule Filling And Sealing Machine
Description

Small Glass Ampoule Filling And Sealing Machine For Pharmaceutical

Product Description of Ampoule Filling And Sealing Machine

This machine is a two-position step-by-step transmission system. Two bottles are used as a group at a time, and they are sent to each point separately to complete the separation and delivery of bottles. The machine consists pre-filling with nitrogen, material filling, filling with nitrogen, preheating, sealing and other processes.

Main Parameter of Ampoule Filling And Sealing Machine

Model SED-4AGL-2-C
Dimension 1300*700*1300mm
Motor Power 0.75kw
Power supply 220V/380V 50/60HZ 3phase
Production capacity 6000-8000 bottles/hour
Filling volume 1-2ml
Material Stainless steel 304

Main Features of Ampoule Filling And Sealing Machine

1.The ampoule bottle's feeding can be stopped while the machine is not stopped.

2.The filling can be stopped mechanically when lack of ampoule bottle.

3.There is the adjusting and displaying function for the rotating speed.

4.There are many filling heads in the filling stations.

5.Besides liquid, compressed air or nitrogen can be simultaneously filled from the front and the back.

6.Ampoule bottles' moving in/out is smooth and steady during the production.

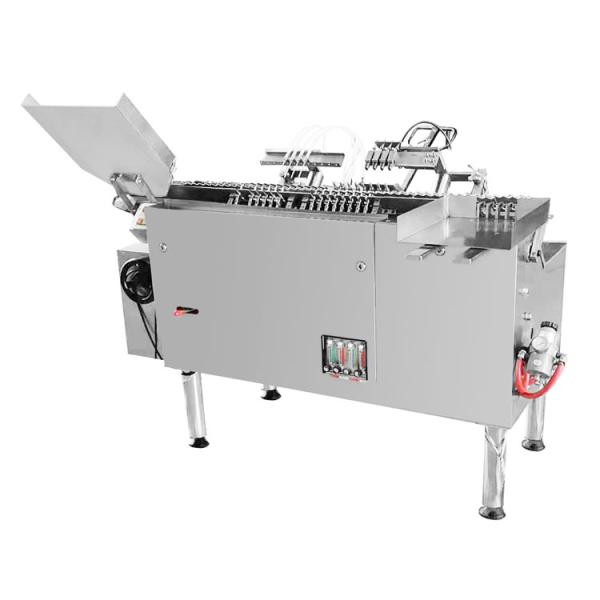

Product Show of Ampoule Filling And Sealing Machine

Small Glass Ampoule Filling And Sealing Machine For Pharmaceutical

Application of Ampoule Filling And Sealing Machine

It is suitable for small sample trial production in the pharmaceutical industry, can make filling and sealing of ampoules under aseptic conditions.

Small Glass Ampoule Filling And Sealing Machine For Pharmaceutical

Small Glass Ampoule Filling And Sealing Machine For PharmaceuticalSmall Glass Ampoule Filling And Sealing Machine For PharmaceuticalSmall Glass Ampoule Filling And Sealing Machine For PharmaceuticalSmall Glass Ampoule Filling And Sealing Machine For PharmaceuticalSmall Glass Ampoule Filling And Sealing Machine For Pharmaceutical
