DPB-140P Plastic Candy Blister Packing Machine
DPB-140P Plastic Candy Blister Packing Machine
Specifications
Place of Origin :
China
Brand Name :
Royal
Certification :
CE
Model Number :
DPB-140P
MOQ :
1 Set
Price :
USD11700~15200
Packaging Details :
Export standard wooden carton package
Delivery Time :
30 days after receiving the deposit
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20 Set/Sets per Month
Description

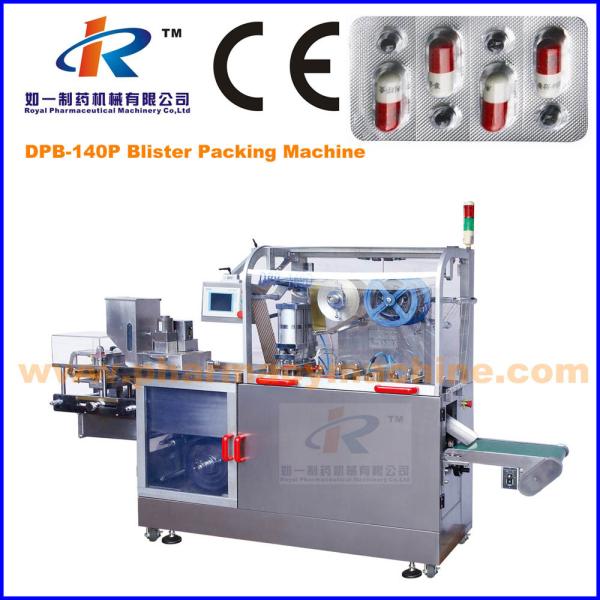

DPB-140P Plastic Candy Blister Packing Machine

Product Name

Plastic Candy Blister Packing Machine

Product model

DPB-140P

Product specify

DPB-140P plastic candy blister packing machine is suitable for capsule, tablet, big honey pill, candy, liquid, paste, one injector as well as irregular shape Al-plastic, paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.

Instruction and features:

DPB-140P plastic candy blister packing machine is the latest and high automation product designed for middle and small sized pharmacy factory, healthcare factory and preparation-room of hospital, especially for those who need small batches product but many kinds. The machine is adopted with PLC, frequency converter and touch screen operation. It can automatically finish the processed of feeding, forming, heat-sealing, pressing, batch number printing, punching and so on. It is the ideal packing equipment with convenience operation, full purpose function. The product passed the provincial science and technology appraisal.

It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Aluminum-plastic or paper-plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.

Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.

Spare parts as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and it is easy to change moulds.

With manipulator towing and adjustable travel range, it can be suited for blister packaging of various sizes.

Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.


Notes:
·Eye marking sealing device with sensor trace can be added for option.

Main technical parameters:

Cutting Frequency (Times/min)

6-50

Production Capacity (pcs/h)

20000-110000

Max. Forming Area And Depth (mm)

130*130*26 (Standard Depth 14mm)

Travel Range (mm)

40-140 (Can be lengthened to 160mm according to user's requirements)

Standard Plate (mm)

80*57 (Can be manufactured as user's requirements)

Air Pressure (Mpa)

0.4-0.6

Air Supply

≥0.2m3/min

Total Power

380V/220V 50Hz 3.6KW

Main Motor Power (KW)

0.75

PVC Hard Pieces (mm)

0.15-0.5*140

PTP Aluminum Foil (mm)

0.02-0.035*140

Dialysis Paper (mm)

50-100g*140

Mould Cooling

Tap Water Or Circulating Water

Overall Dimensions (mm)

2300*560*1410(L*W*H)

Weight (kg)

750
