SS Stainless Steel Water Filter Housing Ro Membrane Housing
SS Stainless Steel Water Filter Housing Ro Membrane Housing
SS Stainless Steel Water Filter Housing Ro Membrane Housing
SS Stainless Steel Water Filter Housing Ro Membrane Housing
SS Stainless Steel Water Filter Housing Ro Membrane Housing
SS Stainless Steel Water Filter Housing Ro Membrane Housing
SS Stainless Steel Water Filter Housing Ro Membrane Housing
SS Stainless Steel Water Filter Housing Ro Membrane Housing
SS Stainless Steel Water Filter Housing Ro Membrane Housing
SS Stainless Steel Water Filter Housing Ro Membrane Housing
SS Stainless Steel Water Filter Housing Ro Membrane Housing
SS Stainless Steel Water Filter Housing Ro Membrane Housing
SS Stainless Steel Water Filter Housing Ro Membrane Housing
SS Stainless Steel Water Filter Housing Ro Membrane Housing
SS Stainless Steel Water Filter Housing Ro Membrane Housing
SS Stainless Steel Water Filter Housing Ro Membrane Housing
Specifications
Brand Name :
CHONGYANG
Model Number :
CY-GLQ-2000
Certification :
ISO,CE
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 Sets/Month
Delivery Time :
With 30-40 Days
Packaging Details :
According to export standard
Product Name :
Mechanical Filter
Application :
Pharmaceuticals
Material :
Sus304/316L, Carbon Steel
Quality :
ISO 9001:2008
Description

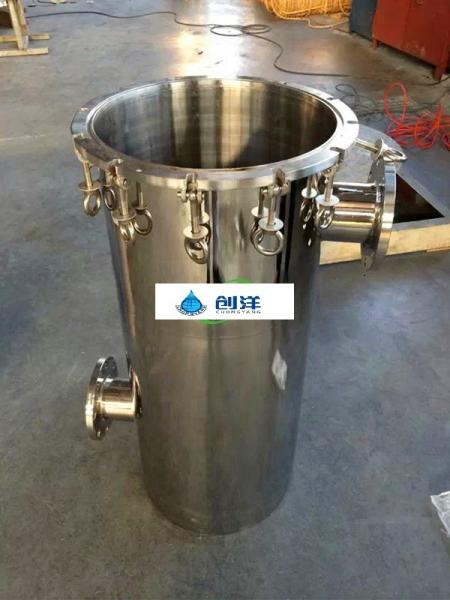

Product Name:The stainless steel (S.S.) filter housing

The Product Profile :

Commonly used wound filter and meltblown filter

Wound filter (also known as honeycomb filter), there are two types: one is polyp

ropylene fiber - polypropylene skeleton filtration, the maximum temperature 60 ℃; the other is cotton fiber - stainless steel frame filter, the maximum temperature 120 ℃.

Raw material of meltblown filter is polypropylene, the maximum operating temperature is 60 ℃. Sophisticated filters can remove suspended solids, colloidal substances and some fine particulate matter and so on.

Parameter of Cartridge filter:

Working pressure: 0.6 / 1.0 / 1.6Mpa
Body Material: Stainless steel (SUS304, SUS304L, SUS316, SUS316L).
Operating temperature: 5 ~ 40 ℃ (exceed 60 ℃ to be informed)
Design temperature: 5 ℃ -100 ℃
Replace the pressure: 0.05Mpa-0.07MPA
Filter interface: flat compression, plug-in
Cylinder and base connection mode: quick opening, flanged
Filtration accuracy: 1μm ~ 100μm
Cartridge Quantity: 1 core to 180 cores
Filter Length: 10 "~ 40"
Seal type: O-ring or flat washer
Seal Material: PTFE, rubber.
Outside treating : matte jet beads, mirror electrolytic polishing.
Sealing material: nitrile rubber, silicone, Viton, standard configuration for the silicone seal.
Interface Type: GB, HG, DIN, ANSI, JIS standard flanges, dental mouth, clamps and so on.
Flange Standard: GB, HG, SH, HGJ, JB, ANSL, JIS and other standards. (User-specified, please indicate the pressure level)
Manufacturing, testing standard: GB150 standard, or user-specified criteria.

SS Stainless Steel Water Filter Housing Ro Membrane Housing

SS Stainless Steel Water Filter Housing Ro Membrane Housing


FAQ:

1.Question:Can you customize various capacity for us ?
Answer:Yes. We can customize for you .

2. Question: What is the raw water quality ?
Answer: Tap water, Underground Water ,it is better to be water quality that under TDS 400 PPM.

3.Question:How to install the big project of water treatment equipment ?
Answer : CHONGYANG Provide turnkey projects .

4. Question: How long is the warranty period ?
Answer: 1 year.

5. Question:How to settle water equipment's faults ?
Answer :CHONGYANG WATER can provide remotely repair for software , Change new parts without fee for hardware if it is till during guarantee period .
