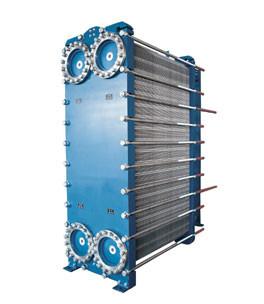

High quality steel carton frame AISI 316 plate type HRSB industry gasket plate heat exchanger factory directly wholesale

Plates and Gaskets have many kinds of material for your choose.

SONDEX A/S has the most standard plate heat exchanger in the world, and every year it has a new standard of heat exchanger. At present, there are 24 series of SONDEX plate heat exchangers, more than 40 specifications, nearly 100 kinds of plates, and the size of the corner holes from DN15-DN500 (the world's largest), which can meet the requirements of the 0.05t/h-2000t/h ultra large flow range. In addition to plate heat exchangers, SONDEX also produces brazed heat exchangers, semi welded heat exchangers, free flow heat exchangers, plate and shell heat exchangers, seawater desalination machines, etc.
The heat exchangers of the same angle hole size and width in the SONDEX series plate heat exchangers have 3-6 different height types. Because the angle hole position and the length width ratio of the plate heat exchanger will affect the flow of the interplate fluid and thus affect the heat transfer, the different length and width ratio of the plate of SONDEX can meet the working conditions of different heat length requirements. . (thermal length theta) is the ratio of the temperature difference between the inlet and outlet of the heat transfer medium and the logarithmic mean temperature difference of the heat transfer medium under the working condition. It is an important parameter to react the performance of the heat exchanger, that is, the ability to change the temperature of the heat transfer medium.
SONDEX is also designed to make the same shape and size, only the twin plate with different corrugation depth, such as S41 and S42, two types of SONDEX heat exchangers, the shape and angle hole size are exactly the same, but the S41 heat exchanger channel width 5.4mm, S42 heat exchanger channel width 6.9mm. The wide channel is more suitable for the condition of uneven flow of fibers, particles or high viscosity medium and cold and hot medium. Because of the wide and narrow channel heat exchanger, the SONDEX plate heat exchanger can be designed to obtain the best inter plate flow rate, so as to achieve good heat transfer effect.
The rich tablet makes it easy for SONDEX to provide users with the best solution. For the same working conditions, the SONDEX plate heat exchanger has higher thermal efficiency. The required heat transfer area is more economical. This will not only save the investment, but also can easily obtain more reasonable inter plate velocity, thus reducing the corrosion and scaling speed of the plate, and prolonging the service life of the plate heat exchanger.
SONDEX each type of plate has been carefully designed and rigorously tested.
The plates of each specification are divided into two types: TL and TK, which have high heat transfer efficiency, high fluid resistance, low heat transfer efficiency and less fluid resistance. The channel of the plate heat exchanger can be a single soft plate channel, hard plate passageway, soft and hard plate passageway can also be the mixture of the aforementioned passageways. The optimal design of heat exchanger is achieved by the ratio of scientific passages.

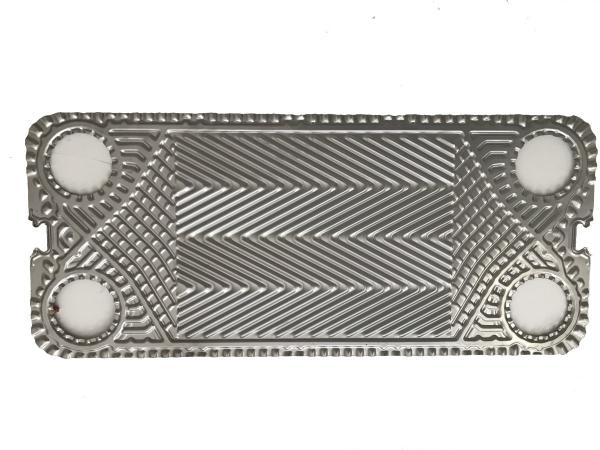

The same side flow is used in the SONDEX plate heat exchangers, because the design of the diversion area is adopted at the entrance and exit of the plate, that is, the groove design of the chocolate island shaped area at the outlet of the corner hole. The common linear guide slot only distributes the uniform distribution of one side fluid, and the design of the chocolate Island groove can balance the difference of flow resistance on the flow channels, making the fluid in each part of the plate relatively uniform distribution state, even the wider plate can make the fluid evenly distributed between the plates. It fundamentally improves the traditional same side flow plate heat exchanger, which is caused by the difference in the distribution of fluid in the interplate and the flow dead angle, and the decrease of heat transfer efficiency. In addition, the area of the diversion area is also involved in heat exchange at the same time, and the heat transfer area of the SONDEX plate heat exchanger is improved. Margin;
As the design of the chocolate Island diversion area is designed to ensure that the fluid is evenly distributed between the plates, SONDEX uses the same side diagonal flow, which is more convenient for the user to take over.
The international advanced design and production processes make SONDEX plate heat exchangers the best cost-effective products.
All of the global SONDEX plate heat exchangers are from the Danish SONDEX plant 6 hydraulic press, one of which is 20000T, the largest hydraulic press in Europe, which is specially used to process large plates above DN400. Due to the large capacity of press and advanced stamping technology, every SODNEX sheet pressed into it is very smooth without any stress and deformation. The surface roughness of the sheet sheet is the same as that of the original sheet, and it has high quality uniformity. The SONDEX sheet completely meets the requirements of the plate quality of the food hygiene industry. The friction resistance of the fluid is reduced, the scaling is not easy, and the pitting is not easy to occur. It ensures the stable and efficient operation of the SONDEX heat exchanger.
The SONDEX plate heat exchanger adopts the SONDER LOCK button type non adhesive gasket as the main seal. Compared with the adhesive gaskets, the non adhesive gaskets have the advantages of easy installation and disassembly, repeated use and long service life. This kind of buckle connection designed by SONDEX is that a row of protruding buckle structure evenly distributed on the gasket and the small hole in the corresponding position on the plate, ensures that the gasket will not fall off during the installation or use of the sheet. The positioning part of the buckle gasket is not in contact with the fluid in the heat exchanger, so that the positioning hook of the hanging gasket is avoided by contact with the fluid.

HRSB is ourself brand,we are specilized in Industry Gasket Plate heat exchanger manuturing more than 10 years.

We also have FP series,SB series,SF series ETC

Features: Compact structure, small area, good heat transfer effect, small pressure drop, a variety of fillers, good corrosion resistance, especially in the treatment of foamy materials and vacuum operation, has its unique advantages.
Advantages: high heat transfer efficiency, large logarithmic temperature difference, light weight, small area, convenient cleaning, and easy to change the heat area or process combination, suitable for heat transfer in multiple media.

Application: Widely used in the petroleum industry, power station, solar photovoltaic, electronics industry, papermaking industry, textile industry, chemical industry, marine and engine, HVAC, food industry, edible oil processing, metallurgical industry and so on.

Role: Heat exchanger is a device that transmits heat from a hot fluid to a cold fluid, also known as a heat exchanger. Its main function is to guarantee the specific temperature required by the process for the medium.
It can transfer heat between materials between two or more fluids at different temperatures, transfer heat from a higher temperature fluid to a lower temperature fluid, and bring the fluid temperature to meet the flow specifications to meet the needs of the process conditions., At the same time, heat exchanger is also one of the main equipment to improve energy efficiency.

How to purchase:

1.Please send me your basic reference temperature (inlet/outlet)of the heat exchanger first side and the heat exchanger second side which temperatue can may meet your requirement.Also please tell the mass flow rate

2.If you dont know the above NO1, please send me your connection size (DN) and max surface with your mass flow rate of the heat exchanger two side.

3.After get your inquiry,we will comfirm which model suitable for you.

4.Comfirm the material of the Plate and Gasket

5.Discuss the price

6.Make the deal
